TIR-P4344V-B

Capture every detail with Eyemax TIR-P4344V-B EX-SDI HD-SDI 4Megapixel Outdoor IR Bullet Camera. IP68 waterproof, 8 COB IR, and advanced features for clear footage.

TIR-P4344V-B

In stock

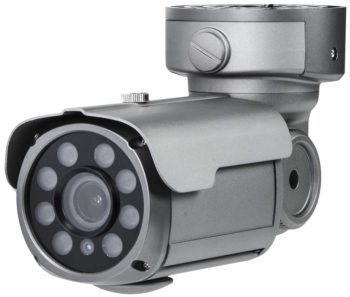

Eyemax TIR-P4344V-B HD-SDI 4 Megapixel Outdoor IR Bullet Camera with VariFocal Lens, 8 COB IR, IP68, Dual Power

  • 1/2.9 inch SONY CMOS (IMX-326)
  • Upgraded Waterproof Housing (IP 68 rating)
  • High Definition Serial Digital Interface (HD-SDI)
  • 0 Lux at IR On (IR08)
  • WDR (Wide Dynamic Range)
  • DNR (Digital Noise Reduction)
  • Day & Night
  • ICR V/F lens, DC Auto IRIS V/F lens, DC Auto IRIS & TDN V/F lens
  • Focal Length: 2.8~12mm
Eyemax Logo

This product is no longer available.

Description

Introducing the Eyemax TIR-P4344V-B EX-SDI 4MP Outdoor IR Bullet Camera, the ultimate surveillance tool for your outdoor security needs. This camera has a 4-megapixel resolution and a Varifocal lens with a focal length of 2.8 mm. The camera also features a 1/2.9” SONY CMOS (IMX-326) sensor, ensuring that every detail is captured with exceptional clarity.

One of the most impressive features of the Eyemax TIR-P4344V-B is its upgraded waterproof housing, with an IP68 rating. This means that the camera is safe from dust and can be used in any weather. Whether it’s rain, snow, or extreme temperatures, this camera can withstand it all, ensuring reliable and continuous surveillance.

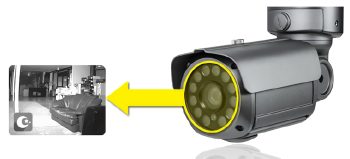

The camera has 8 LEDs that shine in the infrared. This helps it see well even when it’s completely dark. It is easy to set up and use various systems with the dual power feature. This camera is truly a versatile and effective solution for any outdoor surveillance needs.

Pictures look great in any light thanks to advanced features such as a wide dynamic range and digital noise reduction. The Day and Night ICR (Infrared Cut Filter Removal) function automatically adjusts the camera’s settings to capture the best possible images, whether it’s day or night. With these advanced technologies, you can feel confident that your surveillance footage will always be clear and detailed.

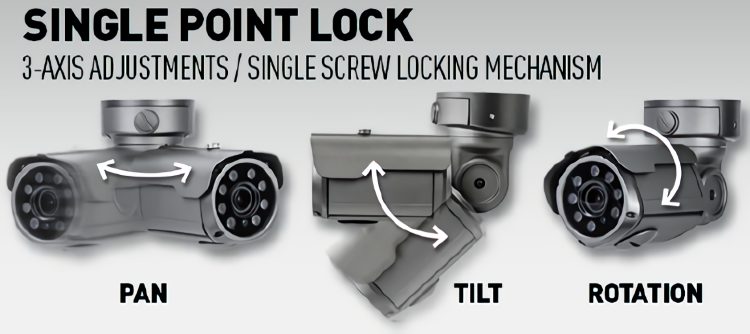

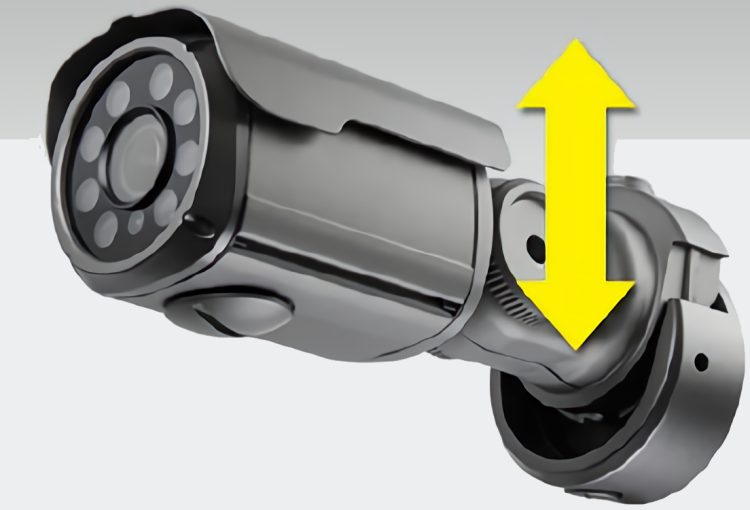

Designed for ease of use and long-lasting performance, the Eyemax TIR-P4344V-B is the perfect choice for all your outdoor surveillance needs. The camera’s DC Auto IRIS and TDN (True Day/Night) Varifocal lens provide crystal-clear images, while the 360-degree swivel base allows for flexible positioning. With this camera, you can rest assured that your property is under constant protection, day and night. Upgrade your surveillance system with the Eyemax TIR-P4344V-B and experience unparalleled peace of mind.

Datasheet

Download

Capture every detail with Eyemax TIR-P4344V-B EX-SDI HD-SDI 4Megapixel Outdoor IR Bullet Camera. IP68 waterproof, 8 COB IR, and advanced features for clear footage Datasheet.

Resolution1440P, 1080P, 720P
Sensor1/2.8 inch SONY CMOS (IMX-335)
Total Pixels2704(H) × 2104(V) = 5.69M
Effective Pixels2616(H) × 1964(V) = 5.14M
Scanning SystemPROGRESSIVE
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputTVI, CVBS: 1.0Vp-p (75ohm)
Min.Illumination0 Lux at IR On
White BalanceAUTO / AUTO EXT / PRESET / MANUAL

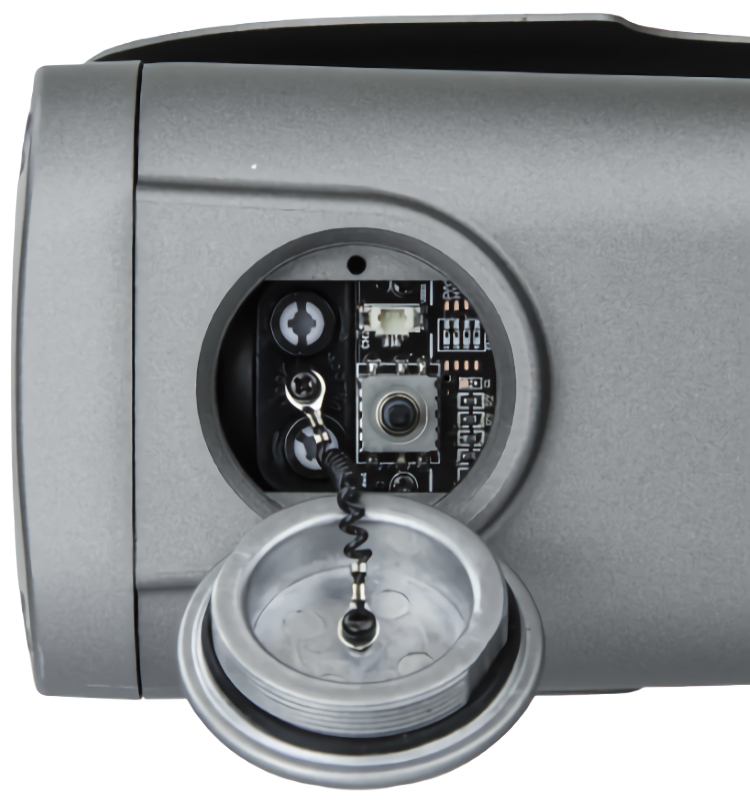

OSD Options
Electronic shutter speedAUTO / MANUAL (1/30 sec ~ 1/30,000 sec) / FLICKER
BrightnessADJUSTABLE (0 ~ 20 STEP)
Sense-UPOFF / ×2 ~ 32
DNROFF / LOW / MIDDLE / HIGH
BACKLIGHTOFF / WDR / BLC / HLC
AceOFF / LOW / MIDDLE / HIGH<
Day & NightAUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN, EXTERN2
PRIVACY / MOTION / FLIP / MIRROR / DEFOGOFF / ON
LanguageENG, CHN, CHN(S), JPN, KOR
SharpnessADJUSTABLE (0 ~ 10 STEP)
COMM.RS-485 (PELCO-D)
Smart IRADJUSTABLE (0 ~ 20 STEP)
Temperature/HumidityOperating 14°F (-10°C) ~ 122°F (50°C) / 30% ~ 80% RH
Storage: -4°F (-20°C) ~ 140°F (60°C) / 20% ~ 90% RH
PowerAC24V / DC12V Dual Power

Additional information

Weight4 lbs
Dimensions14 × 7 × 7 in
