UVI-P4542V

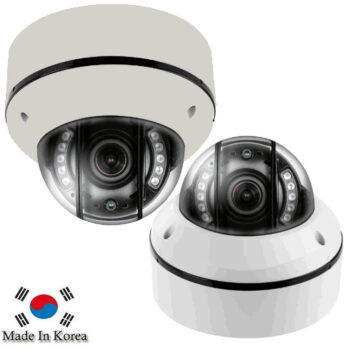

Protect your property with the Eyemax UVI-P4542V dome security camera. Featuring 4.2MP Ultra HD video, a waterproof and vandal-resistant design, and advanced IR technology for clear footage day and night. Available in Ivory or White. Order now!

UVI-P4542V

In stock

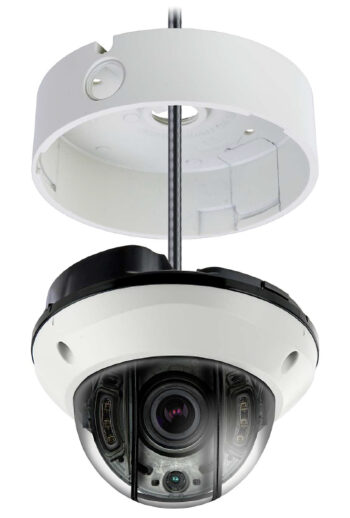

Anti-IR Reflection 4MP EX-SDI/HD-SDI STORM® IR IP68 Vandal-Resistant Dome Camera with VariFocal Lens, True WDR, L-size, DC 12V

  • 1/2.9 inch SONY CMOS (IMX-326)
  • Upgraded Waterproof Housing (IP 68 rating)
  • High Definition Serial Digital Interface
  • 0 Lux at IR On (IR04)
  • Digital WDR (Wide Dynamic Range)
  • DNR (Digital Noise Reduction)
  • Day and Night (ICR Option)
  • ICR Varifocal Lens
  • DC Auto IRIS Varifocal Lens
  • TDN Varifocal Lens
  • Focal Length 2.8~12mm
Eyemax LogoCollsam Security NDAA

This product is no longer available.

Description

The Eyemax UVI-P4542V is a top-of-the-line, high-definition security camera that is built to withstand even the toughest of environments. It is part of the STORM® series, known for its advanced features and unparalleled durability. With a 4.2 megapixel (2560 × 1440) Ultra HD video, this camera provides crystal clear surveillance footage. It ensures every detail is captured with precision.

Equipped with a 1/2.9-inch Sony CMOS (IMX-326) sensor, the Eyemax UVI-P4542V delivers exceptional image quality, even in low-light conditions. This dual-output camera supports both EX-SDI and HD-SDI. It offers flexible installation options and compatibility with a wide range of systems. The 2.8~12mm Varifocal lens with DC auto iris allows for customizable viewing angles. Therefore, it’s perfect for monitoring large spaces or zooming in on specific areas.

One of the standout features of the Eyemax UVI-P4542V is its 4 high power COB IR LEDs. They offer 0 Lux operation for clear surveillance footage even in complete darkness. This makes it an ideal choice for monitoring outdoor areas or dimly lit indoor spaces. The camera also boasts an IP68-rated waterproof (submersible) and vandal-resistant housing. Thus, it ensures it can withstand harsh weather conditions and tampering attempts.

What sets the Eyemax UVI-P4542V apart is its patented design. It eliminates IR glare caused by moisture or obstacles on the camera cover. This eliminates the issue of washout video and ensures clear and crisp footage. The camera also features True WDR Wide Dynamic Range), allowing it to adjust to high-contrast lighting environments. As a result, it captures details in both bright and dark areas of the frame.

Resolution1440P, 1080P, 720P
Sensor1/2.9 inch SONY CMOS (IMX-326)
Total Pixels3096(H) × 2218(V) = 6.87M
Scanning SystemPROGRESSIVE
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE274M (EX-SDI, HD-SDI)
Min.Illumination0 Lux at IR On
White BalanceAUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speedAUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER
BrightnessADJUSTABLE (0 ~ 20 STEP)
DNROFF / LOW / MIDDLE / HIGH
BACKLIGHTOFF / WDR / BLC / HLC
Day & NightAUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN
PRIVACY / MOTIONOFF / ON
LanguageENG, CHN, CHN(S), JPN, KOR
SharpnessADJUSTABLE (0 ~ 10 STEP)
COMM.RS-485(PELCO-D)
Temperature/HumidityOperating 14 °F ~ 122 °F / 30% ~ 80% RH

Storage -4°F ~ 140 °F / 20% ~ 90% RH

PowerDC 12V
Signal TransmissionThe distance difference occurred according to cable options and other circumstances. (based on 5C-HFBT : HD-SDI 100M / EX-SDI 500M)

Additional information

Weight3 lbs

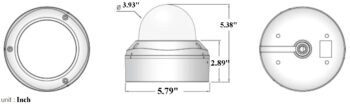

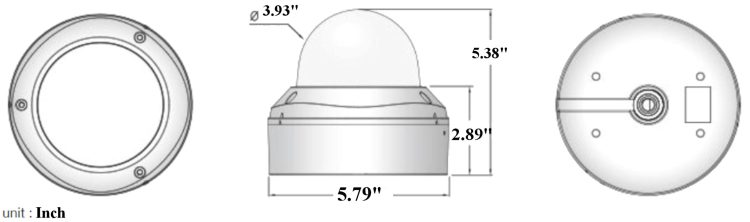

Dimensions9 × 9 × 9 in
