Description

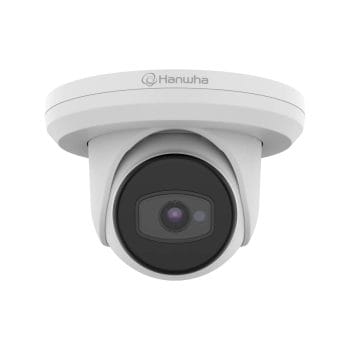

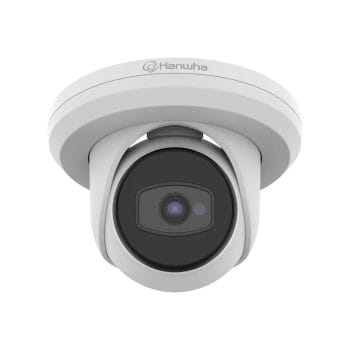

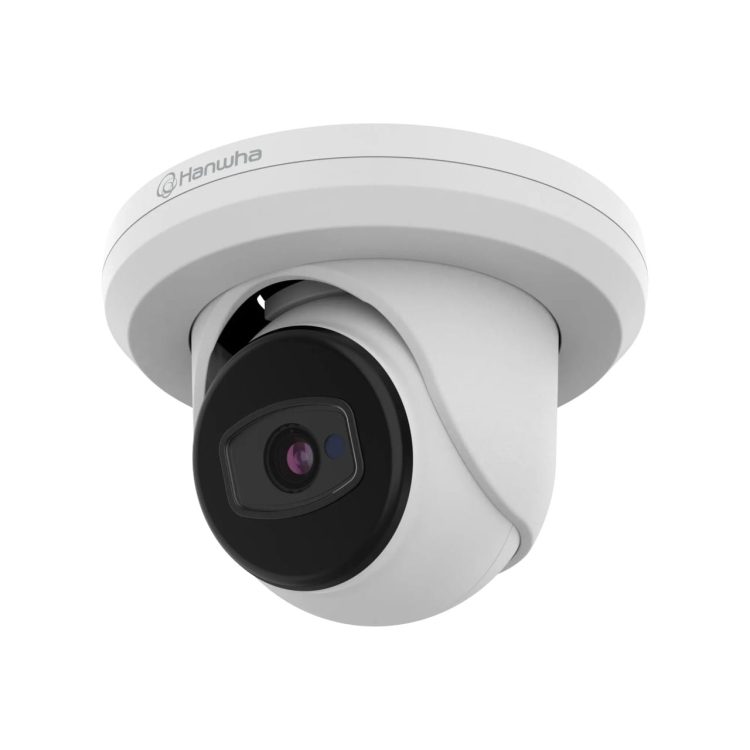

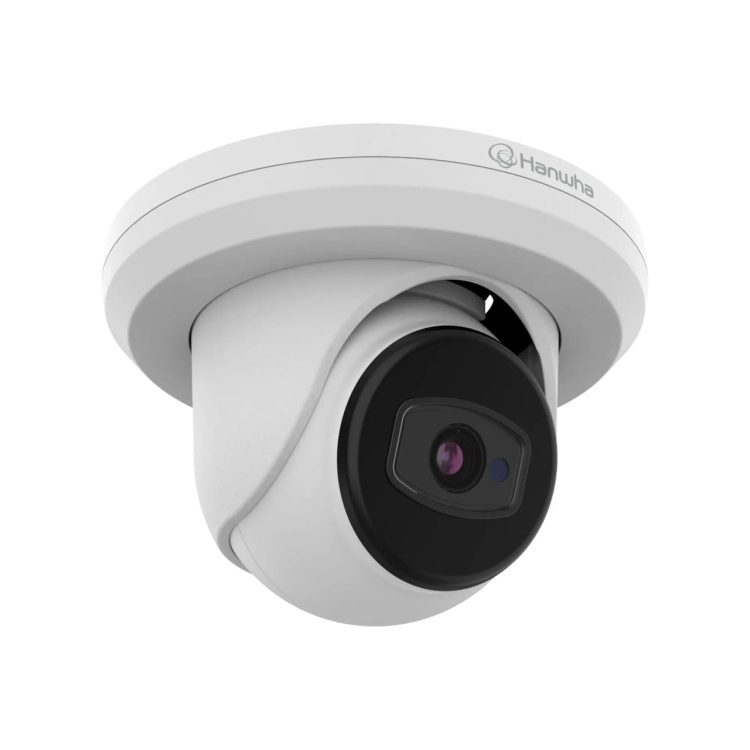

The ACE-8020R is a 5 MP analog dome camera. It gives clear video each day. This Hanwha dome camera works with AHD, TVI, CVI, and CVBS. So, it fits many coax systems. It shows 5 MP video at 30 frames per second. CVI mode works up to 4 MP. It is an infrared camera and a weather-resistant camera.
The ACE-8020R has a 3.6 mm fixed lens. Thus, it gives a broad view. The side view is 94°. The vertical view is 54°. The lens needs no zoom work. So, setup can be fast. Also, DWDR aids bright and dark views.
The ACE-8020R is an infrared camera. Its IR light can see up to 65.6 ft (20 m) at night. Then, day and night mode shifts in low light. Also, IR light can watch a door, path, or yard. So, the view can stay clear after dark.
The unit has a strong white case. It is also a weather-resistant camera. Its IP67 seal helps block dust and rain. The IK10 case guards it from hits. Thus, it uses 12 VDC power. So, it can fit many common analog sites.
The ACE-8020R can send video up to 1,640 ft (500 m). It also uses coax control. Plug-and-play setup helps save time. Thus, it can use the video mode that fits the recorder. So, it can aid a new or old coax site.
Choose the ACE-8020R when you need a 5MP analog dome camera. Its fixed lens gives a broad view. Also, this infrared camera adds a clear night view. The IP67 and IK10 case helps guard the unit. This Hanwha dome camera is a sound pick for a home, shop, or office. The weather-resistant camera can work well at a door, gate, or yard.
| Video | |
| Imaging Device | 1/2.5” CMOS |
| Resolution | 2592×1944, 2560×1440 |
| Max. Frame rate. | Max. 30 fps (@5 MP Max. 20 fps, CVI supports up to 4M) |
| Min. Illumination | Color : 0.4Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on) |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio. | F1.6 |
| Angular Field of View | H:83.9° / V:63.4° / D:104° |
| Min. Object Distance. | 2.62 ft (0.8 m) |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D + 3DNR |
| Gain Control | LOW / MIDDLE / HIGH |
| White Balance | ATW / AWC |
| Electronic Shutter Speed | AUTO(1/30~1/50,000) |
| Video Rotation | MIRROR/V-FLIP/ROTATE |
| IR Viewable Length | 20m(65.62ft) |
| Coaxial Protocol | ACP (AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-D (Coaxitron) |
| Environmental and Electrical | |
| Operating Temperature / Humidity | -22 °F (-30 °C)~ 131 °F (55 °C) / 0~90% RH |
| Storage Temperature / Humidity | -22 °F (-30 °C)~ 140 °F (60 °C) / 0~90% RH |
| Certification | IP67, IK10 |
| Input Voltage | 12VDC |
| Power Consumption | Max 5.4W, Typical 4.3W |
| Mechanical | |
| Color / Material | White / Aluminum / Plastic |
| Product Dimensions / Weight | ø 4.72 inch (11.99 cm) x 3.23 inch (8.2 cm), 0.90 lb (0.41 kg) |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
Brand
Hanwha Vision
