TIT-AC318D-OD4Z

0 out of 5

Original price was: $214.99.Current price is: $127.95.Ea.

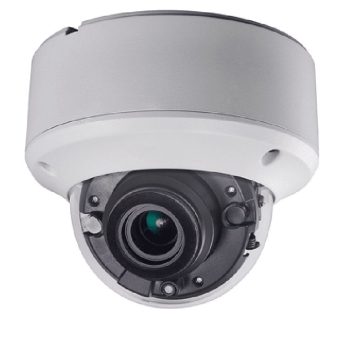

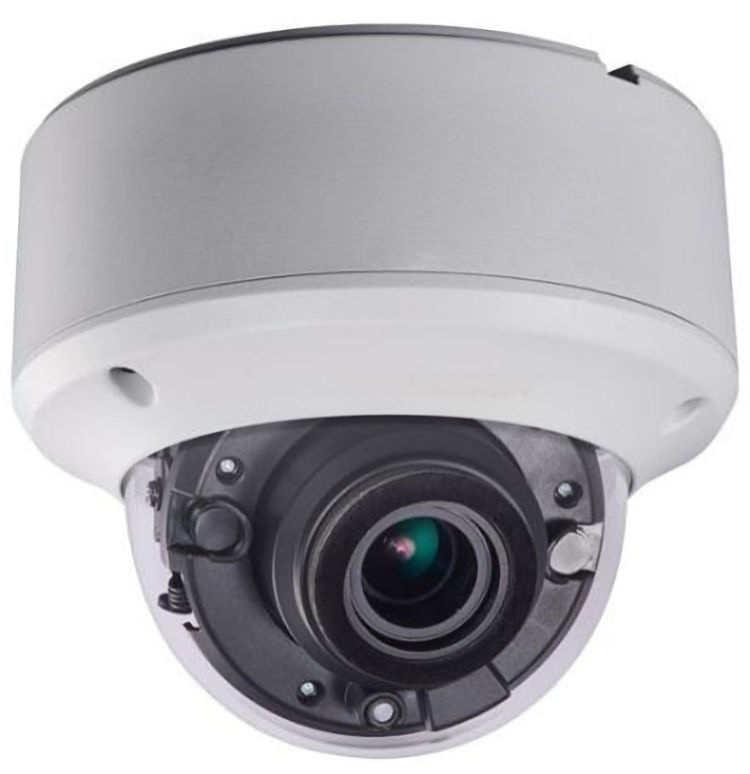

Eyemax TIT-AC318D-OD4Z 8MP (4K) 4-IN-1 HD Coax IR Dome Camera

8MP TVI, CVI Video Output
4-in-1 TVI, CVI, AHD, CVBS
True WDR
True Day/Night
2.7–13.5 mm vari-focal lens
Motorized VariFocal Len
Auto focus
3840 × 2160 resolution
2.7 mm to 13.5 mm motorized varifocal lens
EXIR 2.0, smart IR, up to 196.85 ft (60 m) IR distance
OSD menu, DNR
24 pcs IR LEDs
OSD menu, 3D DNR, Smart IR
Up to 180ft IR distance
Up the Coax (control over coax)

SKU: TIT-AC318D-OD4Z Categories: 8 Megapixel 4K HD Coaxial Cameras, HD Coaxial Cameras

Description
Product Documents
Specifications
Additional information
Collsam Brands

Description

Designed for consistent professional surveillance in both indoor and outdoor environments, the Eyemax TIT-AC318D-OD4Z is a potent 8MP 4K HD coax dome security camera. It is meant to provide flexible installation choices and outstanding image quality. Furthermore, it combines advanced imaging technology with rugged construction to meet the demands of modern security systems.

With 8MP Ultra HD resolution, this camera captures sharp, highly detailed footage at 3840 × 2160 effective pixels. That level of clarity makes it easier to identify faces, vehicles, and important scene details. This provides clear evidence when it matters most. Whether monitoring a business entrance, parking area, warehouse, or perimeter, the TIT-AC318D-OD4Z offers the precision needed for reliable security coverage.

A standout feature of this camera is its 2.7mm to 13.5mm motorized vari-focal lens with autofocus. It allows you to adjust the field of view from a wide 108.1° angle to a tighter 45.6° telephoto view. You thus have more control over the covered area. The motorized zoom makes setup easier and more efficient. At the same time, auto-focus helps maintain crisp image quality across different distances.

The camera also offers excellent compatibility thanks to its 4-in-1 switchable video output. Supporting TVI, CVI, AHD, and legacy CVBS analog formats, it integrates smoothly with a wide range of existing security systems. This versatility makes it an ideal choice for upgrades, retrofits, or mixed-format installations where flexibility is essential.

For nighttime performance, the TIT-AC318D-OD4Z uses EXIR 2.0 technology and Smart IR with 24 IR LEDs to provide even, consistent infrared illumination up to 180 feet (54.86 m). This advanced lighting design helps eliminate hotspots and uneven exposure. As a result, it ensures clearer black-and-white images in low light and complete darkness. The camera therefore maintains strong visibility around the clock.

Designed with an IP67-rated tough metal casing, this dome camera is meant to resist demanding conditions and strong winds. Its durable design supports reliable operation in severe conditions.

Image Sensor	8.29MP CMOS Sensor
Video Format	PAL / NTSC
Effective Pixels	3840(H) × 2160(V)
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter speed	1/15 s to 1/10,000 s
Lens	2.7 ~ 13.5 mm motorized varifocal lens
Day & Night	ICR
Synchronization	Internal synchronization
Video Frame Rate	TVI: 15FPS @ 8MP, 20FPS @ 5MP, 30FPS @ 4MP CVI: 15FPS @ 8MP AHD: 20FPS @ 5MP
HD Video Output	1 Analog HD output
Wide Dynamic Range	True WDR
S / N Ratio	More than 52dB
Scene	Indoor, Outdoor, Indoor1, LOW-LIGHT
CVBS	N/A
AGC	Support
D/N Mode	Color/BW/EXT
White Balance	ATW, AWC-SET, Indoor, Outdoor, Manua
BLC	Support
4-in-1 Video	TVI, CVI, AHD, CVBS
Working Temperature / Humidity	−40°C – 60°C (−40°F – 140°F) Humidity 90% or less (non-condensing)
Power Supply	12VDC, 24VAC
Power Consumption	MAX. 8.2W
Ratings	IP67
IR Range	Up to 180 ft (54.86 m)
Communication	Up the coax
Dimensions	∅ 7.1 inches (18.03 cm) × 4.89 inches (12.42 cm)
Weight	1.42 lbs

Additional information

Weight	3 lbs
Dimensions	7 × 7 × 6 in
