AVST-FD2716

0 out of 5

( There are no reviews yet. )

Original price was: $191.99.Current price is: $114.95.

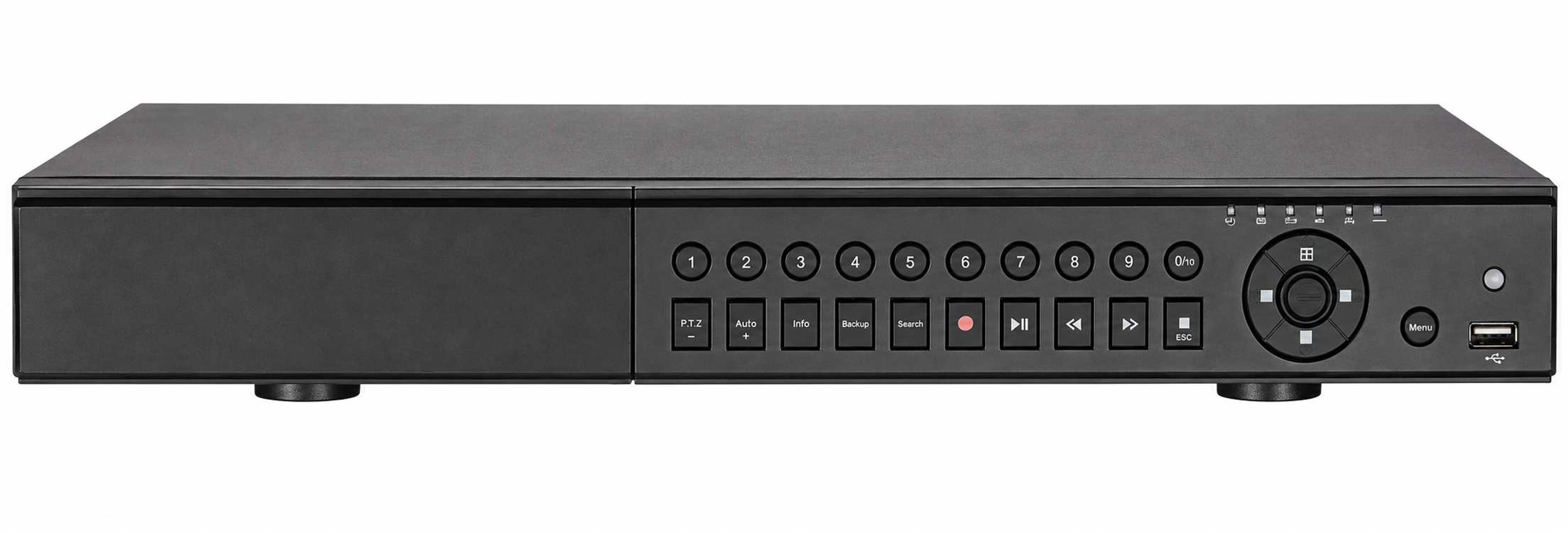

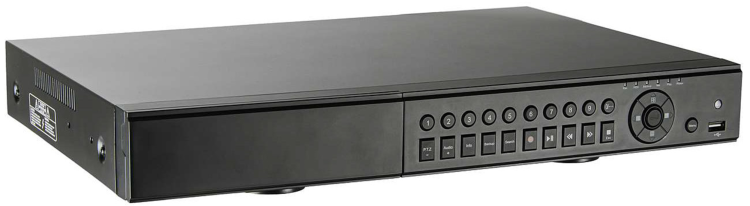

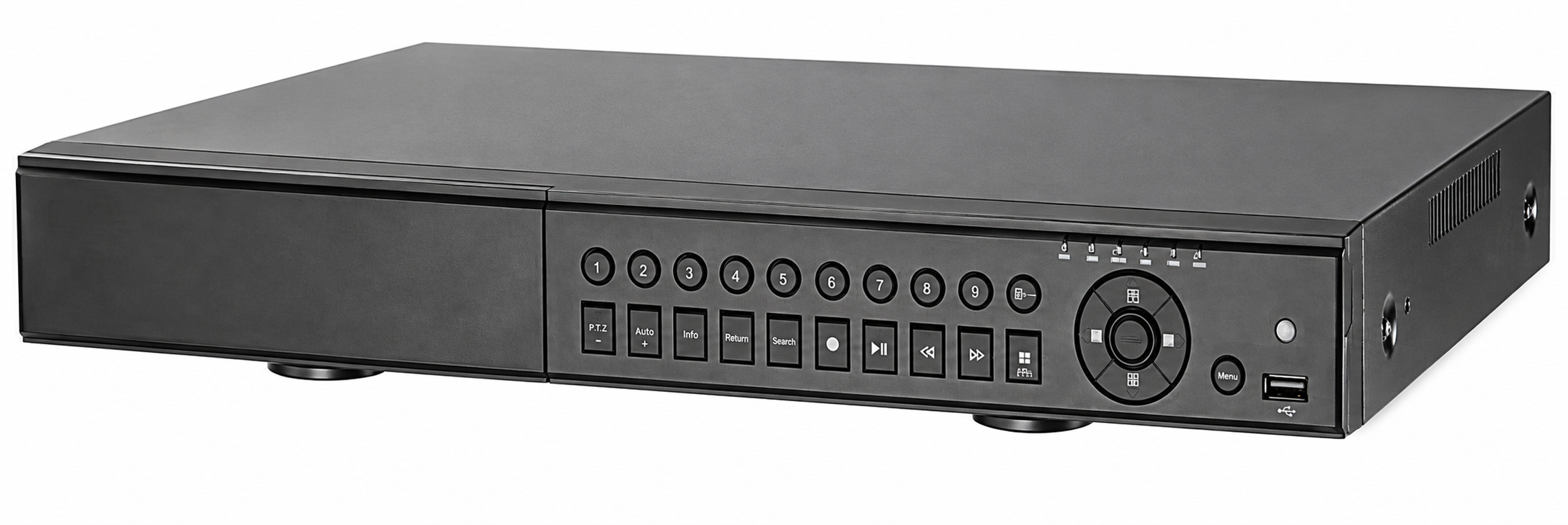

Eyemax AVST-FD2716 16-Channel Hybrid Security DVR

Supports analog, 960H, AHD, and compatible IP cameras
1080p and 720p recording with H.264 compression
HDMI, VGA, and CVBS video outputs
Two internal SATA bays for surveillance storage
Remote browser, CMS, iPhone, and Android monitoring

SKU: AVST-FD2716 Categories: 16-Channel HD Coaxial DVRs, HD Coaxial DVR Recorders Tags: 12V DC power, 16 Channel DVR, 3Megapixel DVR, H.264, IP Hybrid DVR System

Description

The Eyemax surveillance video recorder AVST-FD2716 is a 16-channel hybrid DVR for systems combining analog, 960H, AHD, and compatible IP cameras. This 16-channel hybrid DVR supports existing coaxial infrastructure, while access for up to eight IP cameras adds flexibility. In addition, the Eyemax surveillance video recorder supports 1080p and 720p video with H.264 High Profile compression.

The 1080p hybrid surveillance recorder supports manual, scheduled, motion, and sensor recording. Operators can search footage by time, calendar, or event and review up to eight channels simultaneously. Moreover, playback tools include pause, fast forward, fast backward, and digital zoom. The 1080p hybrid surveillance recorder can then export important video through USB or the network for documentation or evidence retention.

The AVST-FD2716 supports pentaplex operation, allowing live viewing, recording, playback, backup, and remote access simultaneously. Meanwhile, dual-stream technology separates local recording from remote viewing, helping users manage bandwidth without reducing primary recording quality. A gigabit Ethernet port supports TCP/IP, UDP, DHCP, DNS, PPPoE, and DDNS. Furthermore, up to ten authorized users can connect remotely, subject to configured permissions.

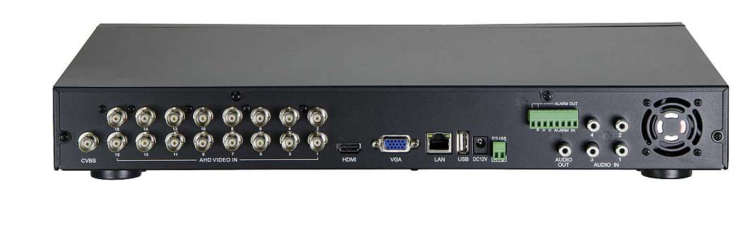

As a dual SATA security DVR, the AVST-FD2716 provides HDMI and VGA outputs supporting displays up to 1920 × 1080, while CVBS provides another video connection. Four RCA audio inputs, one output, RS-485, alarm connections, and two USB 2.0 ports support integration. Additionally, this dual SATA security DVR provides flexible storage, 128 PTZ presets, and eight cruises.

Mobile monitoring is available for iPhone and Android devices through SuperLive Plus. The compact chassis operates on 12 VDC and consumes less than 12 watts without hard drives. Therefore, the AVST-FD2716 suits retail, office, warehouse, and commercial security applications. Finally, its embedded Linux platform supports dependable daily operation and straightforward management in demanding professional video surveillance environments.

SYSTEM
Compression	Standard H.264 High Profile
CPU	Cortex A9
OS	Embedded Linux
VIDEO
Input	BNC × 16
IP Input/Access Bandwidth	IPC × 8 / 24Mbps
Output	HDMI × 1 : 1920 × 1080 / VGA × 1 : 1920 × 1080 BNC × 1 : used as CVBS output only
AUDIO
Input	RCA × 4
Output	RCA × 1
2-way audio	Take up channel one audio input
RECORD
Resolution	1080P : 1920 × 1080, 720P:1280 × 720
Frame Rate	720P : 400 fps (PAL) 480 fps (NTSC) 1080P : 200 fps (PAL) 240 fps (NTSC)
Bit Rate	1 M ~ 4 Mbps
Encode	VBR / CBR
Quality	6 Level
Mode	Manual, Timer, Motion, Sensor
File Manager	Lock, unlock, reserving time
IP Input
Resolution	3MP, 1080P, 960P, 720P, WD1, and D1
Frame Rate	3MP: 100 fps (PAL) 120 fps (NTSC) 1080P: 200 fps (PAL) 240 fps (NTSC) 960P/720P: 200 fps (PAL) 240 fps (NTSC)
PLAYBACK
Playback	8 CH
Search	Time / calendar search, event (motion)
Smart Search	Highlighted date and time to display the channel record
Function	Play, Pause, FF, FB, Digital zoom
ALARM
Mode	Sensor, Motion, Video Loss
Input	4 CH
Output	1 CH
Triggering	Record, PTZ move, alarm out, e-mail, etc
NETWORK
Interface	RJ45 10M/100M/1000M adaptive Ethernet network port × 1
Protocol	TCP / IP, UDP, DHCP, DNS, PPoE, DDNS
Others	10 users online, dual stream
CELLPHONE
OS	iPhone, Android
Function	Multiscreen surveillance (for certain model), record, snapshot, PTZ control, save the device list
I/O
HDD	SATA × 2
RS485	RS485 × 1, connect to PTZ or keyboard
USB	USB 2.0 × 2, one for mouse, another for USB backup device
IR Controller	Optional
OTHERS
Power Supply	DC 12V
Consumption	< 12W (without HDD)
Dimensions	16.91 inches (42.95 cm) × 11.81 inch (30 cm) × 2.17 inch (5.51 cm) (W × D × H)
Work Environment	14 °F (-10 °C) ~ 125.6 °F (52 °C) =, 10% ~ 90% Humidity

Additional information

Weight	8 lbs
Dimensions	18 × 13 × 3 in
