NVST-TX216-32
Original price was: $318.99.$238.95Current price is: $238.95.

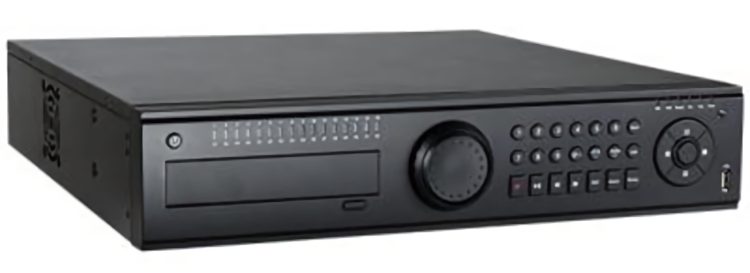

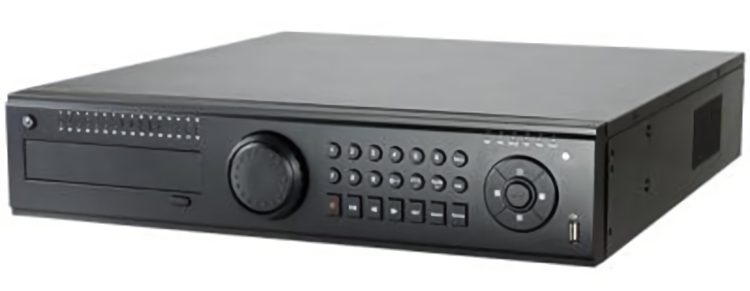

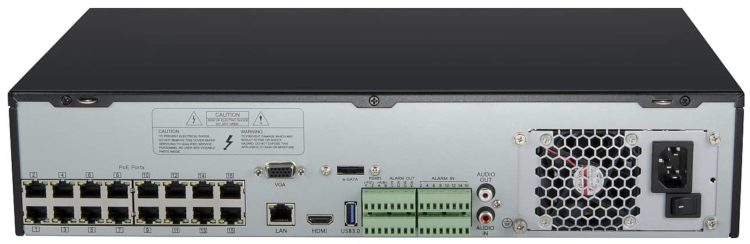

Eyemax NVST-TX216-32 32 Channel Network Video Recorder(NVR) for IP cameras up to 3MP with 16 channel PoE Input
- Support 32 channel 3 MP@30fps or 1080P@30fps or 960P@30fps or 720P@30fps IP input
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : support 16 channel playback
- Search : calendar / time, events (sensor, motion)
- Express and flexible backup via USB, network or DVD-RW
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream & network stream separately. User can adjust network stream to fit bandwidth without changing recording quality.
- Multi-user online simultaneously
- HDMI 1080P output, true high-resolution display
- Support PTZ preset and auto-cruise, up to 128 presets and 8 cruises
- Powerful smartphone surveillance supporting iPhone, Android. Compatible with 3G
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Eyemax NVST-TX216-32 is a top-of-the-line network video recorder with 32 channels. This NVR can handle large-scale and complex surveillance systems with 32 Channel IP inputs and 16 PoE channels. This makes it an ideal choice for different security requirements, including residential, commercial, enterprise, transportation, and government purposes.
Equipped with a standard 2U chassis, the Eyemax NVST-TX216-32 is a compact and space-efficient solution for video recording needs. This feature also makes it easy to install and integrate into existing security systems. The NVR also comes with 16 simultaneous playback channels, allowing the user to efficiently monitor multiple cameras at once. The 16 PoE channels provide power and data transmission to compatible IP cameras, eliminating the need for additional power sources.
One of the most impressive features of the Eyemax NVST-TX216-32 is its HDMI 1080P high-resolution display. This ensures that all videos are clear and sharp, enabling the user to easily discern if something unusual is transpiring. With this NVR, you can rest assured that no details will go unnoticed. Multiple recording modes, including manual, schedule, and motion detection, give the user full control over their surveillance system.
The Eyemax NVST-TX216-32 has a special technique called SOC that makes sure each channel records in high quality. Each camera input is optimized to capture every detail. This makes it easier for the user to review footage and identify any potential threats or incidents. The NVR can also be viewed and played back from anywhere at any time.
In conclusion, the Eyemax NVST-TX216-32 is a highly reliable and efficient NVR that is perfect for various security applications. This NVR has 32 channels of IP input, 16 playback channels, HDMI 1080P resolution, and advanced SOC technique. The NVST-TX216-32 is a good choice for a robust video recording solution.
| SYSTEM | |
| Compression | Standard H.264 / MPEG4 |
| CPU | Cortex A9 |
| OS | Embedded Linux |
| VIDEO | |
| Output | VGA × 1:1080P HDMI × 1:1080P |
| IP INPUT | |
| Resolution | 3MP / 1080P / 960P / 720P |
| Frame Rate | 32 Channel 3MP / 1080P / 960P / 720P @30 fps |
| AUDIO | |
| Input | 32 Channel IPC input |
| Output | RCA × 1 |
| 2-way audio | RCA × 1 |
| RECORD | |
| Resolution | 3MP : 2048 × 1536, 1080P : 1920 × 1080 960P : 1280 × 960, 720P : 1280 × 720 D1 : 704 × 576 |
| Frame Rate | 800 fps (PAL) 960 fps (NTSC) |
| Bit Rate | 256Kbps ~ 12Mbps |
| Encode | VBR / CBR |
| Quality | 6 Level |
| Mode | Manual, Timer, Motion, Sensor |
| File Manager | Lock, unlock, reserving time |
| PLAYBACK | |
| Playback | 16 Channel |
| Search | Time/calendar search, event (motion, external alarm) |
| Smart Search | Apply different colors to display whether a channel in a period of time recording or not |
| Function | Play, Pause, FF, FB, Digital zoom |
| ALARM | |
| Mode | Sensor, Motion, Video Loss |
| Input | 16 Channel local input, support IPC alarm input |
| Output | 4 Channel |
| Triggering | Record, alarm out, e-mail, etc |
| NETWORK | |
| Common Interface | GMAC × 1 |
| PoE Interface | RJ45 × 16 |
| Protocol | TCP / IP, UDP, DHCP, DNS, PPoE, DDNS, E-mail |
| Others | 18 users online, dual stream |
| CELLPHONE | |
| OS | iPhone, Android |
| Function | Multiscreen surveillance, record, snapshot, PTZ control, save the device list |
| PORT | |
| HDD | SATA × 8 |
| RS485 | RS 485 × 1, support PTZ and keyboard |
| USB | USB 3.0 × 1, USB 2.0 × 1, one for mouse, another for USB backup device |
| Remote Controller | Yes |
| OTHERS | |
| Power Supply | ATX |
| Dimensions (W × D × H) | 16.93 inches (43 cm) × 17.71 inch (44.98 cm)× 3.5 inch (8.89 cm) |
| Work Environment | 14 °F (-10 °C) ~ 131 °F (55 °C), 10% ~ 90% Humidity |
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 18 × 19 × 6 in |
