TVST-PVT8-8M08
$202.95 – $577.95

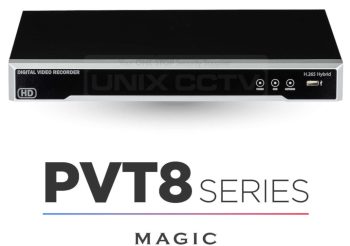

MAGIC PVT8 8CH DVR System: NDAA Compliant, 4K Support, Multi-Platform Compatibility
- Full GUI with alpha blending
- PLUS⁺: 8 Coax + 8 IP
- Individual setting of resolution, frame rates and picture quality
- Instant Replay, Digital Zoom, Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 users, 22 languages with full graphic
- Deinterlacer upon live and playback
- Relay alarm output, Individual Network port setting
- Auto Deletion
- Interactive setup via network
- POS Interface
- Dual CODEC Engine for independent video transmission
SKU: N/A
Categories: 8 Channel DVR Coaxial HD Recorder, HD Coaxial DVR Recorders
Tags: 8 Channel PentaBrid Recorder, Dual H.265 and H.264 Codecs, HDCVI Pentabrid, HDCVI/AHD/TVI/CVBS Auto-detect, Seagate, Two-Way Audio- Description
- Attachment
- SPECIFICATIONS
- Additional information
Description
Introducing the latest addition to the Collsam Distribution family – the MAGIC PVT8 Series TVST-PVT8-8M08 8CH Pentabrid 4K DVR System. This high-tech surveillance system is safe and works with 8MP (4K) video. It’s compelling and can do many things. This system works with TVI, CVI cameras, AHD cameras, IP cameras, and analog cameras.
The MAGIC PVT8 Series TVST-PVT8-8M08 has a smooth user interface with alpha blending PLUS+ technology. You can change how big, fast, and good your video is by using eight cables and up to eight cameras. Say goodbye to grainy and blurry images – with this system, you can ensure high-quality, crystal-clear footage at all times.
Advanced options like instant replay, digital zoom, and mouse control make it easier to examine and analyze footage. Additionally, the motion detection feature with 576 area setting allows for accurate and efficient monitoring of any suspicious activity. Using RS-485 and deinterlacing during live and playback improves the system and gives better footage.
The MAGIC PVT8 Series TVST-PVT-8M08 has a single SATA port for data storage and eight audio input channels. You can watch your surveillance footage from anywhere with a Magic-Viewer App for iOS and Android devices. With the option to set individual network port settings and auto-deletion of footage, managing your system has never been easier.
In addition to its sophisticated surveillance capabilities, the MAGIC PVT8 Series TVST-PVT8-8M08 also features a POS interface and relay alarm output, rendering it ideally suited for commercial and retail applications. The dual CODEC engine ensures independent video transmission, providing even more security and stability to your system.
In conclusion, the MAGIC PVT8 Series TVST-PVT8-8M08 8CH Pentabrid 4K DVR System is a highly versatile, powerful, and reliable surveillance system offered by Collsam Distribution. With its NDAA compliance, 8MP (4K) support, and compatibility with various camera types, this system is a must-have for all your security needs. Its advanced features, convenient options, and user-friendly interface make it the perfect choice for both residential and commercial use. Upgrade to the MAGIC PVT8 Series today and experience the next level of surveillance technology.
| Video | |
|---|---|
| Camera input | 8 Coax + 8 IP (PLUS+) |
| Individual HD/Analog select. | Analog, AHD, TVI, CVI, IP |
| Available source | TVI/AHD/CVI 720p25,30/ 1080p25,30/ 3MP@18~30/ 4MP@12~30/ 5MP@20/ 8MP@15 Composite/ 960H/ Mixed |
| Output | 1 HDMI (Main Display, ~UHD@30) / 1 VGA (Main Display, ~1080p60) / 1 Composite (Programmable SPOT) |
| IP Camera | |
| # of IP Camera Support | 8 |
| Resolution | Up to 8M |
| Spec | ONVIF 1812, RTSP, H.264, H.265, Dual stream use gigabit Ethernet hub |
| Restriction | Cannot set up Private ZONE, Cannot support Timestamp |
| System | |
| Audio input / output | 8 RCA / 1 RCA |
| Sensor in / Alarm out | 8 (NC, NO selectable) / 1 Relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (pixel) | 1280 × 720, 1920 × 1080, 4M, UHD |
| Split screen | 1, 4, 6, 8, 16 (PLUS+) |
| Main Recording | |
| CODEC | H.264 / H.265 |
| Resolution (pixel) | 8MP: 8MP, 1080p / 5MP: 5MP, 720p / 4MP: 4MP, 720p / 3MP: 3MP, 720p 1080p: 1080p, 720p / 720p: 720p, 960×540 / 960H, Composite: 960H, D1 |
| Picture quality | 4 steps (Super, High, Medium, Low) |
| Speed | 120fps@4MP |
| Dual Recording | |
| CODEC | H.264/H.265 |
| Resolution (pixel) | 512 × 320 |
| Playback | |
| Display | 1, 4, 6, 8, 16 (PLUS+) |
| Search mode | Calendar, Event, POS, Thumbnail, Bookmark |
| Fast/Slow speed | Normal, REW & FF (recorded speed × 2, × 4, × 8, × 16,×32,×64,×1/2,×1/4), Frame to frame, Pause |
| Speed | 120fps@4MP |
| Network | |
| Network Interface | Gigabit Ethernet |
| Protocol | TCP/IP, HTTP, DHCP |
| Application/Mobile App. | Windows 7, 8, 10, 11 (PC client system & IE), Mac / Android, iPhone for live & search |
| Web browser | Internet Explorer, Edge(IE mode), Chrome(IE extension) |
| Others | |
| Backup interface / device | USB2.0 × 2 / External HDD, Network, Thumb Drive(FAT32) |
| The number of HDD | 1 SATA (No capacity limit ; 12TB or more) |
| Power Consumption | 24W |
| Operating Temp. / Relative Humidity | 41 °F (5 °C) ~ 104 °F (40 °C) Max. 80% non-condensing |
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 12 × 9 × 2 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive |
