-63%
AVST-FD2704
Original price was: $149.95.$56.00Current price is: $56.00.

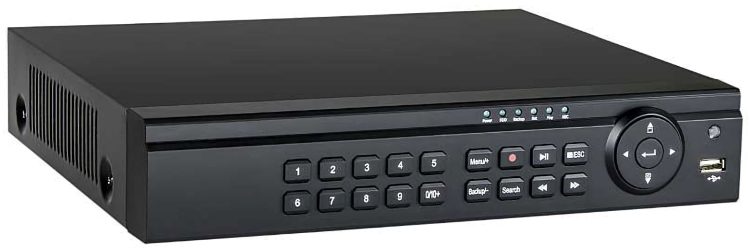

Eyemax AVST-FD2704 4CH FD Series 1080P Hybrid Security DVR System
- 4 CH A-HD Video Input, 4 CH 1080P / 720P Recording
- 4 CH DVR supports 1 CH IPC 1080P/960P/720P/WD1/D1 recording
- Adopt the standard H.264 high-profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows-style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback: 4 CH simultaneous playback
- Search: time / calendar, events ( sensor, motion )
- Express and flexible backup via USB, network
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol, IE browser, and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology to encode the recording stream and network stream respectively.
- User can adjust network stream to fit bandwidth without changing recording quality.
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Android
- Support NAT function, support QR code scanning by mobile phone
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Eyemax AVST-FD2704 is a versatile 4-channel 1080p Hybrid Security Digital Video Recorder (DVR). It serves as the perfect bridge for security systems.
With this DVR, users can deploy different surveillance camera styles over a single recording interface. This makes it the ideal solution for any security setup.
The AVST-FD2704 supports Analog, 960H, A-HD (Analog High Definition), and IP Network cameras. Users can mix and match camera styles depending on their individual needs.
One of the standout features of the Eyemax AVST-FD2704 is its automatic camera signal recognition. This means that the DVR can self-detect the camera signal type without the need for manual configuration. As a result, this saves time and effort and ensures that the system is set up correctly. It captures high-quality footage from each camera.
With the Eyemax AVST-FD2704, users can expect high-definition 1080p recording across all four channels at up to 30 frames per second (fps). This means that every detail is captured clearly and accurately. That makes it easier to identify and analyze any potential security threats. Plus, with the H.264 high-profile compression standard, the DVR can maximize system storage. It still preserves the clarity of the video footage.
The Eyemax AVST-FD2704 comes equipped with 1 internal SATA port, which supports hard drive installations. Users have the option to purchase the DVR with a pre-configured hard drive, typically with a capacity of 2 TB. They can also install their own hard drive. Therefore, this allows for plenty of storage space to store hours of high-quality video footage.

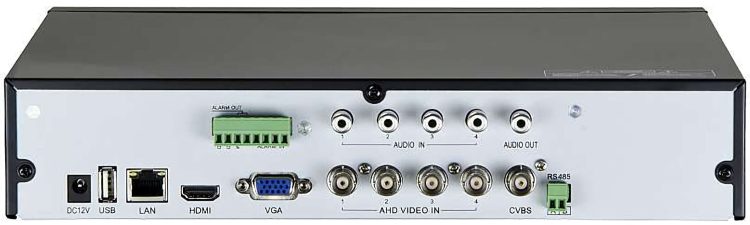

In terms of connectivity, the Eyemax AVST-FD2704 features 4 BNC channel inputs, 1 HDMI port, and 1 VGA port for local screen displays. Additionally, it has 1 channel audio input and 4 audio outputs.
| SYSTEM | ||||
| Compression | Standard H.264 High Profile | |||
| CPU | Cortex A9 | |||
| OS | Embedded Linux | |||
| VIDEO | ||||
| Input | BNC × 4 | |||
| IP Input/Access Bandwidth | IPC × 1 / 6Mbps | |||
| Ouput | HDMI × 1: 1920 × 1080 / VGA × 1: 1920 × 1080 BNC × 1: used as CVBS output only | |||
| AUDIO | ||||
| Input | RCA × 4 | |||
| Output | RCA × 1 | |||
| 2-way audio | Take up channel one audio input | |||
| RECORD | ||||
| Resolution | 1080P : 1920 × 1080, 720P: 1280 × 720 | |||
| Frame Rate | 720P: 100 fps ( PAL ) 120 fps ( NTSC ) 1080P: 50 fps ( PAL ) 60 fps ( NTSC ) | |||
| Bit Rate | 1 M ~ 4 Mbps | |||
| Encode | VBR / CBR | |||
| Quality | 6 Level | |||
| Mode | Manual, Timer, Motion, Sensor | |||
| File Manager | Lock, unlock, reserving time | |||
| IP Input | ||||
| Resolution | 1080P / 960P / 720P / WD1 / D1 | |||
| Frame Rate | 1080P: 12 fps ( PAL ) 15 fps ( NTSC ) 960P/720P: 25 fps ( PAL ) 30 fps ( NTSC ) | |||
| PLAYBACK | ||||
| Playback | 4 CH | |||
| Search | Time / calendar search, event ( motion ) | |||
| Smart Search | Highlighted date and time to display the channel record | |||
| Function | Play, Pause, FF, FB, Digital zoom | |||
| ALARM | ||||
| Mode | Sensor, Motion, Video Loss | |||
| Input | 4 CH | |||
| Output | 1 CH | |||
| Triggering | Record, PTZ move, alarm out, e-mail, etc | |||
| NETWORK | ||||
| Interface | RJ45 10M/100M/1000M adaptive ethernet network port × 1 | |||
| Protocol | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS | |||
| Others | 10 users online, dual stream | |||
| CELLPHONE | ||||
| OS | iPhone, Andriod | |||
| Function | Multi-screen surveillance ( for certain models) , record, snapshot, PTZ control, save the device list | |||
| I/O | ||||
| HDD | SATA × 1 | |||
| RS485 | RS485 × 1, connect to PTZ or keyboard | |||
| USB | USB 2.0 × 2, one for mouse, another for USB backup device | |||
| OTHERS | ||||
| Power Supply | DC 12V | |||
| Consumption | < 6W ( without HDD ) | |||
| Dimensions (W × D x H) | 10.4 inches (26.42 cm) × 8.27 inches (21.01 cm) × 1.65 inches (4.19 cm) | |||
| Work Environment | 14°F (-10°C) ~ 122°F (50°C), 10% ~ 90% Humidity | |||
