TVST-AR324-8
Original price was: $218.99.$130.95Current price is: $130.95.
Eyemax TVST-AR324-8 8-Channel Penta-brid DVR
- Eight self-adaptive HD-TVI, HDCVI, AHD, and CVBS inputs
- Two additional IP camera channels supporting up to 4 MP
- H.265+, H.265, H.264+, and H.264 video compression
- Up to 3 MP recording with eight-channel synchronous playback
- HDMI, VGA, and separate CVBS video outputs
- One SATA interface for surveillance storage
- GuardingVision remote access, ONVIF support, and smart analytics
- Out-of-stock model retained for replacement planning and support
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Eyemax TVST-AR324-8 is an eight-channel Penta-brid digital video recorder designed for flexible upgrades and mixed-camera surveillance installations. Its self-adaptive BNC inputs accept HD-TVI, HDCVI, AHD, and standard CVBS analog video. This allows existing coaxial cameras and newer high-definition models to operate on one recorder.
Moreover, two additional IP camera channels support resolutions up to 4 megapixels. This gives installers practical expansion options without replacing the complete system, especially when working with models such as the TVST-AR324-8.
Efficient H.265+, H.265, H.264+, and H.264 video compression help reduce storage and network bandwidth requirements while maintaining useful recorded detail. When it comes to optimizing installations, the inclusion of TVST-AR324-8 compatible compression methods supports up to 3-megapixel recording, including 3 MP at 15 frames per second on channels one and two. It also provides real-time 1080p Lite recording and eight-channel synchronous playback for reviewing activity across multiple cameras.
Simultaneous HDMI and VGA outputs simplify connection to common security monitors, while the separate CVBS output supports compatible legacy displays. It is worth noting that the TVST-AR324-8 offers smart search tools to help operators locate recorded events more efficiently. Video analytics support includes line-crossing detection, intrusion detection, sudden scene-change detection, and video-quality diagnostics on supported channels and cameras.

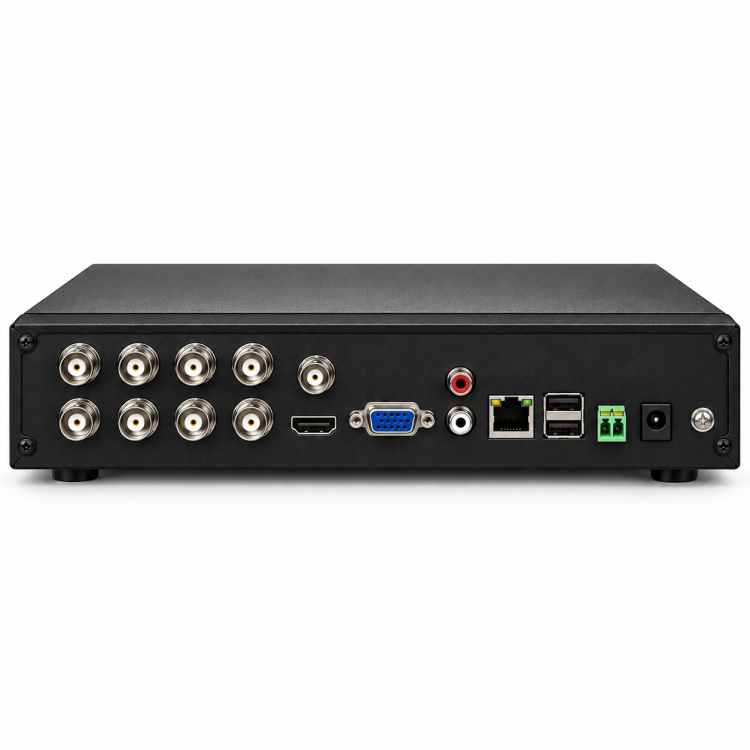

The TVST-AR324-8 includes one SATA interface for surveillance storage, an RJ45 Ethernet port, USB connections, RS-485 control, and RCA audio input and output.
GuardingVision, DDNS, ONVIF, and common network protocols support remote viewing and system integration. Integration is seamless when the TVST-AR324-8 is utilized for security networks.
Long-distance HD-TVI transmission can reach approximately 800 meters at 1080p or 1,200 meters at 720p. Transmission distances like these are achievable on the TVST-AR324-8 when properly installed over suitable cabling.
Its compact 1U chassis fits professional recorder installations. In addition, using the 12 VDC power input and the efficient operation of the TVST-AR324-8 support dependable everyday system use.
This Eyemax recorder remains useful for maintaining compatible existing surveillance systems. You may also find the TVST-AR324-8 listed by Collsam Security for reference, replacement planning, and continued support of installations using HD-TVI, HDCVI, AHD, CVBS, or compatible IP cameras.
| Video compression | H.264 / H.264+ /H.265 / H.265+ |
| Analog, AHD, HD-TVI, and HD-CVI video input | 8 Ch., BNC interface (1.0Vp-p, 75Ω) |
| HD-TVI Input | 3 MP, 1080p, 720p Note: The 3 MP signal input is only available for channels 1/2 |
| AHD Input | 1080p, 720p |
| HDCVI Input | 1080p, 720p |
| CVBS Input | PAL/NTSC |
| IP Video Input | 2CH, up to 4MP resolution / 4CH. Up to 4MP Enhanced IP Mode / Supports H.265+/H.265/H.264+/H.264 IP cameras. |
| Audio compression | G.711u |
| Audio input / Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1920 × 1080@60Hz, 1280 × 1024@60Hz, 1280 × 720@60Hz, 1024 × 768@60Hz |
| HDMI output | 1920 × 1080@60Hz, 1280 × 1024@60Hz, 1280 × 720@60Hz, 1024 × 768@60Hz |
| Encoding resolution | When 1080p Lite mode is not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate (main stream) | • When 1080p Lite mode is not enabled For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N)• When 1080p Lite mode is enabled 3 MP@15fps/1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) |
| Frame rate (sub-stream) | • When 1080p Lite mode is not enabled WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bitrate | 32 Kbps to 6 Mbps |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) |
| Audio bitrate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video & Audio |
| Synchronous playback | 8 Ch. |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| SATA | 1 SATA interface |
| Capacity | Up to 12TB capacity |
| Network interface | 1; 10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1 x RS-485 serial interface |
| USB port | 2 × USB2.0 |
| Power supply | 12 VDC |
| Consumption (without hard disks) | ≤ 7.5W |
| Working temperature | 14°F (−10°C) to 131°F (55°C) |
| Working humidity | 10% ~ 90% |

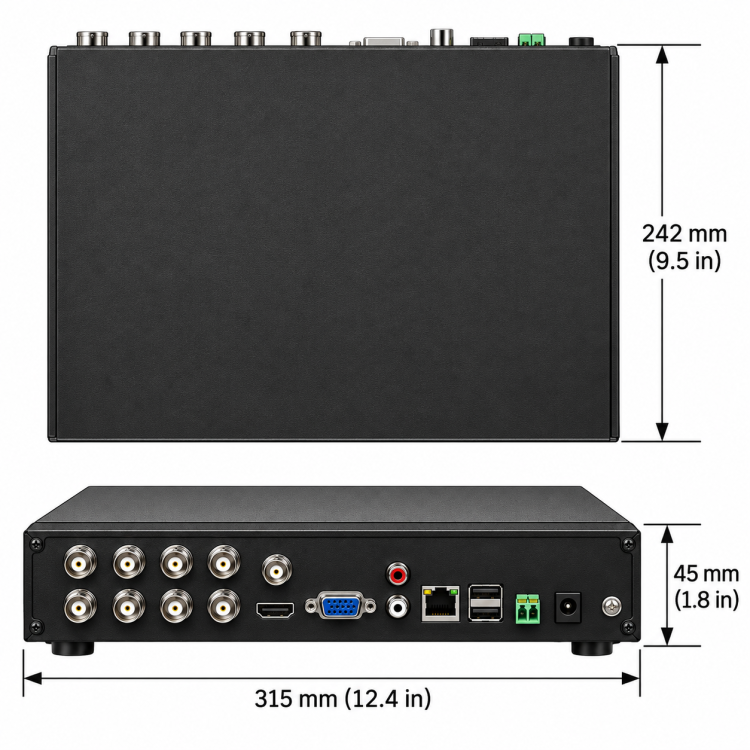

| Dimensions | 12.4 inches (ca. 31 cm) × 9.5 inches (ca. 24 cm) × 1.8 inches (ca. 46 mm) |
| Weight (without hard disks) | 3.9 lb (1.77 kg) |
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 16 × 14 × 3 in |
Brand
Eyemax
