IES02-B12-BI04
Original price was: $336.00.$235.96Current price is: $235.96.

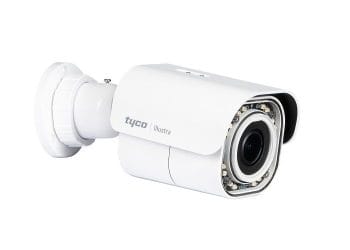

American Dynamics IES02-B12-BI04 Illustra Essentials 2MP Outdoor Network IR Bullet Camera, 2.7-13.5mm Lens, White
- 2MP (1080p) resolution for HD quality images
- Manage bandwidth resources with H.264 and H.265 dual stream encoding
- Up to 30 frames per second for seamless video streaming
- 2.7-13.5mm varifocal lens with motorized zoom
- One-touch autofocus
- IR Illuminators deliver clear video when viewing dark scenes
- IP67 environmental rating to protect against dust and water
- True Day/Night functionality for low light conditions
- WDR to simultaneously view high-contrasting areas
- Description
- Attachment
- Additional information
- Specifications
Description
The American Dynamics IES02-B12-BI04 Illustra Essentials 2MP Outdoor Network IR Bullet Camera is a good security camera. This camera has a lens that can see everything from 2.7 to 13.5mm. You can change the distance and focus to get the perfect picture. Whether you need to monitor a large area or zoom in on details, this camera has you covered.
This camera boasts a 1080p resolution, delivering crisp and clear video footage for enhanced security monitoring. Streaming video at up to 30 frames per second will ensure that you won’t miss any important details or events. This makes the American Dynamics IES02-B12-BI04 an ideal choice for high-security applications such as banks, government buildings, and commercial properties.
This camera has night vision, which allows it to capture video footage even in low light or complete darkness. The camera can capture clear footage up to 165 feet (50.29 meters) away. This feature is especially useful for outdoor settings where lighting conditions can fluctuate, ensuring round-the-clock surveillance.
American Dynamics offers advanced motion sensing capabilities in the IES02-B12-BI04. You can set up your motion detection zones and get notified when something moves in your area. This feature minimizes false alarms and allows you to focus on the most critical areas of your property.
This camera is also designed to work in harsh outdoor environments. It has an IP66 weatherproof rating, ensuring that it can withstand rain, snow, and extreme temperatures. You can be sure your surveillance system will keep going strong, regardless of what the weather does to you.
A reliable and versatile security camera that delivers exceptional performance in various lighting conditions is the American Dynamics IES02-B12-BI04. With its powerful features and durable design, this camera is a must-have for any outdoor security system. Enhance your surveillance capabilities and keep your property safe with the American Dynamics IES02-B12-BI04 camera.
Additional information
Weight | 2 lbs |
---|---|
Dimensions | 5 × 5 × 8 in |
Resolution & Aspect Ratio | 1920 × 1080 (1080p) 16:9 |
Max Frame Rate | 30fps |
Video Compression | H.264, H.265, MJPEG |
Video Streams | Dual Stream with both streams at a maximum of 1080p @ 30ips |
Imager | 1/2.8”, Sony CMOS |
S/N Ratio | More than 50dB |
Image Orientation Settings | Off, flip, mirror, both |
Lens Type | f2.7mm~13.5mm |
Focus Control | Remote On-Push Focus and Remote Manual Adjustment |
Aperture | F1.4~2.8 |
Focal Length | 2.7 – 13.5mm |
Field of View (H/V) Wide Angle Telephoto | 100°/53° 34°/20° |
Shutter Speed | 1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) / (Shutter-priority:default NTSC=1/60s, PAL=1/50s) |
Minimum Illumination Color B/W With IR | 0.08 Lux (50IRE) | 0.03 Lux (30IRE) 0.05 Lux (50IRE) | 0.02 Lux (30IRE) 0.0 Lux |
Day/Night | True Day/Night with ICR |
IRL EDS | Yes |
IR Distance | 30m |
Noise Reduction | 3D |
Wide Dynamic Range | True WDR 120dB |
ONVIF-Compliant | Profile S/G/Q |
Motion Detection Zones | 3 |
Blur Detection Zones | Yes |
Privacy Zones | 8 |
Image Rotation | Corridor |
Analog Video Output | No |
Audio | No |
Simultaneous Users | 5 |
Network | |
Ethernet Interface | IEEE 802.3, 10/100 Base-T/TX, auto-sensing, 1 x RJ45 |
Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WS Security, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WS Addressing, SNMP, UPnP, RTSP, LLDP |
Configuration Management | |
Web Browser | IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge |
Security | Enhanced Security |
Onboard Storage | |
Card Support | SDXC up to 256GB |
Pre-Alarm Recording | 1-10 sec |
Recording Format | AVI |
Recording Trigger | Bur Detection, Motion Detection |
VideoEdge TrickleStor | No |
Electrical | |
Power Input | DC12V; PoE IEEE 802.3af Class 3 |
Maximum Power Draw | 9.9W |
Physical | |
Dimensions (H × W × H) | 3.03 inches (7.7 cm) x 3.3 inch (8.38 cm) x 6.92 inch (17.58 cm) |
Weight | 0.58kg (1.28 lbs) |
Housing Color | White RAL 9003 |
Operating Temperature | Cold Start Temperature: -200 C to 600 C (-40 F to 1400 F) Operating Temperature: -300 C to 600 C (-220 F to 1400 F) |
Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
Relative Humidity | 10% to 90% (non-condensing) |
Vandal Resistant | N/A |
Outdoor Rating | IP67 |
Regulatory | |
Safety | UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471 |
Emissions | FCC CFR 47, Part 15 Class A, EN 55032 |
Immunity | EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
Environment | RoHS, Reach, WEEE |
