V2000D-PTZ
Roughneck V2000D-PTZ AI PTZ Series Exceptional PTZ cameras with advanced analytics for faster responses.
- Description
- Attachment
- Specifications
- Additional information
Description
The V2000D-PTZ is a high-quality PTZ (Pan-Tilt-Zoom) camera designed by Vicon, a leading manufacturer of security and surveillance technology. This camera is designed to protect large outdoor spaces, such as parking lots, parks, and commercial buildings. With its advanced features and durable design, the V2000D-PTZ offers reliable and effective surveillance for any location.
The V2000D-PTZ boasts an impressive 2-megapixel 1080P resolution, ensuring clear and detailed images even in low light conditions. Starlight technology makes the camera more sensitive to capture high-quality footage even in low-light environments. This feature is especially useful for outdoor surveillance, where lighting conditions can vary throughout the day and night.
One of the standout features of the V2000D-PTZ is its motorized zoom and focus capabilities. This allows users to control the camera’s pan, tilt, and zoom functions from a distance. The camera also features an auto-iris function, which automatically adjusts the lens aperture to ensure optimal image brightness and sharpness. This ensures clear images at all times.
In addition to its advanced imaging capabilities, the V2000D-PTZ is also built to withstand tough outdoor conditions. Its vandal-proof design and IP66 Ingress Protection rating keep it safe in outdoor environments. This camera is also compliant with NDAA, GSA, and TAA regulations, making it a reliable and secure choice for government and commercial installations.
The V2000D-PTZ comes with a 1/2.8” day and night camera with a 4.5-135mm 30X zoom lens, providing a wide viewing angle and the ability to zoom in on specific areas with exceptional clarity. This camera can also be controlled remotely through a network connection, making it easy to monitor and adjust its settings from anywhere. Overall, the V2000D-PTZ is a top-of-the-line choice for outdoor surveillance, offering advanced features and robust design to ensure reliable and effective protection for any location.
Camera | |
Image Sensor | 1/2.8 inch Sony |
Max Resolution | 2 MP (1080p) |
Image Settings | Digital image effects defog, flip and mirror. Configurable brightness, contrast, saturation, hue, and sharpness. White balance. Backlight Compensation (BLC). HLC. Gain control. Gamma correction. Electronic shutter speed. Day/night mode. Dynamic Noise Reduction (3 DNR). Motion detection (4 programmable zones). Privacy masking (8 masks). Dynamic ROI. Event notification. Electronic Image Stabilization (EIS). |
Intelligent Video Analytics | 5 profile/presets Motion, Tampering/Defocus, Intrusion, Loitering, Line Cross/Counting, Object Left/Removed, Area Counting, Wrong Direction. Museum Search. |
Electronic Shutter Speed | 1/30 ~ 1/10,000 sec |
Day/Night Performance | True day/night (IR cut filter) |
Wide Dynamic Range (WDR) | True WDR (120 dB) |
Minimum Illumination | Color 0.007 lux; B/W 0.002 lux |
IR Distance | Adaptive IR; Smart IR (Automatic) 492 ft (149.96 m) |
Lenses | |
Focal Length | 4.5 – 135 mm (30X optical zoom); digital 8X |
Max. Aperture | f/1.6 – f/4.4 |
Iris | Auto IRIS |
Zoom/Focus Adjust | Motorized focus and zoom |
Field of View | 5° – 60° (H); 3° – 38° (V) |
Electrical | |
Input Power | PoE++ (IEEE 802.3bt, Class 7); 24 VAC (+20%/-10%); 48 VDC (±10%) |
Current (IR on) | 2.5 A @24 VAC; 1.25 A @48 VDC |
Power Consumption | Total Power 48 W. PTZ Camera 11 W; Pan/Tilt Function 12 W; IR 19 W; Heater 5.5 W; Blower 0.9 W. Note that blower is always on; heater turns on when temperature is lower than 59 °F (15 °C) |
Controls and Connectors | |
Indicators and Connectors | Power 24 VAC/48 VDC terminal block. Network/PoE RJ-45 CAT 5. Audio In/Out and Alarm In/Out screw terminal. SDHC/SDXC Card Slot. Reset button. Default button. Indicators green LED flashes for booting and software updating. |
Environmental | |
Operating Conditions | Temp -40 °F (-40 °C) to 140 °F (60 °C) |
Humidity up to 90%, relative, non-condensing Limitations in certain weather conditions, including blizzard conditions and freezing rain with high winds. | |
Approvals | UL; FCC Class A; CE; IP66; IK10 (housing)/IK07 (lens cover); RoHS |
Country of Origin | Taiwan |
Warranty | 5 years |
Network Video Transmission | |
Network | 10Base-T, 100Base-TX, RJ-45 |
Image Compression | H.265/H.264 and M-JPEG |
Resolution | 1920×1080 (1080P), 1280×960/720, 800×600, |
640×480, 640×360, 320×240 | |
Protocol | ARP, DHCP, DNS, FTP, HTTP, HTTPS, HLS, ICMP, IGMP, IPv4/6, LDAP, NTP, RTSP/RTCP/RTP, RTMP, QoS, SMTP, SNMP v1/2c/3, TCP, TLS/TTLS, UDP, UPnP, 802.1X, UPnP, Bonjour, DDNS, PPPoE; ONVIF S/G/Q/T |
Frame Rate | Max. 30 fps (25 fps, PAL) |
Streams | Triple streaming. |
Single 2 MP@30fps; | |
Dual 2 MP@30fps + 720p@15fps; | |
Triple 2 MP@30fps + 720@15fps +VGA @30fps | |
Users | Live viewing for up to 10 clients |
Web Browser | Internet Explorer®; Safari®, Firefox®, Google Chrome®, Microsoft® Edge |
Security | IP address filtering, HTTPS encrypted data transmission, SSL, IEEE 802.1X, Digest Authentication, Advanced Security |

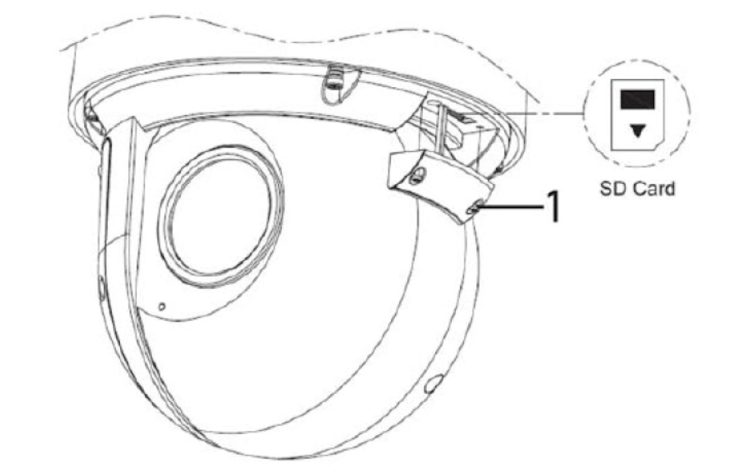

Local Recording | Micro-SD slot provided; customer supplied SDHC/SDXC card |
Mechanical | |
Construction | Aluminum base; polycarbonate dome bubble |
Pan Range | 360° continuous pan |
Pan Speed | 300°/second maximum |
Tilt Range | 95° (-15° to 90°) |
Tilt Speed | 160°/second maximum |
Presets | 128 |
Tours/Pattern | 4-Apr |
Alarm | 2 alarm inputs; 2 alarm output |
Audio Capability | Two-way audio; G.711 compression |
Mounting | Mounting accessories available. Refer to Ordering Information. |
Dimensions | 7.5 inch (19.05 cm) (D) x 13.2 inch (33.53 cm)(H); refer to dimensional diagram |
Weight | 11.5 lb (5.22 kg) |
Additional information
Weight | 13 lbs |
---|---|
Dimensions | 8 × 8 × 14 in |
