IPS02-B12-OI03
Original price was: $1,395.00.$833.95Current price is: $833.95.
ExacqVision IPS02-B12-OI03 Illustra Pro Gen3 2MP Bullet 2.7-13.5mm, Outdoor IP67
- Pole/pendant mount and arm included for mounting flexibility

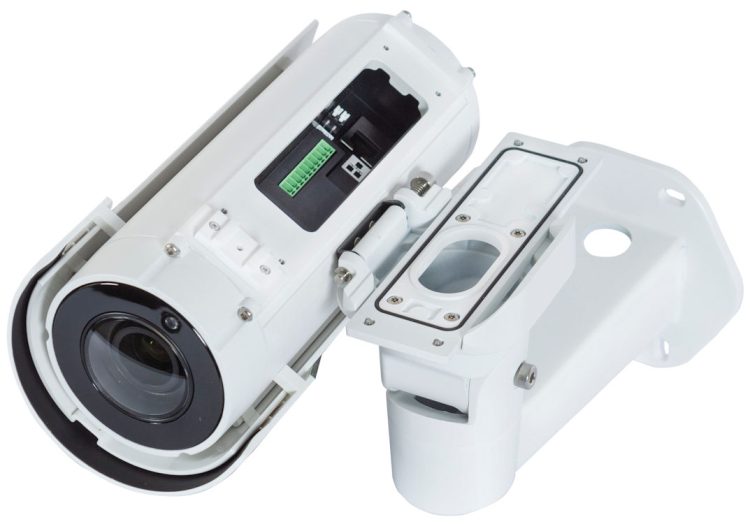

- Easily accessible ports simplify installation
- Profile settings allow the bullet to adapt to scenarios such as license plate recognition, gaming, and more
- Ultra-low light capabilities to maintain color image quality without IR
- Dual power failover maximizes camera uptime
- Improved accuracy for facial detection with updated library algorithms
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The ExacqVision IPS02-B12-OI03 brings serious performance to demanding security environments. It features a powerful 2-megapixel indoor/outdoor bullet design built for mission-critical surveillance.
Especially when talking about security, the model IPS02-B12-OI03 sets a new standard in its class. As part of the Tyco Illustra Pro Gen3 series, it combines edge AI intelligence and customizable application profiles. Furthermore, it features robust all-weather construction. Consequently, this delivers a smarter, more reliable camera solution for modern security operations.
At the core of this camera is a 1/2.8-inch CMOS sensor that captures crisp 1080p video at up to 60 frames per second. This provides the clarity and fluid motion needed to identify critical details in real time.
If you require adaptable coverage, the IPS02 model B12 OI03’s motorized 2.7–13.5 mm varifocal lens allows remote zoom and focus adjustments. As a result, installation and fine-tuning are easier. In addition, this feature helps you adapt quickly to changing coverage needs.
Designed to perform around the clock, the IPS02-B12-OI03 features True Day/Night functionality. It includes an infrared illuminator that reaches beyond 197 feet (60.05 m). Therefore, this ensures dependable visibility in complete darkness.
For those looking for unique features, the B12 OI03 IPS02 camera can maintain full-color imagery in ultra-low-light conditions without activating IR. Therefore, this gives you greater scene detail when it matters most.
Triple Exposure Wide Dynamic Range further enhances image quality by balancing harsh backlighting, shadows, and high-contrast scenes with impressive precision.
This camera goes beyond simple video capture by running Illustra Video Intelligence Analytics directly on the device.
It’s worth noting that the IPS02-B12-OI03 adapts to multiple environments. The B12 and OI03 features allow classification of activities, object tracking, and improved facial detection. Notably, this is possible without relying entirely on external processing.
Pre-configured settings for environments like license plate recognition, gaming floors, and retail spaces make deployment faster and more effective. Moreover, these settings help the camera adapt automatically to the demands of specific vertical applications.
Its ONVIF compliance ensures broad compatibility with third-party systems. At the same time, advanced cyber-resilience features help protect against modern threats and unauthorized access.
| Operational | |
| Video Compression | H.264 / H.265 / MJPEG / IntelliZip |
| Max Frame Rate | 2MP @ 60 fps |
| Resolution & Aspect Ratio | 1920×1080 (1080p); 16:9 1664×936 (HD+) 16:9 1280×720 (720p) 16:9 1024×576 (PAL+) 16:9 960×544 (qHD) 16:9 816×464 16:9 640×360 (nHD) 16:9 480×272 16:9 |
| Video Streams | Quad Streaming |
| Imager | Progressive Scan RGB 1/2.8” CMOS |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| Focal Length | 2.7-13.5mm |
| Field of View Wide (H/V) Field of View Telephoto (H/V) | 112°/58° 35°/20° |
| Aperture | f/1.4 (W) f/2.8 (T) |
| Minimum Illumination Color, 1/4s, 30 IRE, AGC B/W, 1/4s, 30 IRE, AGC w/ IR | 0.01 Lux 0.0001 Lux 0.0 Lux |
| IR Distance | Std lens: 197ft (60m) | Telephoto lens: 230ft (70m) |
| Dynamic Range | True WDR 120 dB Technologies |
| Day/Night | True Day/Night |
| Shutter Speed | 1/4 – 1/10,000 |
| ONVIF-Compliant | Profile S |
| Video Intelligence Analytics | Linger, exit, direction, abandoned/removed objects, queue, dwell, enter, object detection, crowd, perimeter |
| Motion Detection Zones | 3 |
| Face Detection | Yes |
| Blur Detection | Yes |
| Privacy Zones | 9 |
| Alarms I/O | 2-1 |
| Analog Video Output | 1 |
| Audio | Bi-Directional Full-Duplex |
| Simultaneous Users | 10 |
| Languages | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, English (default), French, German, Hindi, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Spanish, Swedish, Turkish, Russian |
| Network | |
| Ethernet Interface | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| Configuration Management | |
| Web Browsers | IE 9 and above, Firefox, Safari, Chrome |
| Security | Enhanced Security Mode (forces complex passwords, HTTPS and disables discovery); TLS 1.2 (256-bit cipher minimum); Security Overview Page (status and configuration); RTSP Authentication; IEEE 802.1X Client; Remote Accessible Audit Logs; Role-Based Access Control |
| Onboard Storage | |
| Card Support | microSDXC up to 512GB |
| Pre-Alarm Recording | Yes |
| Recording Format | MP4 File Format |
| Recording Trigger | Video Intelligence, Dry Contact Alarms, Motion Detection, Face Detection |
| VideoEdge TrickleStor | Yes |
| Electrical | |
| Power Input | Power over Ethernet+ (PoE+) IEEE 802.3at Class 4 (48V 0.38A); 24 VAC 1.27A 50/60Hz |
| Power Draw | PoE 18.2W, 24 VAC 30.5W |
| Physical | |

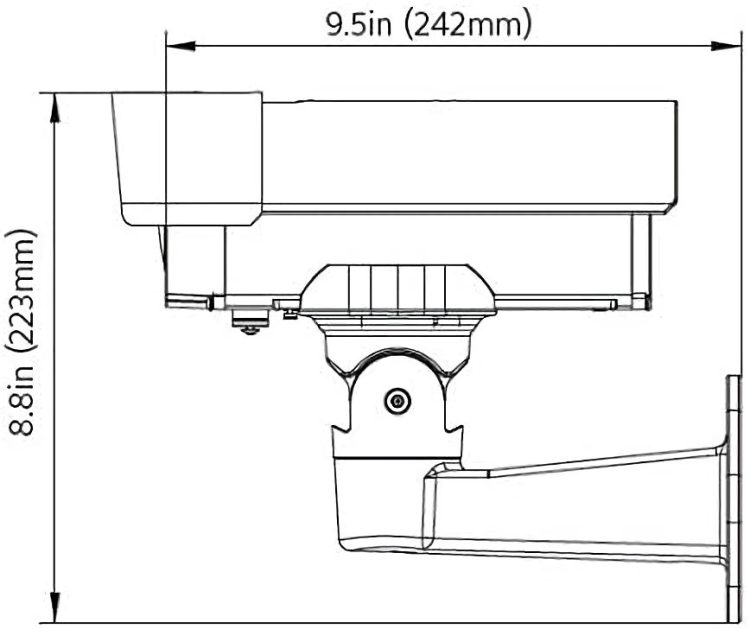

| Dimensions (RxH) | Std lens: Ø 3.15 inches (8 cm) x 8.07 inches (20.5 cm). Telephoto lens: Ø 3.15 inches (8 cm) x 8.54 inches (21.69 cm). |
| Weight | Std lens: 4.3lb Telephoto lens: 4.5lb |
| Housing Color | Signal White—RAL 9003 |
| Operating Temperature | -50°F (-58°C) to 140°F (60°C) |
| Humidity | Up to 90% non-condensing |
| Vandal Resistant | IK10 |
| Outdoor Rating | IP67 |
| Plenum Rating | N/A |
| Regulatory | |
| Safety | UL/IEC 60950-1, 62368-1, 60950-22; IEC 62471; UL Listed; CB Certified |
| Emissions | FCC CFR 47/15b Class A; EN55032 Class A |
| Immunity | EN50130-4 |
| Enviornment | RoHS; Reach, WEEE, waste packaging |
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 10 × 5 × 10 in |
