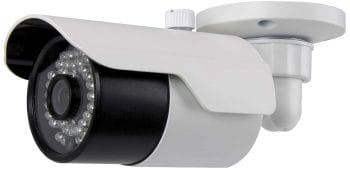

Eyemax NIR C4042D-BW OUTDOOR INFRARED Network Bullet camera 4MP VariFocal Lenses Eyemax NIR C4042D-BW Outdoor INFRARED Network Bullet camera 4MP VariFocal Lenses
- 4MP (2560 × 1440)
- ICR auto-switch, true day/night
- 3D DNR, digital WDR
- ROI coding
- Support local CVBS video output and two-way audio
- Support hardware reset
- PoE power supply
- Support smartphone, iPad, remote monitoring
- Support P2P
- IP66 ingress protection
- Support three streams
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
- SPECIFICATIONS
Description
The Eyemax NIR-C4042D-BW 4 Megapixel Lens Network Camera is an excellent camera for watching and recording things. It offers many advanced features that make it perfect. This network camera can take sharp and detailed pictures with a resolution of 4 megapixels (26881520)
One of the standout features of the Eyemax NIR-C4042D-BW is its D-WDR (Digital Wide Dynamic Range) technology. This allows the camera to adjust the exposure in both light and dark areas of the image. This is particularly useful in challenging lighting conditions, such as low light or high contrast environments. Additionally, the camera’s 3DDNR (3D Digital Noise Reduction) feature reduces image noise and provides a cleaner and clearer image.
This network camera also offers true day and night functionality with an ICR (Infrared Cut Filter Removable) feature. When the illumination is inadequate, the camera will automatically transition to black and white mode and utilize its infrared LEDs to capture images in complete darkness.
The Eyemax NIR-C4042D-BW has a weatherproof housing that is rated as IP66. This makes it suitable for both indoor and outdoor use. This camera can handle rain, snow, or dust, so it’s a good choice for outdoor surveillance needs.
With P2P (Plug and Play) support, the Eyemax NIR-C4042D-BW makes remote viewing and monitoring a breeze. You can access live video streams and replay footage from your phone or tablet by connecting the camera to your network and downloading the mobile app. This feature also allows for easy setup without the need for any complicated network configuration.
The Eyemax NIR-C4042D-BW 4 Megapixel Lens Network Camera is a powerful surveillance tool that has advanced features and is easy to use. With its durable design and exceptional image quality, this camera is a top choice for any security or monitoring needs. Keep your home, business, or any other property safe and secure with the Eyemax NIR-C4042D-BW camera.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 16 × 10 × 10 in |
Brand
Eyemax
Professional Video Surveillance Solutions
Eyemax offers surveillance technology designed for homes, businesses, offices, retail locations, schools, warehouses, and other properties. Available equipment supports both network-based and coaxial security installations.HD Coaxial Camera Solutions
HD-over-coax technology provides high-resolution surveillance while allowing compatible existing coaxial cabling to remain in service. This can provide a practical upgrade path for installations that already use traditional CCTV infrastructure.Available camera styles can support indoor and outdoor monitoring requirements, including dome, bullet, turret, and other common surveillance configurations.Network Camera Solutions
Network-based cameras provide flexible deployment options for modern surveillance environments. Depending on the equipment selected, network technology can support high-resolution imaging, remote monitoring, and integration with compatible recording systems.This approach is suitable for new installations as well as projects requiring system expansion and centralized management.NVR Recording Solutions
Network recording equipment provides centralized storage and management for compatible IP surveillance systems. Recorder selection should consider camera count, resolution, storage capacity, network requirements, and desired recording retention.Remote viewing capabilities can also provide authorized users with access to compatible surveillance systems from supported devices.DVR Recording Solutions
Coaxial recording equipment provides reliable video recording for compatible HD analog camera systems. These recorders can support upgrades to existing surveillance installations while preserving compatible cabling and infrastructure.Hybrid configurations may also provide additional flexibility when combining different surveillance technologies.Complete Security System Solutions
A complete surveillance installation can include cameras, recorders, storage, power equipment, cables, mounts, connectors, monitors, and other accessories.Collsam Security offers Eyemax products and supporting security equipment for new surveillance installations, upgrades, expansions, and replacement projects.NDAA
Only logged in customers who have purchased this product may leave a review.
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2688 × 1520 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Auto Iris | Fixed Iris |
| Min. Illumination | 0.05 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 3.6 mm @F1.6, angle of view: 72° (2.8 mm, 6 mm, 8 mm optional) 3.3 ~ 12 mm @F1.4, angle of view: 80° ~ 38° |
| Lens Mount | M12 and Φ14 optional |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defogging | Yes |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Any angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile @Leve4.1 High Tier |
| Resolution | 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 4MP(1 ~ 30fps) / 2K(1 ~ 30fps) / 3MP(1 ~ 30fps) / 1080P(1 ~ 30fps) / 720P(1 ~ 30fps) 50Hz : 4MP(1 ~ 25fps) / 2K(1 ~ 25fps) / 3MP(1 ~ 25fps) / 1080P(1 ~ 25fps) / 720P(1 ~ 25fps) |
| Bit Rate | 64 Kbps ~ 10 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
| Audio Compression | G711A / U |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Audio | MIC IN × 1 |
| Video Output | CVBS video output (BNC × 1) |
| Functions | |
| Remote Monitoring | IE browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real-time transmission |
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T/28181 ~ 2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 20 ~ 30 m |
| Waterproof | IP66 |
| Others | |
| Power Supply | DC12V / PoE |
| Power Consumption | < 2.5W |
| IR Consumption ON | < 6W |
| Operating Environment | -4 °F (-20 °C) ~ 120 °F (48.89 °C), 10% ~ 90% humidity |
| Dimensions (mm) | Φ 87 × 219 |
| Weight ( net) | 1.34lb (607.81 g) |
| Installation | Wall mounting, pendent mounting |
