EC-B4F28M-V4
$229.00Ea.
Call us or log in for better pricing

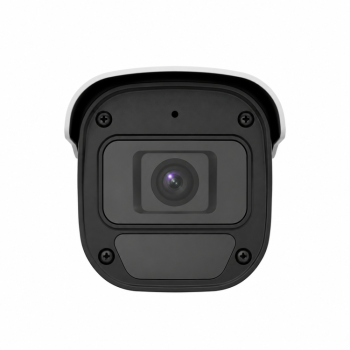

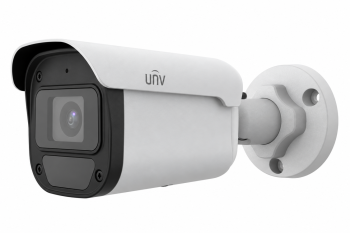

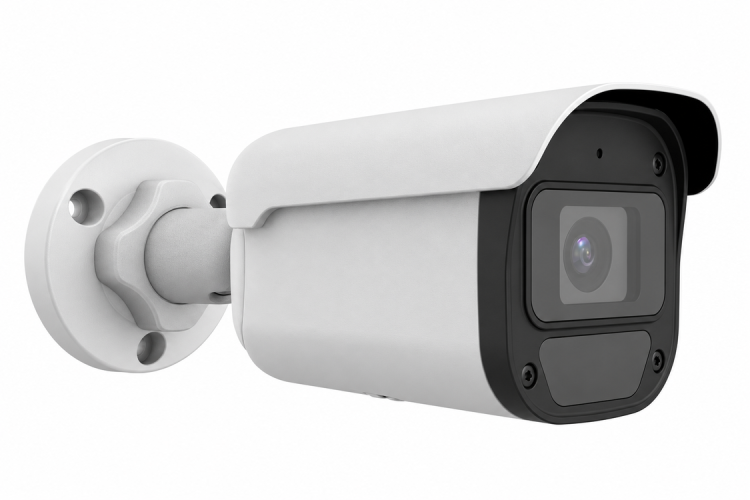

EC-B4F28M-V4 4MP Bullet Network Camera
- 4MP video up to 2560 × 1440
- 2.8mm fixed lens camera
- 30m Smart IR night view
- PoE, 12 V DC, and IP67 metal body
- MicroSD cards up to 128 GB
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Uniview EC-B4F28M-V4 is a 4MP bullet network camera and an IP67 PoE security camera made for video. Its 1/3-inch progressive scan CMOS sensor records up to 2560 × 1440 resolution. The 2.8mm fixed lens camera gives a 97-degree horizontal view. The 30m Smart IR camera can watch parking areas, gates, and walls.
Also, the Uniview EC-B4F28M-V4 uses Ultra 265, H.265, H.264, and MJPEG compression. Therefore, these formats balance image quality and storage use. Also, Smart IR reaches up to 30 meters, or 98 feet, for night views. The 30m Smart IR camera also uses an automatic IR-cut filter for day or night.
The Uniview EC-B4F28M-V4 uses digital wide dynamic range to show detail when bright and dark areas are in one scene. In addition, 2D and 3D noise reduction help make cleaner video.
Installers can power this IP67 PoE security camera through an IEEE 802.3af network link or a 12 V DC source. Also, its metal body works from -30°C to 60°C. Therefore, it is a good fit for exposed sites and weather.
The Uniview EC-B4F28M-V4 has a built-in MicroSD slot that works with cards up to 128 GB for recording. It can send up to three video streams, which can serve users and recording needs.
The camera works with ONVIF Profiles S, G, and T on many video systems. Also, it can serve up to 32 users. It offers motion detection, line-crossing detection, intrusion detection, tampering alarms, privacy masks, and regions of interest.

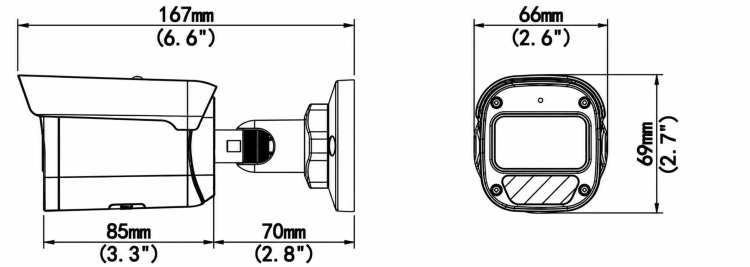

For example, users can set brightness, contrast, color, sharpness, exposure, white balance, and other image controls in a web browser. Thus, it measures 167 × 66 × 69 mm and weighs 0.39 kg. This Uniview 4MP bullet camera joins wide coverage, flexible power, local storage, and network support in a device.
| Camera | |||||
| Sensor | 1/3”, 4.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR on | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8 mm @ 2.0, fixed focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| Illuminator | |||||
| IR Range | Up to 30m (ca. 98 ftft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, main profile, high profile | ||||
| Frame Rate | Main Stream: 4MP (2560×1440), Max 25 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720P (1280×720), max 30 fps Sub Stream: D1 (720×576), Max 30fps; 640*360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, and sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 5.5W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L × W × H) | 6.5 inches (ca. 17 cm) × 2.5 inches (6.35 cm) × 2.5 inches (6.35 cm) | ||||
| Weight | 00.86lb | ||||
| Material | Metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -22°F (-30°C)~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | IP67 Ingression protection | ||||
