V-CELL-HD-C

Experience ultimate security with Vicon V-CELL-HD-C, the high-quality corner-mount camera for demanding environments. Durable, 5 MP sensor, wide lens, night vision, two-way communication, and advanced analytics make it a top choice. NDAA/GSA/TAA compliant for added peace of mind.

V-CELL-HD-C

In stock

Roughneck V-CELL-HD-C a Rugged Corner Mount Camera for Demanding Security Installations.

  • 5 MP delivers the industry’s highest resolution for this class of cameras
  • 2.4 mm lens provides a nice wide-angle view of the entire area
  • Invisible IR eliminates the visible glow, so resident will not be distracted or alerted that the camera is on
  • Starlight low-light technology provides clear color images in extreme low-light conditions
  • IK10 is the maximum rating for protection against vandalism and physical damage
  • Stainless steel water-resistant (IP67) design is corrosion-resistant and easy to clean
  • Integrated housing, camera, lens, and IR illuminators
  • Designed specifically for use in custodial suites and prison cells
  • H.264, MPEG-4 and M-JPEG compression
  • ONVIF certified

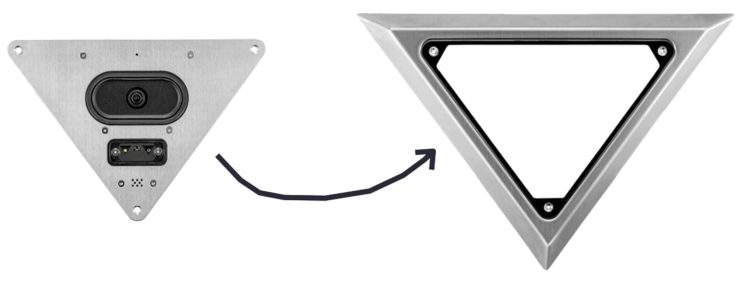

<table style="border-collapse: collapse; width: 62.1359%;">Roughneck V-CELL-HD-CMOD a Rugged Corner Mount Camera for Demanding Security Installations.Replacement Product
Compare

Description

The Vicon V-CELL-HD-C is a top-of-the-line corner-mount camera that is ideal for use in high-security environments such as correctional facilities. Vicon Industries, a well-known name in the security business, makes the camera. It is made to withstand the worst.

The stainless-steel housing is strong and can work in rough conditions. Breaking or tying it together won’t work. This makes it an excellent choice for locations where security is of utmost importance.

Equipped with a 5 MP (megapixel) image sensor, the Vicon V-CELL-HD-C captures high-quality, detailed video footage. This guarantees the clear and precise recording of all activities within the camera’s vision. In addition, the camera features a 2.4mm lens, providing a wide field of view for comprehensive area coverage. It costs less to protect a large area with fewer cameras.

The Vicon V-CELL-HD-C stands out because it can make clear color images even when there isn’t much light. This is possible because it has exceptional night vision and doesn’t give off a red glow. This can be extremely beneficial in certain environments where discretion is essential.

Additionally, the camera comes equipped with a built-in microphone and speaker, enabling two-way communication. This is particularly useful for security personnel to communicate with individuals under surveillance, adding an extra layer of security.

The Vicon V-CELL-HD-C also offers video analytics, including motion detection and tamper detection. Alarms go off when there is movement or tampering to make sure that no strange activity is missed. This provides peace of mind for those responsible for monitoring security within the facility.

Designed specifically for corner mounting, the Vicon V-CELL-HD-C offers easy installation and placement options. In places with limited wall space, mounting in the corner is the best option. Moreover, this camera is NDAA/GSA/TAA compliant, ensuring that it adheres to specific security and government procurement standards. This makes it a reliable choice for government and military facilities that require the highest levels of security.

In conclusion, the Vicon V-CELL-HD-C is a cutting-edge high-security corner-mount camera that seamlessly integrates security standards, advanced features, and durability. With night vision, a wide field of view, and video analytics, it can work in tough spots and is reliable. Choose the Vicon V-CELL-HD-C for your security needs and ensure the safety and protection of your facility.

Datasheet

Download

Experience ultimate security with Vicon V-CELL-HD-C, the high-quality corner-mount camera for demanding environments. Durable, 5 MP sensor, wide lens, night vision, two-way communication, and advanced analytics make it a top choice. NDAA/GSA/TAA compliant for added peace of mind Datasheet.

Quick Installation Guide

Download

Experience ultimate security with Vicon V-CELL-HD-C, the high-quality corner-mount camera for demanding environments. Durable, 5 MP sensor, wide lens, night vision, two-way communication, and advanced analytics make it a top choice. NDAA/GSA/TAA compliant for added peace of mind Quick Installation Guide.

Camera
Image Sensor:1/2.8 inch CMOS
Max Resolution:2592 × 1944 (5 MP)
Image Settings:Digital image effects: flip/mirror/both/off. Configurable brightness, contrast, saturation, hue, sharpness. True WDR. Defog. White balance. Automatic Gain Control. Shutter speed. Day/night mode. Gamma correction. EV (Exposure Value). BLC (Backlight Compensation). HLC (High Light Compensation). Dynamic Noise Reduction (3D/2D). Motion detection (8). Privacy zones (8). Exposure controls: auto, shutter priority, manual, flickerless. Event notification.
Video Analytics:Motion detection. Tamper Detection. Museum Search.
Shutter Speed:Manual: 1/2 ~ 1/10,000
Day/Night Performance:True day/night (IR cut filter). Modes: Auto, color, B&W; D/N switch sensitivity; D/N switch time
Wide Dynamic Range:True WDR (120 dB)
Minimum Illumination:Color: 0.003 lux; BW: 0.001 lux (IR Off); 0 lux (IR On)
IR Distance:Built-in IR LED; 98 ft (29.87 m) effective up to 19.7 × 19.7 ft (6×6 m) room/cell; programmable intensity; Smart IR On/Off; 940 nm; IR mode: auto, on, off.
Lenses
Focal Length:2.4 mm
Max. Aperture:f/2.1
Iris:Fixed
Zoom/Focus Adjust:Fixed
Field-of-View:Horizontal: 121° Vertical: 93°
Network Video Transmission
Network:IEEE 802.3; 10/100 Base-T/TX, auto-sensing; RJ-45
Image Compression:H.265 (HEVC)/H.264 and M-JPEG; Smart Codec
Resolution:2592×1944, 2688×1520, 2048×1536, 1920×1080 (1080P), 1280×960/720, 800×600, 640×480, 640×360, 320×240
Protocol:IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, ONVIF S/G/T
Frame Rate:Max. 30 fps (5 MP)
Streams:Triple streaming.
Single: 5 MP @ 30 fps;
Dual: 5 MP @ 30 fps + 1600×1200 @ 30 fps;
Triple: 5 MP @ 30 fps + 1600×1200 @ 30 fps + 640×480 @ 30 fps
Alarm:1 alarm in/1 relay out (30V, 1A)
Audio:1 audio input/1 audio output (line in/out); built-in microphone (waterproof IP67) and speakers (sufficient for a cell/elevator): G.711a-law/G.711mu-law
Users:10 users
Web Browser:Mozilla® Firefox®, Google Chrome®, Microsoft® Edge
Security:User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance
Local Recording:Micro-SD slot provided; customer supplied card; supports up to 1 TB
Mechanical
Construction:Enclosure: brushed stainless steel; mounting frame/assembly 14 gauges. Windows: polycarbonate; IR, 5 mm thick; camera, 6 mm thick
Camera Angle Adjustment:Integral camera/lens module; adjustable tilt
Mounting:Designed to be mounted into a 90° corner. Front cover secured with security screws.
Dimensions:12.4 × 14.7 × 2.9 in. (315 × 372 × 73 mm)
Weight:3.3 lb (1.5 kg)
Electrical
Input Power:24 VAC, 12 VDC, PoE IEEE 802.3af Class 3
Power Consumption (IR On):Max: 12.95 W
Connectors and Indicators:Ethernet/PoE: RJ-45; Power: terminal block; Alarm In/Out: screw terminal; Audio In/Out: screw terminal; Reset button; Factory default button; Local recording: Micro SD card slot (customer-supplied card; supports up to 1 TB).
Environmental
Operating Conditions:Temp: -4 °F (-20 °C) to 140 °F (60 °C)
Humidity: up to 90%, relative, non-condensing
Approvals:UL/CUL (with rear bracket); CE/FCC Class B; IP67, IK10; ONVIF Profile: S/T/G; RoHS
Country of Origin:Taiwan
Warranty:5 years
