EC-D4F28M-V3

0 out of 5

Original price was: $2,587.99.Current price is: $94.95.

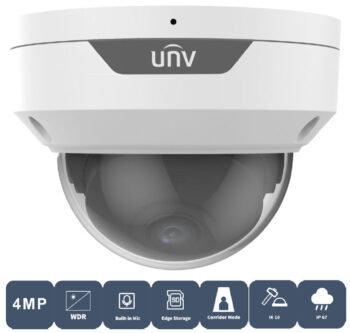

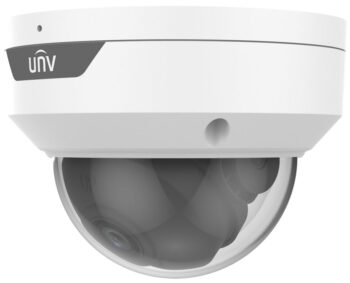

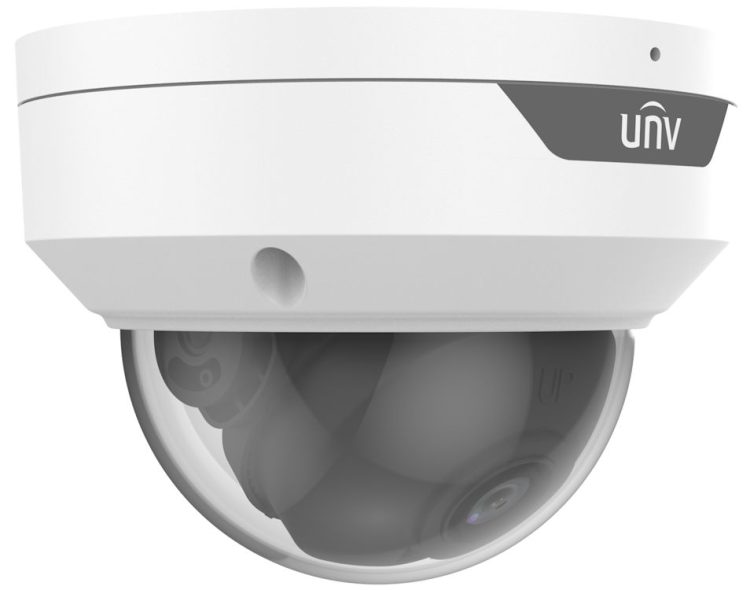

Uniview EC-D4F28M-V3 4MP True WDR NDAA Compliant IR IP Dome Camera

High-quality image with 4MP, 1/2.9”CMOS sensor
4MP (2560×1440)@20fps; 3MP (2304×1296)@30/25fps; 2MP (1920×1080)@30/25fps; 720P (1280×720)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart IR, up to 98ft (29.87 m) IR distance
Support 128 G Micro SD card
Support PoE power supply
3-Axis

SKU: EC-D4F28M-V3 Categories: 4-Megapixel Network IP Cameras, Network IP Cameras Tags: 1/3-in. 4 MP Progressive-scan CMOS Sensor, 2D / 3D DNR ( Digital Noise Reduction), BLC Backlight compensation, Dual H.265 and H.264 Codecs, HLC Highlight compensation, MicroSD card slot supports up to 128GB, MJPEG Video Compression, NDAA Compliant;, ONVIF Profile S/G/T, PoE (IEEE802.3 AF), PoE Network Dome Camera, Ultra 265

Description
Product Documents
Specifications
Additional information
Collsam Brands

Description

An excellent 4-megapixel (4MP) IP security camera that is resistant to vandalism is the Uniview EC-D4F28M-V3. It is perfect for entry-level professional surveillance. Its exceptional features and robust design make it widely used for both residential and commercial properties.

This camera captures high-definition video in 2560 × 1440 resolution at 20 frames per second (fps) by default. But it can be set up to 25 frames per second. The CMOS sensor’s 1/2.9” progressive scan makes this possible. As a result, the sensor ensures crystal-clear footage at all times.

With a 2.8 mm fixed wide-angle lens, the Uniview EC-D4F28M-V3 offers a broad 101.5° horizontal field of view. This allows it to cover a large area with just one camera. Therefore, it is ideal for both indoor and outdoor surveillance.

Even in low light conditions, this camera delivers exceptional performance with its Smart IR LEDs. These offer up to 98 feet (29.87 m) of infrared night vision in 0 lux environments. This ensures that your property is protected round the clock. Thus, it remains effective even in the darkest of nights.

One of the most impressive features of the Uniview EC-D4F28M-V3 is its support for the latest video codecs such as Ultra 265, H.265, H.264, and MJPEG. These codecs help to reduce storage space and bandwidth requirements. Importantly, they do this without compromising on the video quality.

To further enhance its surveillance capabilities, the Uniview EC-D4F28M-V3 comes with an edge storage slot that supports a microSD card up to 128 GB (sold separately). This allows you to store footage directly on the camera. Consequently, it eliminates the need for a separate storage device.

Plus, with the Power over Ethernet (PoE) technology, this camera can transfer power and data over a single RJ45 cable. Thus, it is easy to install and maintain. It can also be powered locally with a 12V DC plug.

Datasheet

Download

Uniview EC-D4F28M: 4MP Ultra 265 Cameras with Smart IR, up to 30m IR Distance, 128 GB MicroSD, PoE and 3-Axis. High-Quality Images and H.265, H.264, MJPEG Datasheet.

User's Manual

Download

Uniview EC-D4F28M: 4MP Ultra 265 Cameras with Smart IR, up to 30m IR Distance, 128 GB MicroSD, PoE and 3-Axis. High-Quality Images and H.265, H.264, MJPEG User's Manual.

Camera
Sensor	1/2.9”, progressive scan, 4.0 megapixel, CMOS
Minimum Illumination	Color: 0.01 lux (F2.0, AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan 8° to 360°		Tilt: 0° to 68°			Rotate: 10° to 360°
S/N	>52dB
WDR	120dB
Lens
Lens Type	2.8mm @F2.0
Iris	Fixed
Field of View (H)	101.5°
Field of View (V)	55.6°
Field of View (D)	111.6°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)
	2.8	63.0		25.2	12.6
Illuminator
IR Range	Up to 98ft (29.87 m)
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (2560×1440), Max 20fps; 3MP (2304×1296), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps Sub Stream: D1 (720×576), Max 30fps; 640×360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps;
Video Bit Rate	128 Kbps~6144 kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Dual streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Storage
Edge Storage	Micro SD, up to 128GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4.0W
Power Interface	Ø 5.5mm coaxial power plug

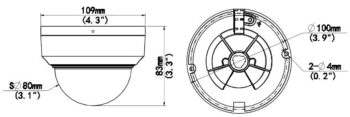

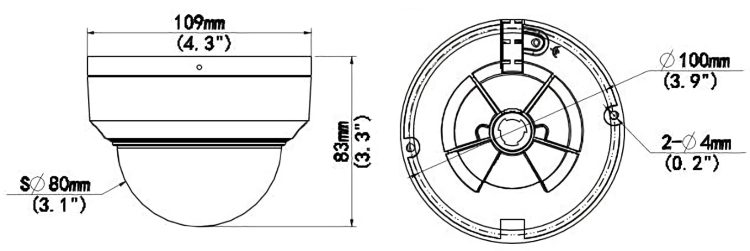

Dimensions (Ø x H)	Ø4.3 inches (7.62 cm) x 3.3 inches (8.38 cm)
Weight	0.79lb (0.36 kg)
Material	Metal + Plastic
Working Environment	-22°F (-30°C)~ 140°F ( 60°C ), Humidity: ≤95% RH (non-condensing)
Storage Environment	-22°F (-30°C) ~ 140°F ( 60°C ), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
