N5B-4CA2

0 out of 5

( There are no reviews yet. )

Original price was: $339.99.Current price is: $210.95.

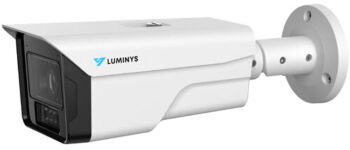

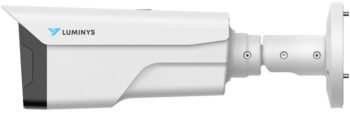

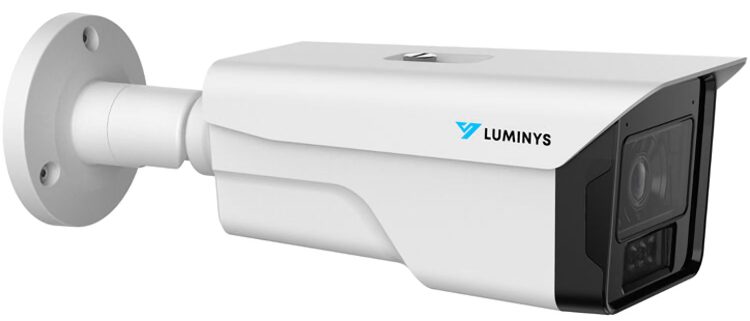

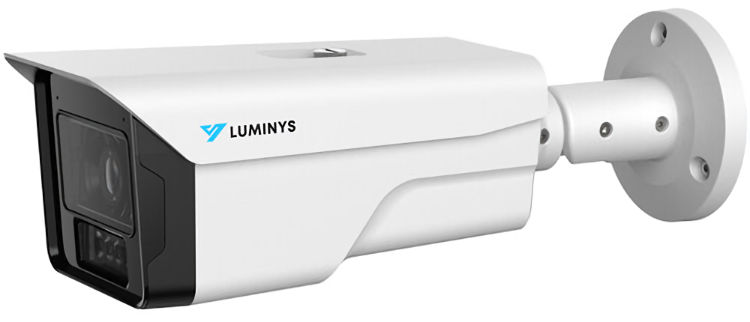

Luminys N5B-4CA2 LumiColor 4MP Outdoor Network Bullet Camera

4MP Bullet Housing
2.8 mm Lens
LumiColor with White-Light LEDs
Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
LumiSearch
iMD
LumiPower

SKU: N5B-4CA2 UPC: 810161160792 Categories: 4-Megapixel Network IP Cameras, Network IP Cameras

Description

The Luminys N5B-4CA2 is a top-of-the-line outdoor network bullet IP security camera. It is specially designed to satisfy the strict NDAA compliance requirements. Boasting a 4-megapixel resolution, this camera delivers crystal-clear footage with stunning clarity and detail.

With its integrated white-light LEDs and wide F1.0 aperture, it can capture full-color video day or night. This is true regardless of lighting conditions. This means that even in complete darkness with 0 lux, the Luminys N5B-4CA2 will continue to produce high-quality footage. As a result, it provides you with reliable and comprehensive surveillance coverage.

Featuring a 2.8 mm fixed lens, this camera offers a wide 112° horizontal angle of view. This ensures nothing important is missed. With a recording resolution of 2688 × 1520 pixels and a frame rate of up to 30 frames per second, this camera captures every moment with stunning clarity.

Therefore, it is an ideal choice for security professionals and businesses alike. Whether it is monitoring a large outdoor area, such as a parking lot or a warehouse, or keeping an eye on specific entry points, the Luminys N5B-4CA2 is a versatile and efficient tool for any security application.

One of the most impressive features of the Luminys N5B-4CA2 is its intelligent edge AI capabilities. This camera comes equipped with advanced functionalities, such as line crossing, intrusion, loitering detection, parking detection, face detection, heat maps, and people counting.

These features not only enhance the security of your premises but also provide valuable insights and data for business purposes. Additionally, the camera utilizes reference images to track and pinpoint specific human or vehicle targets across connected surveillance networks. In this way, it ensures that nothing goes unnoticed.

Easy operation and installation are key features of the Luminys N5B-4CA2. It supports long-distance Power over Ethernet (PoE) transmission data and power delivery of up to 3,000 feet (0.91 km). This eliminates the need for additional power sources and reduces installation costs.

Built of durable metal, the camera is IP67 weatherproof and IK10 vandal resistant. This means that it can withstand harsh outdoor conditions and is resistant to tampering and vandalism. As a result, it is a reliable and long-lasting security solution.

In conclusion, the Luminys N5B-4CA2 is a powerful and advanced outdoor network bullet IP security camera. It offers NDAA-compliant features, intelligent edge AI capabilities, high-resolution footage, and durable construction.

It’s a great option for anyone searching for a high-quality surveillance system because it can record full-color video day or night, even in total darkness, and it’s simple to install and use. Not only that, but it offers both security and business benefits.

Camera
Luminys Series	N5 Series (Mainstream)
Image Sensor	1/1.8-in. 4MP Progressive CMOS
Maximum Resolution	2688 × 1520
Minimum Illumination	0.0005 Lux at F1.0 0 Lux With White Light On
Number of Illuminators	Four (4) White-Light LEDs
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	Up to 98.0 ft (29.87 m)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Pan/Tilt/Zoom	Pan: 0° to 360° Tilt: 0° to 90° Zoom: 0° to 360°
S/N Ratio	> 56 dB
Lens
Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperature	F1.0
Field of View	Horizontal: 112° Vertical: 60° Diagonal: 135°
Close Focus Range`	5.3 ft (1.62 m)
DORI Distance	Detect: 190.9 ft (58.19 m) Observe: 76.4 ft (23.29 m) Recognize: 38.1 ft (11.61 m) Identify: 19.0 ft (5.79 m)
Video
Compression	H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream Only)
Stream Capability	Three (3) Streams
Resolution	4MP (2688 × 1520), 3MP (2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Maximum Frame Rate	Main Stream: 2688 × 1520 at 1–30 fps Sub Stream 1: D1 at 1–30 fps Sub Stream 2: 1920 × 1080 at 1–30 fps
Video Bit Rate	H.265: 12 kbps to 16384 kbps H.264: 32 kbps to 16384 kbps
Bit Rate Control	CBR/VBR
Day/Night	Color, Black and White
Light Balancing	Wide Dynamic Range (130 dB)
Noise Reduction	3D NR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower)
Mirroring	Supported
Region of Interest	Four (4) Zones
Privacy Masking	Four (4) Zones
Analytics
Video Content Analytics	Line Crossing, Intrusion, Loitering Detection, Parking Detection
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans
Face Detection	Capture Snapshots and Facial Attributes
Heat Map	Supported
People Counting	Tripwire and In-Area People Counting, Queue Management With Report
LumiSearch	Supported When Used With LumiSearch-Enabled NVRs
LumiAnalytics	Supported
Object Monitoring	Supported
Audio
Compression	PCM, G.711a, G.711Mu, G.726, G.723
Interface	Input: Built-in Microphone
Alarm
Event	No SD card, SD card full, SD card error, network disconnect, IP conflict, unauthorized access, motion detection, video tampering, voltage detection, security exception, line crossing, intrusion, fast motion, abandoned object, missing object, loitering detection, people gathering, scene changing, audio detection, external alarm, face detection, iMD, area people counting, stay alarm, people counting, people number exception detection.
Network
Protocol	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x
Interoperability	ONVIF (Profile S/G/T), API, SDK
Browser	Chrome, Firefox
Client	LumiViewer, LumiViewer Mobile App
Strorage	FTP, SFTP, NAS, MicroSD Card (Max. 512 GB)
Electrical
Power Supply	12 VDC, PoE (802.3at), LumiPower
Power Consumption	12 VDC • Maximum: 8.9 W • Normal: 2.7 W PoE • Maximum: 11.6 W • Normal: 4.2 W
Construction
Net Weight	2.3 lb (1.04 kg)
Gross Weight	2.9 lb (1.32 kg)
Operating Temperature	-40°F (-40°C) to 140°F (60°C) < 95% RH (Non-Condensing)
Storage Temperature	-40°F (-40°C) to 140°F (60°C)
Protection Ratings	IP67, IK10

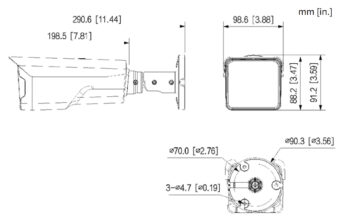

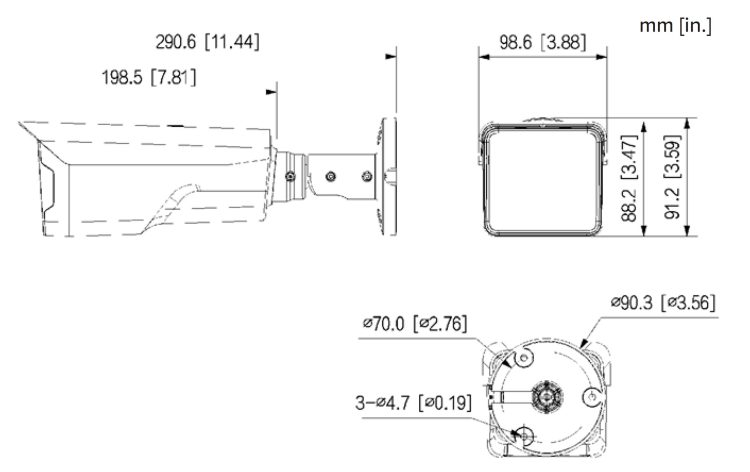

Dimensions (L × W × H)	11.4 inches (28.96 cm) × 3.9 inches (9.91 cm) × 3.5 inches (8.89 cm)
Material	Metal
Certifications and Compliance
Certifications	FCC, UL, IC
Compliance	NDAA

Additional information

Weight	2.9 lbs
