Description
One of the standout features of the Eyemax NIB E4042 is its advanced video compression technology. It uses both Smart H.265+ and H.264+ to provide efficient video storage without compromising on quality. This allows you to send two streams at once, so you can choose the best quality for your needs. Whether you require crisp, high-resolution images or smoother video with less bandwidth usage, this camera has you covered.
There is a top-of-the-line surveillance camera that delivers exceptional performance and high-resolution images. With a 1.2/9′′ 4Megapixel progressive CMOS, it can capture clear and detailed footage at 20/25/30fps. This makes it perfect for a wide range of applications, from monitoring small spaces to larger outdoor areas.

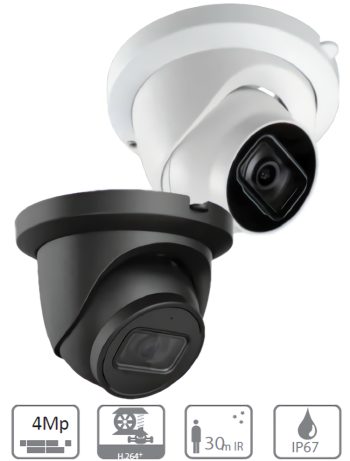

The Eyemax NIB E4042 has great features and looks good in any environment. The compact form factor and affordable price make it a great choice for both indoor and outdoor applications. Available in both black and white, this camera is sure to meet your visual and aesthetic needs.
The Eyemax NIB E4042 can capture clear images in environments with high-contrast lighting. Check areas with bright and dark spots, like entrances with bright sunlight or parking lots with low lighting, with this. High-quality footage in any lighting conditions makes it a reliable choice for 24/7 surveillance.
The Eyemax NIB E4042 has advanced features like 3DNR, AWB, AGC, and BLC. These help make the picture look better in different lighting situations. With its 2.8mm fixed lens and max length of 98.43ft (30m), you can monitor even in the darkest of environments. It is also weatherproof and can withstand harsh outdoor conditions, ensuring its durability and longevity.
In conclusion, the Eyemax NIB E4042 IR 4Megapixel Fixed Eyeball camera is a top-of-the-line surveillance camera that offers high-resolution images, advanced video compression technology, an elegant design, and a range of features to enhance image quality in any lighting situation. Its compact form factor and affordable price make it a perfect choice for various indoor and outdoor applications, and its durability ensures that it will continue to provide reliable surveillance for years to come.
Camera | |
---|---|
Image Sensor | 1/2.9” CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 30 m (98.43 ft) (IR LED) |
Illuminator On/Off Control | Auto; manual |
Illuminator Number | 1 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8mm |
Max. Aperture | F1.6 |
Field of View | 2.8mm: H: 95°; V: 52°; D: 114° 3.6mm: H: 78°; V: 41°; D: 94° |
Iris Control | Fixed |
Close Focus Distance | 2.8mm: 2.95 ft (0.9 meters) 3.6mm: 5.25 ft (1.6 meters) |
DORI Distance (2.8mm) | Detect: 208.66 ft (63.6 m) Observe: 83.33 ft (25.4 m) Recognize: 41.67 ft (12.7 m) Identify: 20.99 ft (6.4 meters) |
DORI Distance (3.6mm) | Detect: 280.18 ft (85.4 m) Observe: 112.20ft (34.2 m) Recognize: 56.10ft (17.1 m) Identify: 8.5m (27.89ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@ (1–20 fps) / 2560 × 1440@ (1–25/30 fps) Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 4M (2688 × 1520 / 2560 × 1440) 3M (2304 × 1296) 1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576 / 704 × 480) VGA (640 × 480) CIF (352 × 288 / 352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto; natural; streetlamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Image Rotation | 0° / 90° / 180° / 270° (Support 90° / 270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection; security exception |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
User/Host | 6 (Total bandwidth: 36 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE / Chrome / Firefox |
Management Software | DSS; DMSS |
Mobile Client | iOS; Android |
Cybersecurity | Configuration encryption / Trusted / execution / Digest / Security logs / WSSE / Account / lockout / syslog / Video encryption / 802.1x / IP/MAC / filtering / HTTPS / Trusted upgrade / Trusted boot / Generation and importing of X.509 certification |
Certification | |
Certifications | CE-LVD: EN 62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
Environment | |
Operating Temperature | -40 °F (-40 °C) to 140 °F (60 °C) |
Operating Humidity | ≤95% |
Storage Temperature | -40 °F (-40 °C) to 140 °F (60 °C) |
Protection | IP67 Ingress Protection |
Structure | |
Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
Product Dimensions | 3.90 inches (9.91 cm) × Φ 4.80 inch (12.19 cm) |
Net Weight | 1.06 lb (0.48 kilogram) |
Gross Weight | 1.5 lb (0.68 kg) |
Additional information
Weight | 3 lbs |
---|---|
Dimensions | 6 × 6 × 7 in |
Color | Gray, White |
