DWC-MVC8Wi28TW
Original price was: $810.00.$486.00Current price is: $486.00.each

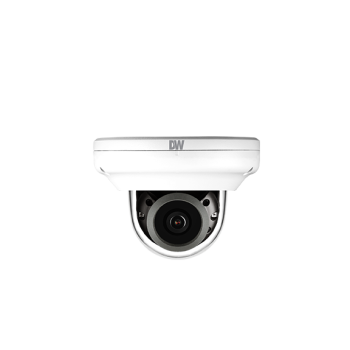

Digital Watchdog DWC-MVC8Wi28TW 4K IVA Dome Camera
- 4K sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA)* NOTE: For existing cameras, contact your DW sales representative for a complimentary IVA+ plugin update.
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100′ Smart IR with intelligent camera sync for clear B/W images with no need for external light
- CleanView hydrophobic dome coating repels water, dust and grease.
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera’s field of view.
- Two-way audio for direct communication between the monitoring station and the camera’s location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The DWC-MVC8Wi28TW 4K IVA dome camera is an 8MP network dome camera with an IP67 IK10 camera housing for indoor and outdoor surveillance. Additionally, the Digital Watchdog dome camera uses a 1/2.8-inch CMOS sensor to record detailed 3840 × 2160 video at up to 30 frames per second.
Its fixed 2.8 mm lens supplies a 105.5° horizontal view for entrances, corridors, parking areas, retail spaces, and building perimeters. As an 8MP network dome camera, it captures detail while maintaining efficient network operation. The IP67 IK10 camera housing protects the electronics from weather and impact.
Smart IR supports black-and-white monitoring up to 100 feet when ambient light disappears. In addition, Star-Light Plus improves low-light color performance. True 120 dB WDR balances bright and dark areas in the same scene, while Smart DNR reduces image noise. H.265, H.264, and MJPEG compression options help manage bandwidth and storage.
The DWC-MVC8Wi28TW 4K IVA dome camera includes intrusion, line crossing, counting line, loitering, enter, exit, and tamper detection. Therefore, teams can focus on meaningful events instead of reviewing continuous footage. Audio input and output, alarm connections, and microSD storage up to 1 TB support deployments.
The Digital Watchdog dome camera connects through Gigabit Ethernet and accepts PoE Class 3 or 12 VDC power. Moreover, ONVIF Profile S compatibility supports integration with recorders and video management platforms. Cybersecurity features include HTTPS, IP filtering, digest authentication, and 802.1X access control. Multiple streams provide viewing and recording settings.
Additionally, browsers simplify setup and camera system management.

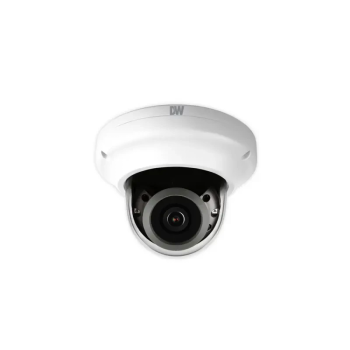

This 8MP network dome camera includes an IP67 IK10 camera housing, aluminum construction, and CleanView hydrophobic coating. Finally, the DWC-MVC8Wi28TW 4K IVA dome camera includes NDAA compliance and a five-year manufacturer warranty.
| Image | |
|---|---|
| Active Pixels | 3840 (H) x 2160 (V) |
| Image sensor | 4K 1/2.8″ CMOS sensor |
| Maximum resolution | 4K |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.18 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 3952 (H) x 2320 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 105.5° |
| Illumination Distance | 100′ range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 56.3° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, and tamper detection. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800×600, VGA, 768×432, D1, CIF |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS DHCP DNS FTP HTTP HTTPs ICMP NTP RTP (UDP/TCP) RTSP SMTP SNMPv1/v2/v3 (MIB-2) SSL TCP/IP UDP Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | DW Spectrum® ExacqVision Technologies Genetec Inc. Milestone Systems |
| Environmental | |
| Camera Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Camera Startup Temperature | -4°F (-20°C) to 122°F (50°C) |
| Compliance |    |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |

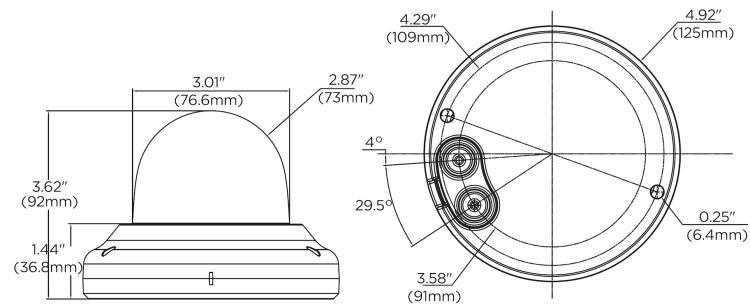

| Camera Dimensions (H X W X D) | Ø4.92 inches (125 mm) × 3.62 inches (92 mm) |
| Camera Weight | 1.14 lb (0.51 kg) |
| Housing | Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: 10W, 833mA PoE 13W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
