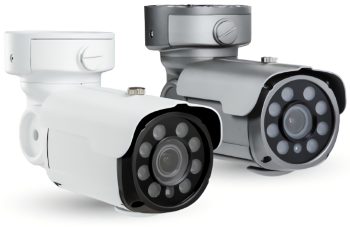

NIR-MP8742V

Eyemax NIR-MP8742V, featuring a Sony 1/1.8” RGB Bayer Array CMOS sensor, waterproof housing, and advanced features for day and night monitoring. 0 Lux at IR On and 08 IR LEDs provide clear images in any lighting. Trust in its wide dynamic range, noise reduction, and motion detection capabilities for maximum security. The motorized lens allows for easy adjustment, and the privacy mask ensures discreet monitoring. Get the best in surveillance technology Gray or White Color.

NIR-MP8742V

$247.95

In stock

$247.95

Eyemax NIR-MP5342V-B3610 8 Megapixel Outdoor IR Network Bullet Camera, Motorized Varifocal Lens

  • Sony 1/1.8″ RGB Bayer Array CMOS Sensor
  • Upgraded Waterproof Housing IP68 rating
  • 0 Lux at IR On IR LED 08 pcs
  • Wide Dynamic Range Digital WDR ATR-EX
  • Day and Night Mode Automatic ICR
  • Noise Reduction 2D/ 3D DNR
  • BLC
  • HLC
  • Tamper
  • Defog
  • Image Effect
    •  Mirror
    • Flip
    • Privacy Mask Max.8 Area Selection
  • Video Motion Detection Max.4 Area Selection
  • Motorized Varifocal 3.6~10mm Lens
  • Gray or White Color
Compare

Description

The Eyemax NIR-MP8742V is a top-of-the-line surveillance camera equipped with advanced features to provide clear and detailed footage. It is designed with a Sony 1/1.8″ RGB Bayer Array CMOS sensor, ensuring high-quality images and videos. The sensor also allows for a wider dynamic range, providing enhanced color accuracy and contrast even in low-light conditions.

This upgraded version also comes with a waterproof housing (IP68 rating), making it suitable for outdoor use, rain or shine. The 8 infrared LED lights and 0 Lux at IR On feature make it an ideal choice for 24/7 surveillance. The camera’s IR LEDs automatically turn on when the light conditions are low, ensuring that no details go unnoticed.

The Eyemax NIR-MP8742V also offers various modes to optimize its performance in different lighting situations. With its Day and Night mode, the camera adjusts its settings for optimal performance during the day and night. It also has a Digital WDR ATR-EX feature that makes the image brighter and darker. Automatic day night noise reduction improves clarity and minimizes the appearance of grain in dim lighting.

This camera comes with a Motorized 3.6~10 mm lens, allowing you to adjust the viewing angle remotely. The camera doesn’t have to move when you need to watch a lot of stuff. There are also features that improve the image’s visibility and minimize distortion.

If there is an attempt to tamper with the camera, the Tamper Defog Image Effect will alert the user. The Defog feature also improves visibility by removing fog and haze from the video footage. Additionally, this camera allows for advanced customization with mirror flip and privacy mask features. You can adjust the video image’s orientation and use the privacy mask to block out specific areas within the frame, ensuring the privacy of individuals.

Finally, the Eyemax NIR-MP8742V has an advanced Video Motion Detection (VMD) feature that detects and tracks motion within the camera’s field of view. You can select up to four areas where you want the camera to detect motion, ensuring that you only get notifications for relevant activities. With its Max.8 Area Selection, you can also set up the camera to monitor up to eight different areas and receive notifications when there is any movement. In summary, the Eyemax NIR-MP8742V is a versatile and powerful surveillance camera that provides reliable security and peace of mind.

Datasheet

Download

Eyemax NIR-MP8742V, featuring a Sony 1/1.8” RGB Bayer Array CMOS sensor, waterproof housing, and advanced features for day and night monitoring. 0 Lux at IR On and 08 IR LEDs provide clear images in any lighting. Trust in its wide dynamic range, noise reduction, and motion detection capabilities for maximum security. The motorized lens allows for easy adjustment, and the privacy mask ensures discreet monitoring. Get the best in surveillance technology Gray or White Color Datasheet.

LENS  (Optional)Focal Length : 3.6 ~ 10.0 mm / F No. : 1.5±5% / Format : 1/1.8 inch Field of View : H109 ~ H42
IMAGEImage SensorSony 1/1.8 6.44Megapixel RGB Bayer Array CMOS Sensor
Number of Effective Pixels3096(H) × 2080(V) approx. 6.44M pixels
Min. Illumination(Color Mode: 0.15 l x at 50IRE/30fps) (B/W Mode: 0.09 l x at 50IRE/30fps)
Scanning ModeProgressive Scan
S/N Ratio51dB
CAMERAFunctionWide Dynamic Range (Digital WDR (ATR-EX)) / Day and Night Mode (Automatic, Day, Night) Noise Reduction (2D-NR, 3D-NR) / BLC / HLC / LDC / Tamper / Defog / Image Effect (Mirror, Flip)
Privacy Mask (Max.8 Area Selection) / Video Motion Detection (Max.4 Area Selection)
Auto Exposure ModeAutomatic (Priority: Frame rate/Low noise), Manual
Shutter Speed ControlAutomatic (Min. 1/135,000 sec ~ Max. 1/60 sec) / Manual (Min. 1/10,000 sec ~ Max. 1/10 sec)
Gain ControlAutomatic: Min. 1.2dB ~ Max. 54dB / Manual: Min. 1.2dB ~ Max. 54dB, Default 1.2dB
Auto White Balance ModeATW-Indoor/Outdoor, Shade, Clear sky, Fluorescent light, Light bulb, Flame, Manual
Auto Focus (Optional)One Push, Manual, (Automatic)
ZoomOptical Zoom (Optional) : Motorized 2.8x / Optical Zoom Speed (Optional) : 1 ~ 6 Steps / Digital Zoom : 16x
Corridor Format90 /270
NETWORKVideoVideo Compression (H.264(High, Main, baseline profile), MJPEG) / Video Frame Rate (Up to 15fps@2592 × 1944p)
Video Resolution2592 × 1944, 2048 × 1536(QXGA), 1920 × 1080(Full-HD), 1280 × 1024(SXGA), 1280 × 720(HD),
704 × 480(4CIF/NT), 704 × 576(4CIF/PAL), 640 × 480(VGA), 352 × 288(CIF), 320 × 240(QVGA)
Video StreamingSimultaneously H.264 and MJPEG (Triple Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode
Audio StreamingTwo-way(G.711)
FTP UploadingMJPEG Still Image
EventEvent In (On boot/Trigger/Network Loss/Tampering/Motion) / Event Out Notification (E-mail, FTP)
Login AuthorityAdministrator, Operator, Guest
Event BufferingFTP : Pre- / Post-Event Time: 0 ~ 30sec, FPS: 1 ~ 2 fps
Manual TriggerStill Image Capture
SecurityMulti User Authority, IP Filtering, HTTPS
Network Time SyncSynchronize Computer/NTP Server, Manual
Software ResetRestart, Reset, Factory Default
Auto RecoveryBackup, Restore
Remote UpgradeUsing Web Browser
ProtocolsTCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf
Client SoftwareBuilt-In Web, ONVIF Compatible 3rd Party VMS
Max. User Connection.10 Users
SDK SupportAPI, ONVIF Profile S Compliant
EXTERNAL IN/OUTEthernet TX/RxRJ-45 (10/100Base-T)
ControlIR_LED (IR_LED Control On/Off) / Day & Night (IR_Cut_Filter Exchange) / Iris (DC-Iris, Fixed)
Alarm (Alarm-In 1/Alarm-Out 1) / Zoom (Max. 2.8x)/ Focus (One-Push, Manual, (Automatic)) / Audio (Line-In/Line-Out)
SD Card (Option)SDHC/SDXC
OPERATION ENVIRONMENTSOperating Humidity (0 ~ 90% (non-condensing)) / Operating Temperature 14 °F (-10 °C) ~ 122 °F (50 °C)
Power Supply (DC12V / PoE) / Power Consumption (4W(without IR_LED))

Additional information

Weight5 lbs
Dimensions12 × 6 × 6 in
Color

Gray, White
