Uniview IPC3535SR4-ADZK-H 5MP Dome Camera

5MP video resolution
2.8–12 mm motorized varifocal lens
Smart IR illumination up to 131.2 ft (40 m)
120 dB true WDR
Built-in microphone and MicroSD storage
IP67 and IK10 protection
PoE and ONVIF compatibility

SKU: IPC3535SR4-ADZK-H Categories: 5 Megapixel Network IP Cameras, Network IP Cameras Tags: 120 dB True WDR, 40m IR Night Vision, 5MP Network Camera, Built-in Microphone, IK10 Vandal Resistant, IP67 Weatherproof, MicroSD 512GB, motorized varifocal lens, NDAA Compliant;, ONVIF, PoE, Vandal-Resistant Dome

Description

The Uniview IPC3535SR4-ADZK-H is a Uniview 5MP dome camera for indoor and outdoor security. This motorized varifocal IP camera records clear video up to 2880 × 1620. Additionally, it is a 40m IR dome camera. Its metal case makes it an IP67 IK10 network camera for wet or busy areas.

The IPC3535SR4-ADZK-H 1/2.7-inch CMOS sensor gives clear images in mixed light. In addition, 120 dB true WDR balances bright doors and dark backgrounds. Smart IR light supports night viewing up to 131.2 ft (40 m). Also, the built-in microphone adds sound to live and recorded video.

The Uniview IPC3535SR4-ADZK-H has a 2.8–12 mm autofocus lens that lets installers change the view from a wide scene to a closer look. Therefore, this motorized varifocal IP camera works well at doors, stores, offices, warehouses, schools, and similar sites. Furthermore, its three-axis dome design makes aiming easier after setup.

Ultra 265, H.265, H.264, and MJPEG help control network load and file size. The Uniview IPC3535SR4-ADZK-H supports MicroSD cards up to 512 GB, plus ANR and NAS storage through NFS. Smart alerts include motion detection, tampering detection, audio detection, human-based cross-line detection, and human-based intrusion detection. As a result, this 40m IR dome camera can handle daily viewing and alerts.

Setup for the IPC3535SR4-ADZK-H is simple because the camera accepts 12 VDC or IEEE 802.3af PoE. Also, it connects through 10/100 Base-TX Ethernet. Moreover, it supports ONVIF Profiles S, G, and T, along with API and SDK support. Password protection, HTTPS, login controls, and IP address filtering help keep access safe.

Finally, 6 kV surge protection helps guard the camera from power spikes. It works from -22°F to 140°F. This IP67 IK10 network camera is ready for tough security sites. The NDAA-compliant Uniview IPC3535SR4-ADZK-H supports new systems, upgrades, and added coverage. Review the Specification tab.

Model	IPC3535SR4-ADZK-H
Resolution	5 MP, up to 2880 × 1620
Sensor	1/2.7-inch progressive-scan CMOS
Lens	2.8–12 mm autofocus motorized varifocal, F1.6
Field of View	Horizontal: 96.4°–32.7°; Vertical: 51.3°–18.6°; Diagonal: 101.2°–37.2°
Minimum Illumination	Color: 0.001 lux; 0 lux with IR
IR Distance	Up to 131.2 ft (40 m)
WDR	120 dB true WDR
Compression	Ultra 265, H.265, H.264, MJPEG
Storage	MicroSD up to 512 GB; NAS (NFS); ANR
Audio	Built-in microphone
Network	1 × RJ45 10/100 Base-TX Ethernet
Compatibility	ONVIF Profiles S, G, and T; API; SDK
Power	12 VDC ±25% or IEEE 802.3af PoE; maximum 8 W
Protection	IP67, IK10, 6 kV surge protection
Operating Environment	-22°F (-30°C) to 140°F (60°C), ≤95% RH non-condensing

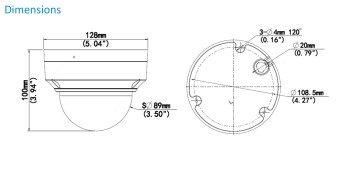

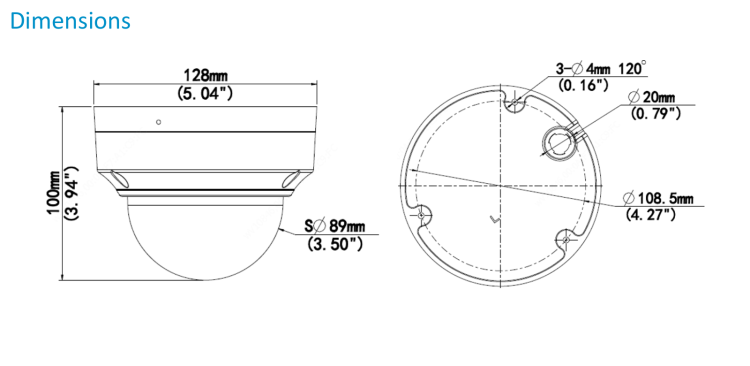

Dimensions	Ø5.0 inches (128 mm) × 3.9 inches (100 mm)
Weight	1.46 lb (0.66 kg)
Material	Metal

IPC3535SR4-ADZK-H Datasheet

Download

Download the official Uniview IPC3535SR4-ADZK-H 5MP motorized varifocal dome network camera datasheet for complete features, technical specifications, dimensions, operating requirements, and compatible accessories.
