N9L-4RAL
Original price was: $1,555.99.$993.60Current price is: $993.60.

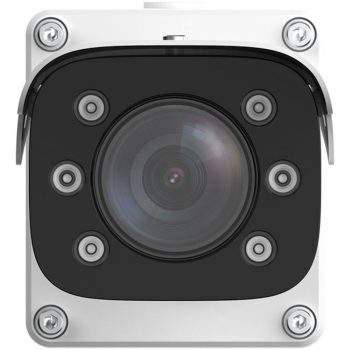

Luminys N9L-4RAL 4MP IP License Plate Recognition Camera with 10–50 mm Motorized VariFocal Lens
- LPR for US and Canadian plates
- Luminys LPR Gate System automatically manages vehicle access at both entry and exit points
- 99% ANPR (automatic number plate recognition) accuracy
- 95% vehicle recognition rate
- 37.3’/hour maximum detection speed
- 19.7 to 23′ detection width
- 26.3 to 98.4′ capture distance
- LumiTrajectory technology captures and displays the vehicle’s license plate number and path via the monitored area
- Vehicle categories include large bus, large truck, medium truck, sedan, van, small truck, medium bus, SUV, MPV, and pickup truck
- Recognizable vehicle colors include gray, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow
- LPR feature enables gate access control
- IP67
- NDAA Compliant
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Luminys N9L-4RAL is a powerful 4MP outdoor network license plate recognition camera built for dependable automated vehicle access control. It also supports gate management and high-accuracy plate capture. Purpose-designed for demanding perimeter and entry-point applications, it delivers sharp 2688 × 1520 resolution at 30 frames per second. As a result, security teams identify vehicles with exceptional clarity and consistency.
Equipped with a motorized varifocal lens, the N9L-4RAL provides a narrow, adjustable field of view. Moreover, it is optimized for long-range targeting and precise plate framing. It effectively isolates and reads license plates from 26.3 ft (8.02 m) to 98.4 ft (29.99 m) away. Therefore, it is ideal for driveways, parking entrances, restricted-access lanes, and other locations where accurate capture at a distance is essential.
For nighttime and low-light operation, the N9L-4RAL uses six infrared LEDs. These deliver up to 98 feet (29.87 m) of illumination in total darkness. That means consistent plate capture around the clock, even in pitch-black environments. In those cases, standard cameras struggle to deliver usable detail.
Beyond license plate recognition, the camera adds valuable vehicle intelligence by classifying vehicle types such as sedans, SUVs, pickups, vans, and large trucks. Additionally, it detects 12 distinct vehicle colors. This extra data enhances searchability, incident review, and access management workflows for businesses, campuses, and secure facilities.
The N9L-4RAL also includes onboard alarm I/O relays for direct automation. This allows gates or barriers to open when an authorized vehicle is recognized.
With Power over Ethernet for simple single-cable installation, it offers an IP67 weatherproof housing for reliable outdoor performance. The unit includes a microSD card slot supporting up to 128 GB of local storage. It also has NDAA compliance for government and enterprise deployments.
As a result, it is a robust and versatile LPR solution built for modern security needs.
| Camera | |
|---|---|
| Luminys Series | N9 Series (Specialty) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 (OSD Black Strip Excluded) |
| Minimum Illumination | 0.002 Lux (Built-In Illuminator On) |
| Number of Illuminators | Six (6) IR Illuminators With Adjustable Brightness |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 98.4 ft (29.99 m) |
| Maximum Detection Speed | 32 (60 km) |
| Detection Width | 19.7 ft (6 m) to 23.0 ft (7.01 m) |
| Capture Distance | 26.3 ft (8.02 m) to 98.4 ft (29.99 m) |
| Trigger Mode | Video Detection, I/O Coil |
| Shutter Mode | Single Shutter |
| Electronic Shutter Speed | Automatic, Manual 1/25 s–1/10,000 s |
| Lens | |
| Lens Mount | Module |
| Iris Type | Automatic (W:1.33—T:1.34) |
| Lens Type | Motorized VariFocal |
| Focal Length | 10 to 50 mm (0.4 to 2.0 in.) |
| Field of View | Horizontal: 40.55° (W) – 9.33° (T) Vertical: 22.7° (W) – 5.3° (T) Diagonal: 46.6° (W) – 10.63° (T) |
| Video | |
| Compression | H.265, H.264M, H.264H, MJPEG |
| Image Encoding Format | JPEG |
| Stream Capability | Two (2) Streams |
| Resolution | Main Stream: 4MP (2688×1520), UXGA (1600×1200), 1080p (1920×1080), 720p (1280 × 720) Sub Stream: 720p (1280 × 720), 960H (960 × 480), D1 (704 × 480), CIF (352 × 240) |
| Maximum Frame Rate | Main Stream: 2688 × 1520/1600 × 1200/1920 × 1080/1280 × 720 at 1–30 fps Sub Stream: 1280 × 720/960 × 480/704 × 408/352 × 240 at 1–30 fps |
| Video Bit Rate | H.264/H.265: 2615 to 15689 kbps MJPEG: 7845 to 47068 kbps |
| Light Balancing | Wide Dynamic Range (96 dB) |
| White Balancing | Automatic, Regional Custom, Manual, Outdoor, Natural Lighting, Streetlamp |
| Exposure Mode | Fully Automatic, Customized Automatic, Manual |
| Noise Reduction | 3D NR |
| Edge Enhancement | Supported |
| OSD Overlay | Time, Address, Plate, Vehicle (Color, Type), Vehicle Position, Counterfeit, Checkpoint Direction, Trigger Source, Custom |
| Image Tampering Prevention | Watermark, Verification Function |
| Analytics | |
| Vehicle Recognition Attributes | Vehicle Type/Color, Front-Seat Passenger, Licensed/Unlicensed |
| LumiAnalytics | Supported |
| Smart Track Frame | Displays Plate and Vehicle Path |
| Audio | |
| Interface | Output: One (1) Channel (RCA port) |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access |
| Interface Input | 2-Channel Optocoupler (On/Off) |
| Interface Output | 2-Channel Relay (Can Be Used to Connect Other Devices) |
| Network | |
| Interface | One (1) RJ-45 (100/1000 Mbps Ethernet) Port, Two (2) RS-485 Ports, One (1) Wiegand Channel |
| Auto Registration | Supported |
| Security | Username/Password, MAC Address Binding, HTTPS Encryption, IEEE 802.1×, Network Access Control |
| Automatic Network Replenishment (ANR) | Supported via Platform/FTP |
| Storage | Built-In 1 TF Card Port (Max. 128 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE+ |
| Power Consumption | < 20 W |
| Construction | |
| Net Weight | 3.2 kg (7.05 lb) |
| Gross Weight | 5.2 kg (11.46 lb) |
| Operating Temperature | -22 °F (-30 °C) to 149 °F (65 °C) · 10 to 90% RH (Non-Condensing) |
| Protection Ratings | IP67 |

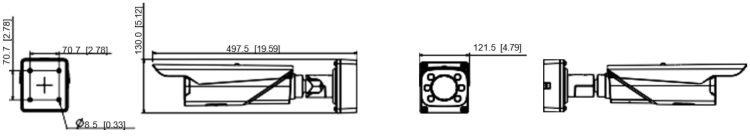

| Product Dimensions (L × W × H) | 19.6 inches (49.78 cm) × 4.8 × 5.1 inches (12.95 cm) |
| Packaging Dimensions (L × W × H) | 24.6 inches (62.48 cm) × 12.0 × 10.6 inches (ca. 27 cm) |
| Installation | Wall, Pole, or Ceiling Mount |
| Material | Metal and Plastic |
