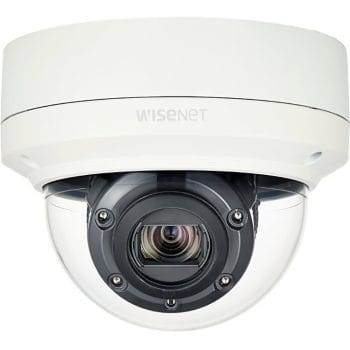

XNV-6120R-LPR
Original price was: $2,000.00.$1,291.95Current price is: $1,291.95.
- 2 megapixel (1920 × 1080) resolution
- Designed for low speed and stop and go applications up to 35 MPG
- No server needed. The application runs directly on the camera and is licensed and ready-to-go.
- 12X optical zoom (5.2 ~ 62.4mm) (54.58º ~ 5.30º)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto-tracking, sound classification, tampering
- Motion detection, handover
- SD/SDHC/SDXC memory slot (Maximum 512GB)
- Hallway view, WiseStream II support
- High-powered IR LEDs with readable length for LPR 65 ft (19.81 m), IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
- Specifications
Description
The Hanwha XNV-6120R-LPR is a powerful and innovative solution for all your license plate recognition needs. This camera comes equipped with Wisenet X, powered by Wisenet 5, for ultra-clear and detailed footage. It has a 2MP resolution and Full HD (1080p) capabilities, so every little thing will pop out with crystal-clear clarity.
This camera provides a wide range of coverage, allowing you to capture license plates from various distances. A horizontal viewing angle of 54.580-5.30o guarantees that no area will go unnoticed.
The XNV-6120R-LPR offers H.265, H.264, MJPEG, or WiseStream II for efficient and optimized bandwidth and storage use. This feature is crucial for high-resolution footage, as it prevents large file sizes from slowing down your network. With a wide dynamic range of 150dB, this camera can take clear images in both bright and dark environments.
The XNV-6120R-LPR has a USB port that makes it easy to set up. This camera also boasts advanced video analytics, such as sound classification, to identify and alert you of specific sound patterns. It also has high-powered infrared LEDs that can illuminate license plates up to 65 feet (19.81 meters) away.
The XNV-6120R-LPR can keep an eye on things all day and night. It can store two SD cards, see the hallway, use HLC, detect fog, and use DIS. A 12VDC or 24A power supply is available for the device. You can trust the quality and reliability of the XNV-6120R-LPR for all your license plate recognition needs with Collsam Distribution.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
Brand
Hanwha Vision
Professional Video Surveillance Solutions
Hanwha Vision develops professional surveillance technology for security systems ranging from individual sites to large multi-location environments. Its portfolio covers network cameras, recording equipment, video management, analytics, storage, and supporting technologies.Network and AI Cameras
The camera portfolio includes dome, bullet, turret, PTZ, panoramic, multi-sensor, fisheye, thermal, and other specialized designs. Available technologies support high-resolution imaging, low-light monitoring, intelligent analytics, and flexible deployment for a wide range of applications.Artificial Intelligence and Video Analytics
AI-based surveillance technology can help security teams identify important activity more efficiently. Depending on the selected equipment, intelligent functions can assist with object classification, event detection, search, and other analytical tasks.These capabilities can reduce the amount of video that operators need to review manually while improving awareness of essential security events.Network Video Recording
Hanwha Vision provides network recording solutions for surveillance systems of different sizes. Recorder selection can be based on channel count, storage capacity, camera resolution, recording bandwidth, redundancy, and system-management requirements.Professional NVR solutions provide centralized storage and playback while supporting compatible network cameras and surveillance technologies.Video Management and Monitoring
Video management technology gives operators a centralized environment for viewing cameras, reviewing recorded footage, managing events, and supervising larger surveillance systems.Flexible monitoring options can support individual workstations, security operations centers, and distributed environments with multiple locations.Specialized Surveillance Applications
Advanced surveillance systems may require technologies such as panoramic imaging, thermal cameras, license plate recognition, multi-sensor cameras, or intelligent search capabilities.These specialized options allow integrators to design systems for applications where standard surveillance equipment may not provide sufficient coverage or analytical capability.Hanwha Vision Solutions at Collsam Security
Collsam Security offers Hanwha Vision surveillance equipment for professional security applications. Customers can select cameras, recording systems, video management technologies, and related equipment according to the requirements of their security project.NDAA
Only logged in customers who have purchased this product may leave a review.
| VIDEO | |
| Imaging Device | 1/2.8” 2MP CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16MP |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13MP |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.03Lux (F1.6), B/W : 0Lux (IR LED on) |
| S / N Ratio | 50dB |
| Video Out | CVBS : 1.0 Vp-p / 75˛ Composite, 720 × 480 for Installation USB : Micro USB Type B, 1280 × 720, for Installation |
| LENS | |
| Focal Length (Zoom Ratio) | 5.2 ~ 62.4mm (Optical 12X) |
| Maximum Aperture Ratio | F1.6(Wide) ~ F3.0(Tele) |
| Angular Field of View | H : 54.58°(Wide) ~ 5.30°(Tele) / V : 32.19°(Wide) ~ 3.00°(Tele) / D : 61.40°(Wide) ~ 6.06°(Tele) |
| Minimum Object Distance | 2.1m (6.89ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 75° / 0° ~ 355° *Refer to Quick Start Guide for allowable limits |
| OPERATIONAL | |
| IR Viewable Length | 70m (229.66ft), maximum plate distance for IR 40ft (12.19 m) |
| Camera Title | Off / On (Displayed up to 85 Characters)
|
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Rectangular zones) – Color : Gray / Green / Red / Blue / Black / White – Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjustment |
| LDC (Lens Distortion Correction) O | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 24x |
| Preset | 300ea |
| Flip / Mirror | Off / On, Hallway : 90° /270° |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, Preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Maximum Frame rate | H.265 / H.264 : 60fps at all resolutions, MJPEG : 30fps |
| WiseStream II | Support |
| Video Quality Adjustment | H.265 / H.264 : MJPEG : Target bitrate level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line Out (3.5mm Mono Jack), Max Output Level : 1 Vrms |
| Audio Compression Format | G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz |
| Audio Communication | Bidirectional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast) |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP address filtering, User access log, 802.1X Authentication (EAP TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users at Unicast Mode |
| Application Programming Interface | e ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C (-31°F) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance | IP67, IP66, NEMA4X / IK10 |
| ELECTRICAL | |
| Input Voltage / Current | 24V AC, 12V DC, PoE (IEEE802.3af Class3) |
| Power Consumption | 24V AC : Max 14W, 12V DC : Max 11.5W, PoE : Max 12.95W |
| MECHANICAL | |
| Color / Material | Ivory / Aluminum |
| Dimensions (W × H) | Ø6.30 inch (76.2 cm) x 5.06 inch (12.85 cm) |
| Weight | 2.19 lb (0.99 kg) |
| Gangbox | Single, Double, 4 inch (10.16 cm) Octagon |
