CC9160-H
Original price was: $369.00.$258.30Current price is: $258.30.
-

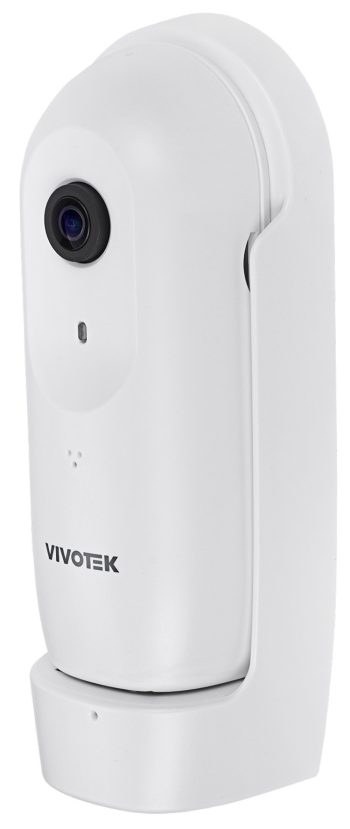

Vivotek C Series CC9160-H 2MP 180° Panoramic Indoor Network Camera
- 2Megapixel CMOS Sensor
- 180° Horizontal Panoramic View
- Compact, Low-Profile Design
- 30 fps @ 1920×1080
- Smart Stream III to Optimize Bandwidth Efficiency
- WDR Pro 120 dB
- Digital Input, Digital Output, Built-in Microphone
- Trend Micro IoT Security
SKU: CC9160-H
Categories: Network IP Cameras, Panoramic Network IP Cameras
Tags: 1/2.8" 2 Mega Pixel Panasonic Sensor, H.265 H.264 and M-JPEG, ONVIF S/T/G, PoE (IEEE 802.3af), WDR (Wide Dynamic Range)- Description
- Attachment
- Key Specification
- Additional information
- Specifications
- Reviews (0)
Description
The VIVOTEK CC9160-H is a top-of-the-line network camera, designed specifically for 180° panoramic indoor surveillance. Whether you’re looking to monitor a retail store, convenience store, hotel, classroom, or café, this camera is the perfect choice for all your security needs. With its low-profile and inconspicuous design, the CC9160-H can easily blend into any environment without drawing unwanted attention.
One of the standout features of this camera is its 120 dB WDR Pro technology, which allows for high contrast lighting environments. This means that even in challenging lighting conditions, the CC9160-H can provide clear and detailed images. The camera can take pictures from every angle in the room. This makes it an ideal option for situational surveillance, giving you a complete and comprehensive view of your space.
The CC9160-H’s unique mounting design makes installation a breeze. The camera can be easily mounted on any wall, so you can position it anywhere and get maximum coverage. This feature, along with its compact size, makes the CC9160-H a versatile choice for various indoor spaces. Whether you need to monitor a large retail store or a small café, this camera can adapt to any setting.
In addition to its impressive surveillance capabilities, the CC9160-H also comes equipped with a built-in microphone. This feature allows for audio recording within a 16.4 FT radius, further enhancing the level of surveillance. Furthermore, the camera also has digital input and output connections, providing advanced security options for your space. With these features, you can customize the camera’s settings to meet your specific security needs.
Collsam Distribution is proud to be your go-to source for all Vivotek products, including the CC9160-H. Our commitment to providing top-quality products and exceptional customer service makes us the trusted choice for security solutions. With the VIVOTEK CC9160-H, you can have peace of mind knowing that your indoor space is under constant surveillance and protection.
| Image Sensor | |
| Focal Length | |
| Field of View | |
| Pan/Tilt | |
| Built-In Microphone |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 4 × 2 in |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.8” Progressive CMOS |
| Max. Resolution | 1920×1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.66 mm |
| Aperture | F1.95 |
| Iris Type | Fixed Iris |
| Field of View | 180° (Horizontal) 100° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.03 lux @ F1.95 (Color) |
| Tilt Range | 15° with tilt bracket |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265: 30 fps @ 1920×1080 (WDR Pro on/off) H.264: 30 fps @ 1920×1080 (WDR Pro on/off) MJPEG: 30 fps @ 1920×1080 (WDR Pro on/off) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 66.2 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Trend Micro IoT Security (1-year free trial), VIVOCloud, Stratocast |
| Alarm and Event | |
| Event Trigger | Audio Detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection Digital input Digital output |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5 W |

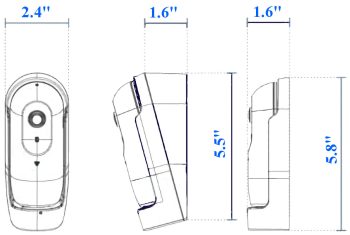

| Dimensions | 4.72 inch (11.99 cm) (H) x 2.04 inch (5.18 cm) (W) x 1.55 inch (3.94 cm) (D) mm (Body only) 5.79 inch (14.71 cm) (H) x 2.04 inch (5.18 cm) (W) x 1.61 inch (4.09 cm) (D) mm (w/ Bracket) |
| Weight | 0.18 lb (81.65 g) (camera body) 0.279 lb (126.55 g) (with bracket) |
| Certifications | EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), UKCA (BS EN IEC 62368-1: 2020 +A11: 2020); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: 32°F(0°C)~ 113 °F (45 °C) Working Temperature: 14 °F (-10 °C)~ 113 °F (45 °C) |
| Humidity | 90% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, mounting bracket, tilt bracket, screw pack |
