NPT-A8200SL

Upgrade your security with Eyemax NPT-A8200SL, a powerful 2MP PTZ camera with Starlight technology for exceptional low-light performance. With 25x optical zoom and advanced features, it's perfect for medium-to-large-scale applications like warehouses and campuses. Order now for efficient surveillance and peace of mind. #Eyemax #PTZ #SecurityCamera

NPT-A8200SL

Original price was: $859.99.Current price is: $479.95.

In stock

Original price was: $859.99.Current price is: $479.95.

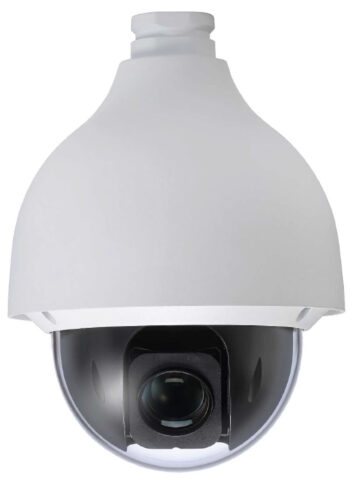

Eyemax NPT-A8200SL 1080P H.265+ PTZ Network Camera with Starlight 25x Optical Zoom, Auto-tracking IVS PoE+

  • 1/2.8″ 2-Megapixel STARVIS CMOS
  • Powerful 25x optical zoom
  • 265 Encoding • Starlight technology
  • 50/60fps@1080P
  • 25/30/50/60fps@720P
  • Auto-tracking and IVS
  • Support PoE+
  • IP67 ingress protection
  • True WDR
  • IK10 Vandal Resistance

Description

Introducing the ultimate surveillance solution for your professional security needs, the Eyemax NPT-A8200SL. This high-performance 2MP (1080P) PTZ network camera offers top-of-the-line features. It also brings advanced technology to provide you with the best possible surveillance experience. With its exceptional image quality, low-light performance, and powerful zoom capabilities, the NPT-A8200SL is the go-to camera for medium-to-large-scale security applications.

The NPT-A8200SL boasts a 2-megapixel resolution of 1920 × 1080 at 25/30 fps. This ensures that every detail is captured with clarity and precision. Its 25x optical zoom allows for close monitoring over large distances. Therefore, it is ideal for areas such as warehouses, transit stations, and campuses. No matter the size of your space, the NPT-A8200SL has you covered.

Equipped with a 1/2.8” STARVIS™ CMOS sensor, this camera ensures that even in low-light situations, you will still get high-quality images. Thanks to its innovative Starlight technology, the NPT-A8200SL can capture color details in environments with light as low as 0.002 lux. This means you can trust this camera to deliver exceptional results, even in the darkest of environments.

In addition to its impressive image and zoom capabilities, the NPT-A8200SL also features H.265+ and H.265 dual-stream encoding. This allows for efficient bandwidth and storage usage, which is essential for any surveillance system. With the camera, you can rest assured that your footage will be captured and stored effectively, without compromising on quality.

The NPT-A8200SL goes beyond just capturing footage, as it also includes advanced features such as auto-tracking and Intelligent Video System (IVS) analytics. These features allow for the camera to track moving objects. This makes it easier to keep an eye on any suspicious activity. It also can detect and alert you of any potential security breaches. As a result, you get an extra layer of protection.

Datasheet

Download

Upgrade your security with Eyemax NPT-A8200SL, a powerful 2MP PTZ camera with Starlight technology for exceptional low-light performance. With 25x optical zoom and advanced features, it's perfect for medium-to-large-scale applications like warehouses and campuses. Order now for efficient surveillance and peace of mind. Datasheet.

Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.005 Lux @ F1.6; B/W: 0.0005 Lux @ F1.6
S/N RatioMore than 55dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length4.8mm~120mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 59.2° ~ 2.4°
Optical Zoom25x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance, which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test results according to EN 62676-4, which defines the criteria for Detect, Observe, Recognize, and Identify, respectively.
Detect5292 ft (1,613 m)
Observe2119 ft (645.87 m)
Recognize1060 ft (323.09 m)
Identify528 ft (160.93 m)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control SpeedPan: 0.1° ~350°/s; Tilt: 0.1° ~250°/s
Preset SpeedPan: 500°/s; Tilt: 500°/s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed SetupHuman-oriented focal length speed adaptation
Power-Up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/Scan/Tour/Pattern if there is no command in the specified period
ProtocolDH-SD
Intelligence
Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing, Face Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution1080P (1920×1080)/1.3M (1280×960)/720P (1280×720)/D1 (704×576/704×480)/CIF (352×288/352×240)
Frame RateMainstream: 1080P/1.3M/720P (1~50/60 fps)
Substream 1: D1/CIF (1 ~ 25/30 fps)
Substream 2: 1080P/1.3M/720P/D1/CIF (1~25/30 fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto (ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetetionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711Mu/AAC/G.722, G.726/G.729/MPEG2-L2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast Multicast
Max. User Access.20 users
Edge StorageNAS (Network Attached Storage), PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart PhoneIOS, Android
Certifications
CertificationsCE: EN55032/EN55024/EN50130-4 FCC: Part 15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Interface
Video InterfaceN/A
Audio Interface1/1
RS485N/A
Alarm I/O2/1
Electrical
Power SupplyAC24V/1.5A (±10%), PoE+ (802.3at)
Power Consumption13W, 23W (heater on)
Environmental
Operating Conditions-40°F (-40°C) ~ 140°F (60°C) / Less than 90% RH
Ingress ProtectionIP67 ingress protection
Vandal ResistanceIK10 Vandal Resistance
Construction
CasingMetal

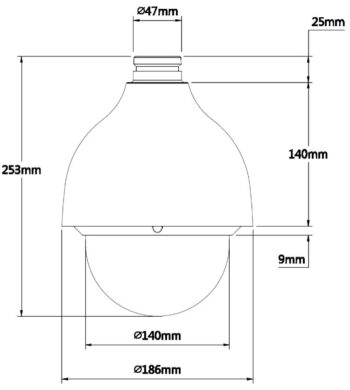

DimensionsΦ186(mm) x 253(mm)
Net Weight5.51 lb (2.5 kg)
Gross Weight9.92 lb (4.5 kg)
