NPT-IR-E8225-S1S

Upgrade your security with Eyemax NPT-IR-E8225-S1S 8MP PTZ Network Camera. AI-powered monitoring, 25x zoom, and weather protection for professional use. Shop now!

NPT-IR-E8225-S1S

Original price was: $1,183.99.Current price is: $791.95.

Out of stock

Original price was: $1,183.99.Current price is: $791.95.

Eyemax 8MP 4K H.265+ IR PTZ Network Camera with 25x Optical Zoom, Starlight Technology, Alarm Light, Siren, PoE+, Speaker

  • 1/2.8” 8 Megapixel STARVIS™ CMOS.
  • 25x optical zoom.
  • Starlight technology.
  • Max. 25/30fps@8M.
  • IR distance up to 100 m.
  • Auto tracking 3.0.
  • Perimeter protection.
  • Face detection.
  • SMD 4.0.
  • IP66.
  • Full-color illuminator; red and blue warning light.
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Eyemax NPT-IR-E8225-S1S is a high-quality 8MP PTZ network camera that is perfect for professional security applications. With its advanced features and robust design, this camera is designed to provide top-notch surveillance and monitoring capabilities. Featuring AI-powered monitoring and powerful 25x optical zoom, this camera is truly a game-changer in the world of security cameras.

One of the standout features of the Eyemax NPT-IR-E8225-S1S is its 1/2.8” 8-megapixel STARVIS™ CMOS sensor. This sensor allows for a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps. As a result, you get crystal-clear and detailed footage every time. This level of resolution is perfect for monitoring large areas. Moreover, it helps in identifying individuals and objects with ease.

The camera also boasts a powerful 25x optical zoom with a focal length of 5 mm–125 mm. This allows you to zoom in and out with precision. Thus, you get a closer look at any activity or event that may be taking place.

With a range of up to 100 m (328.08 ft), the IR distance of this camera is also impressive. Therefore, even in low-light conditions, you can still capture clear footage.

But that’s not all, as the Eyemax NPT-IR-E8225-S1S also includes both IR and white light illuminators with a white light distance of up to 50 m. This enables you to have a clear view of your surroundings, even in complete darkness. Additionally, the camera also has a red and blue warning light for active deterrence. As a result, it is an excellent deterrent for potential intruders or criminals.

The camera is also equipped with advanced features such as Perimeter Protection (tripwire, intrusion with human/vehicle classification), Face Detection, Auto Tracking 3.0, and SMD 4.0 (Smart Motion Detection). These features help filter out false alarms caused by animals or rustling leaves. Consequently, you only receive alerts for relevant events.

Moreover, the Eyemax NPT-IR-E8225-S1S comes equipped with a built-in dual microphone and speaker, allowing for two-way talk capabilities. This feature is incredibly useful for situations where verbal communication is necessary. For example, in a retail store or office setting, it is valuable.

Designed for outdoor use, this camera has an IP66 ingress protection rating, making it resistant to harsh weather conditions. It also has TVS 6000 V lightning protection. As a result, the camera is protected from lightning strikes and power surges. The camera supports both 12 VDC and PoE+ (Power over Ethernet) power supplies. This gives you flexibility in how you power the camera.

Finally, the Eyemax NPT-IR-E8225-S1S has the option to support a maximum 512 GB Micro SD card, allowing you to store and access footage locally. This feature is especially useful for situations where internet connectivity may be an issue.

For use in professional security settings, the Eyemax NPT-IR-E8225-S1S is a high-end PTZ network camera. With its AI-powered monitoring, powerful optical zoom, advanced features, and robust design, this camera is an excellent investment. It is ideal for those looking for reliable and high-quality surveillance.

Additional information

Weight9 lbs
Dimensions10 × 10 × 13 in

Brand

Eyemax

Eyemax provides professional video surveillance solutions for commercial, residential, retail, educational, and other security applications. Its product range includes HD analog cameras, IP cameras, network video recorders, and digital video recorders for new installations and system upgrades.HD analog cameras provide high-definition video while supporting compatible coaxial surveillance infrastructure. IP cameras offer network-based monitoring with flexible installation options for modern security systems.Network video recorders provide centralized recording, storage, and management for compatible network cameras. Digital video recorders support compatible coaxial camera installations and hybrid surveillance environments. Eyemax solutions are available from Collsam Security for professional security applications.
Eyemax security cameras and video surveillance products at Collsam Security

Professional Video Surveillance Solutions

Eyemax offers surveillance technology designed for homes, businesses, offices, retail locations, schools, warehouses, and other properties. Available equipment supports both network-based and coaxial security installations.

HD Coaxial Camera Solutions

HD-over-coax technology provides high-resolution surveillance while allowing compatible existing coaxial cabling to remain in service. This can provide a practical upgrade path for installations that already use traditional CCTV infrastructure.Available camera styles can support indoor and outdoor monitoring requirements, including dome, bullet, turret, and other common surveillance configurations.

Network Camera Solutions

Network-based cameras provide flexible deployment options for modern surveillance environments. Depending on the equipment selected, network technology can support high-resolution imaging, remote monitoring, and integration with compatible recording systems.This approach is suitable for new installations as well as projects requiring system expansion and centralized management.

NVR Recording Solutions

Network recording equipment provides centralized storage and management for compatible IP surveillance systems. Recorder selection should consider camera count, resolution, storage capacity, network requirements, and desired recording retention.Remote viewing capabilities can also provide authorized users with access to compatible surveillance systems from supported devices.

DVR Recording Solutions

Coaxial recording equipment provides reliable video recording for compatible HD analog camera systems. These recorders can support upgrades to existing surveillance installations while preserving compatible cabling and infrastructure.Hybrid configurations may also provide additional flexibility when combining different surveillance technologies.

Complete Security System Solutions

A complete surveillance installation can include cameras, recorders, storage, power equipment, cables, mounts, connectors, monitors, and other accessories.Collsam Security offers Eyemax products and supporting security equipment for new surveillance installations, upgrades, expansions, and replacement projects.

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.
NDAA-compliant security products at Collsam Security
NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

Camera
Image Sensor1/2.8” CMOS
Pixel8 Megapixel
Max. Resolution3840 (H) × 2160 (V)
ROM4 GB
RAM1 GB
Electronic Shutter Speed1 s–1/30,000 s
Scanning SystemProgressive
Min. Illumination0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Illumination Distance100 m (328.08 ft) (IR);
50 m (164.04 ft) (Dual Light Fusion—white light only); 50 m (164.04 ft) (Dual Light Fusion—IR light only)
Illuminator On/Off ControlZoom Prio; Manual; Auto; Off
Illuminator Number2 (IR); 2 (Dual light fusion)
Lens
Focal Length5 mm–125 mm
Max. ApertureF1.6-F3.6
Field of ViewH: 53.1° ~ 3.4°; V: 30.4° ~ 1.9°; D: 59.3° ~ 3.9°
Optical Zoom25 ×
Focus ControlAuto, semi-auto, manual
Close Focus Distance0.33 ft (10.06 cm)–4.92 ft (149.96 cm)
Iris ControlAuto; manual
DORI Distance
Detect10859.58 ft (3,310 m)
Observe4291.34 ft (1,308 m)
Recognize2171.92 ft (662 m)
Identify1085.96 ft (331 m)
PTZ
Pan/Tilt RangePan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180°
Manual Control SpeedPan: 0.1°/s–200°/s; Tilt: 0.1°/s–120°/s
Preset SpeedPan: 0.1°/s–240°/s; Tilt: 0.1°/s–200°/s
Preset300
Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Power-off MemoryYes
Idle MotionPattern; Preset; Scan; Tour
Intelligence
IVS (Perimeter Protection)Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking
Face DetectionSupports face detection, optimization, capturing pictures, uploading high-quality face snapshots, and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cut out one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto TrackingYes
SMDSMD4.0
Quick PickYes
Active Deterrence
Light WarningRed-blue light warning flash duration: 5 s–30 s
Flash frequency: high, medium, low
Sound WarningOffers 11 types of sound alarms and supports importing custom sound alarms.
Video
Video CompressionH.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub
Stream); Smart H.264+; H.264M
Streaming Capability3 streams
Resolution4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 ×
1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame RateMainstream: 4K/4M/3M/1080p/1.3M /720p @ (1–25/30 fps)
Substream 1: D1/CIF/VGA@(1–25/30 fps)
Substream 2: 1080p/1.3 MP/720p@(1–25/30 fps)
Bit Rate ControlCBR/VBR
Video Bit RateH264: 128 Kbps–16,384 Kbps H265: 128 Kbps–11,776 Kbps
Day/NightAuto (ICR); Color/B/W
BLCYes
WDRDWDR
HLCYes
White BalanceAuto; indoor; outdoor; tracking; manual; sodium lamp; natural light; streetlamp
Gain ControlAuto; manual
Noise Reduction2D NR; 3D NR
Motion DetectionYes
Region of Interest (RoI)Yes
Image StabilizationElectronic (EIS)
DefogElectronic
Digital Zoom16×
Image Rotation180°
Privacy MaskingUp to 24 areas can be set, with up to 8 areas in the same view;
Multiple colors available
S/N Ratio≥ 55 dB
Audio
Audio CompressionPCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network PortRJ-45 (10/100 Base-T)
Network ProtocolFTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP
InteroperabilityONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P
Streaming MethodUnicast/Multicast
User/Host20 (total bandwidth: 64 M)
StorageMicro SD card (512 GB); FTP/SFTP; NAS
BrowserIE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions
Management SoftwareDMSS; DSS Pro
Mobile ClientiOS; Android
Certification
CertificationsCE: EN55032/EN55024/EN50130 ~ 4
FCC: Part 15, subpart B, ANSI C63.4 ~ 2014
Port
Audio Input1 channel (LINE IN, bare wire)
Audio Output1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
Alarm Input2 (on-off value input: 0–5 VDC)
Alarm Output1 channel
Alarm LinkageCapture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light
Alarm EventMotion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply12 VDC, 3 A ± 10%; PoE+ (802.3at)
Power Consumption12 VDC:
Basic: 8 W;
Max: 16 W (white light + heated glass + PTZ on + alarm
+ red and blue light flashing) POE:
Basic: 9 W;
Max: 17 W (white light + heated glass + PTZ on + alarm
+ red and blue light flashing)
Environment
Operating Temperature-40 °F(-40 °C) to 149°F (65°C)
Operating Humidity≤ 95%
ProtectionTVS 6000 V lightning proof; IP66; surge protection; voltage transient protection
Structure

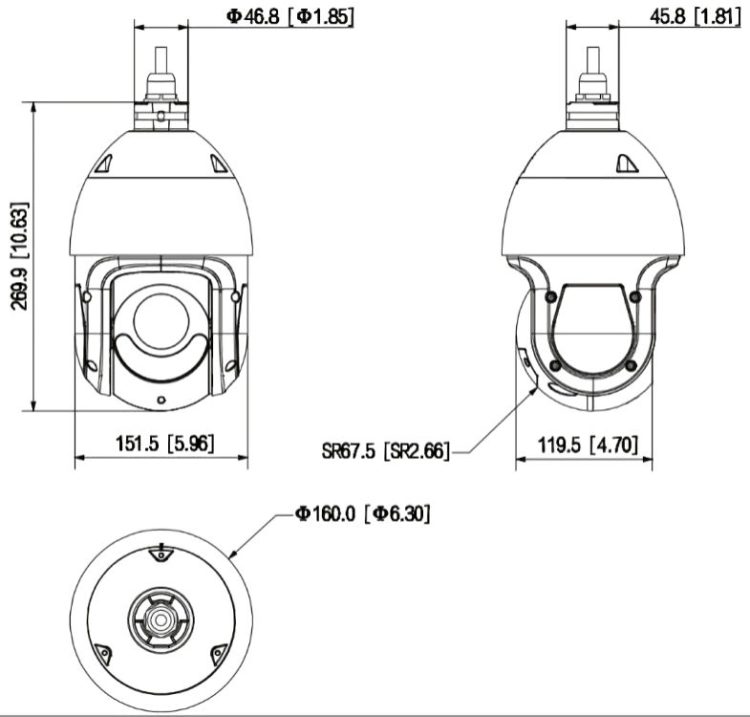

Product Dimensions10.63 inches (27 cm) × Φ 6.30 inches (16 cm)
Net Weight5.73 lb (2.6 kg)
Gross Weight8.82 lb (4 kg)
