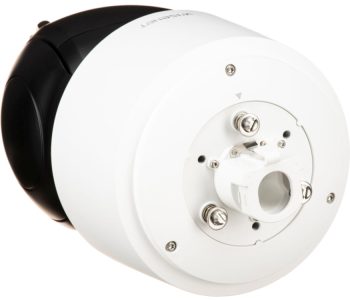

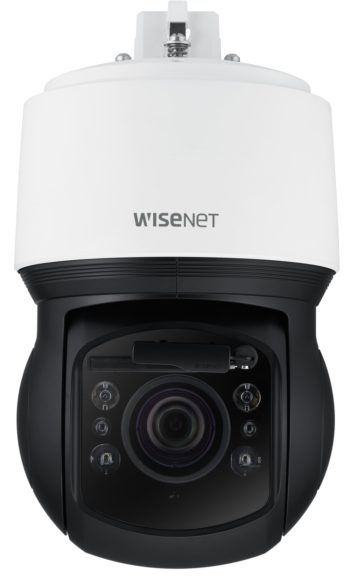

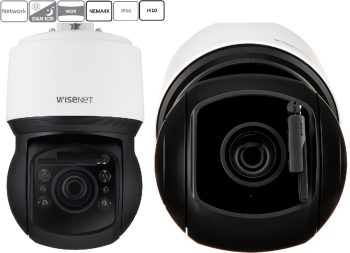

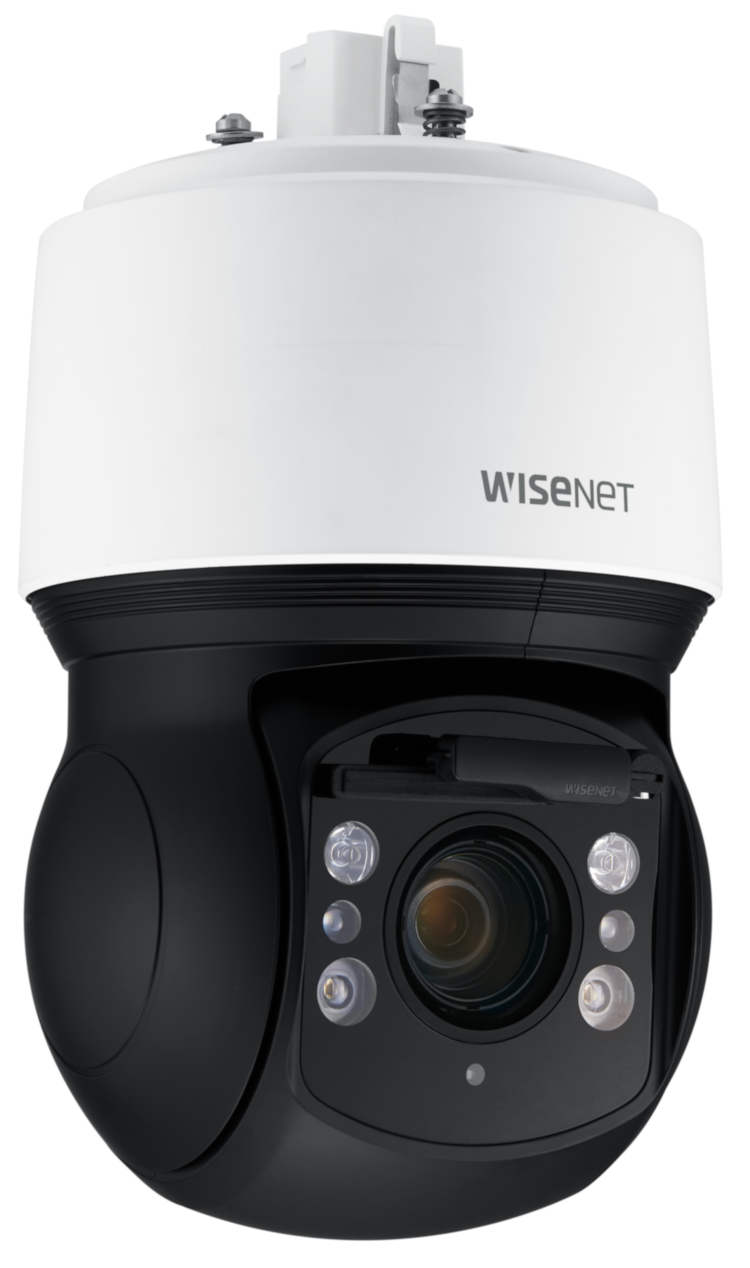

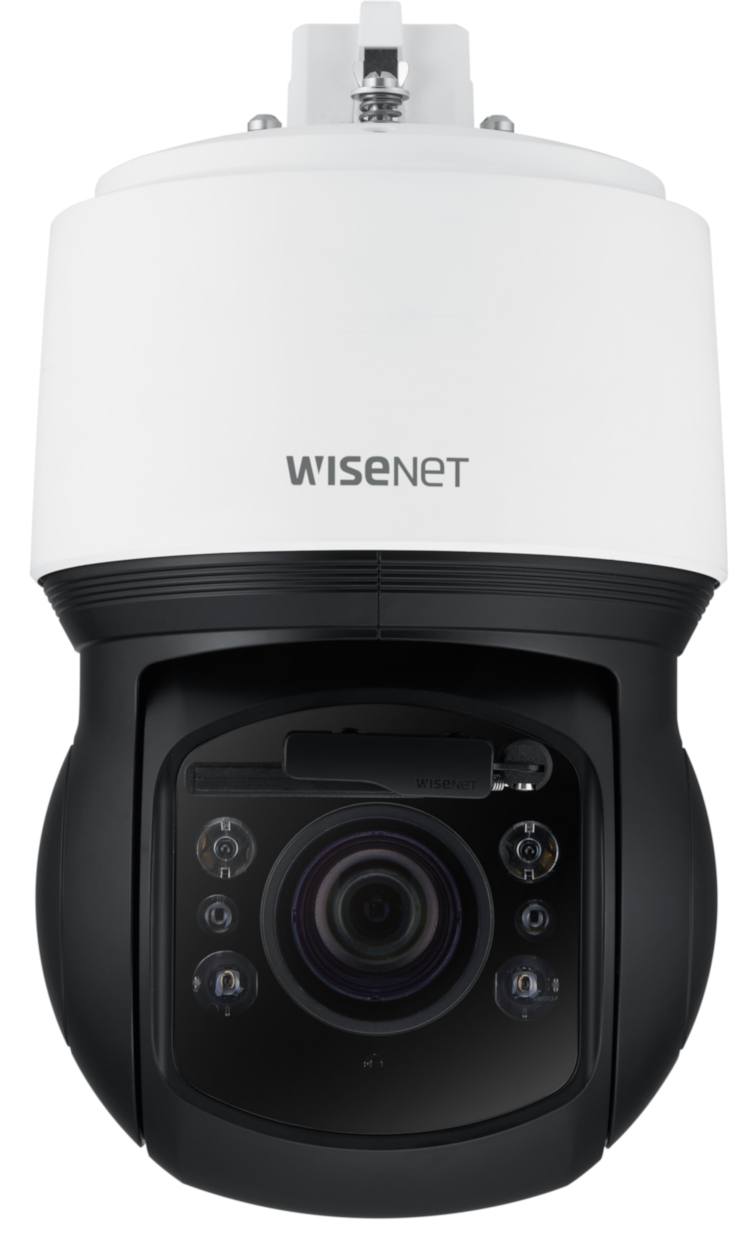

XNP-9300RW

Hanwha XNP-9300RW PTZ network surveillance camera. Designed for tough environments offers advanced features for precise monitoring.

XNP-9300RW

Original price was: $4,900.00.Current price is: $3,185.00.

In stock

Original price was: $4,900.00.Current price is: $3,185.00.

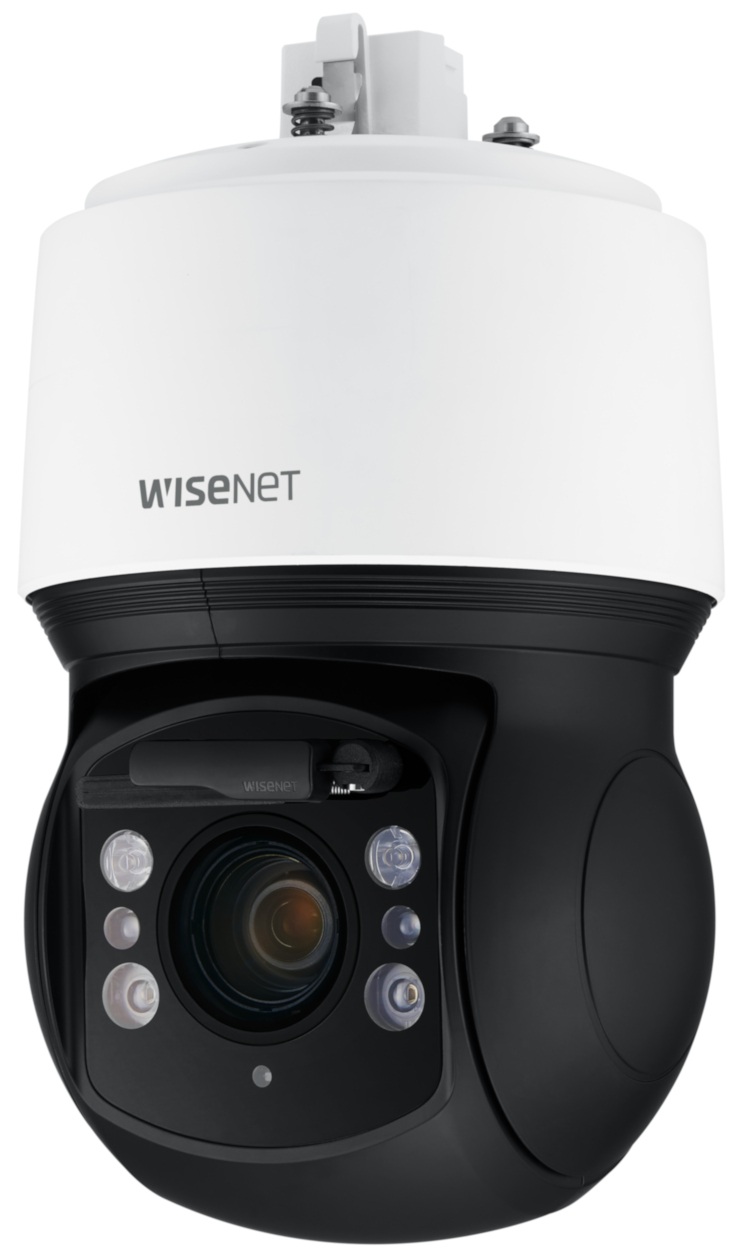

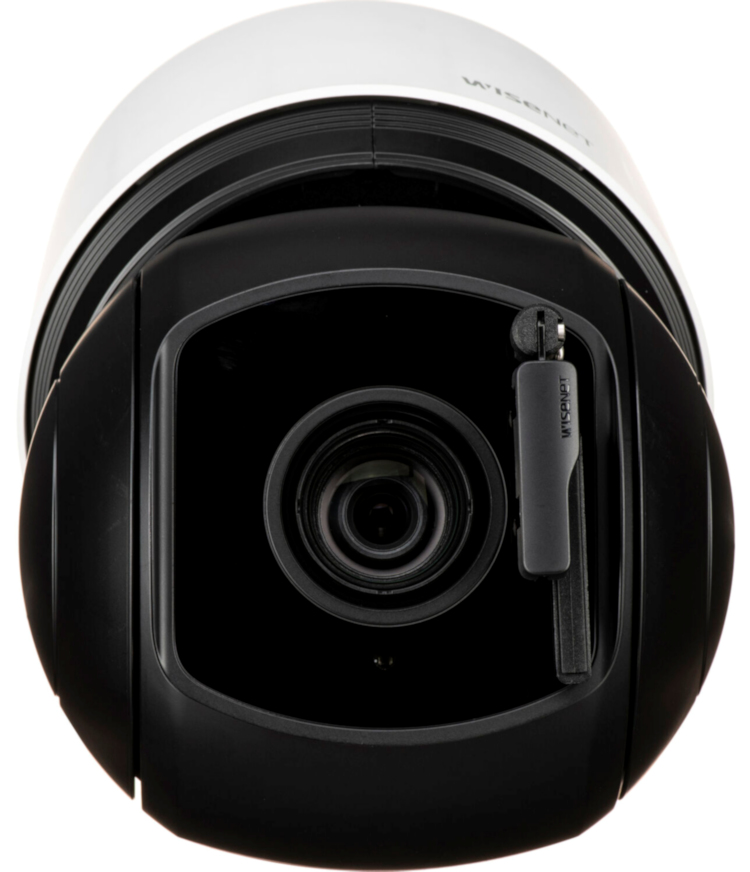

Hanwha WiseNet 7 XNP-9300RW 8Megapixel PTZ Network Dome Camera with Night Vision, 5-150 mm Lens and Wiper

  • 4K resolution
  • IR viewable length : 200m (656.17 ft)
  • 30x optical zoom lens (5mm ~150mm) (57.42° ~ 2.19°)
  • -20° tilt look-up capability to see above the horizon
  • H.265, H.264, MJPEG triple codec support
  • Multiple streaming, WiseStream II support
  • Day & Night (ICR), extreme WDR
  • DIS with Built-in Gyro sensor
  • Azimuth display (Cardinal & intermediate directions)
  • AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
  • Dual Memory slots (Maximum 512GB x 2)
  • IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
  • HPoE (IEEE802.3bt, Class6, Type3, Injector included)
  • UL CAP Cybersecurity certified

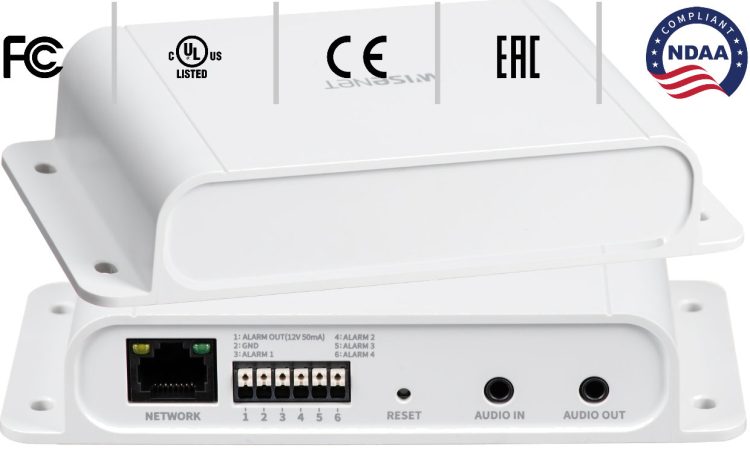

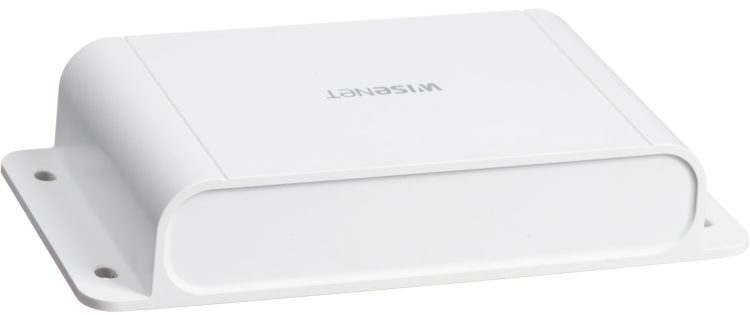

  • Optional SPM-4210 Network I/O box for alarm and audio I/O
Compare

Description

It’s a top-quality security camera that works well in different environments and security situations. The design is strong and durable, which makes it suitable for outdoor installations where weather conditions can be unpredictable.

The powerful optical zoom lens of the XNP-9300RW is one of the standout features.

This makes it ideal for large outdoor areas such as parking lots, warehouses, and construction sites. The camera’s advanced infrared capabilities make clear and sharp images even in complete darkness.

In addition to its impressive hardware capabilities, the XNP-9300RW also offers high-definition video output, supported by compression technologies. This not only provides high-definition clarity but also maximizes storage and bandwidth efficiency, making it a cost-effective choice for any surveillance system. This feature is especially useful for installations with numerous cameras, as it helps to reduce the overall cost of the system.

The XNP-9300RW also comes equipped with a suite of intelligent surveillance features to meet dynamic monitoring requirements. These include motion and face detection, object tracking, and more, allowing for more efficient and effective monitoring. The camera’s ability to adapt to changing surveillance needs makes it a versatile and powerful addition to any security network.

Finally, the XNP-9300RW is compliant with various industry standards and protocols, ensuring seamless integration into existing surveillance systems. This makes it a convenient and hassle-free choice for both new and existing security networks. Brought to you by Collsam Security, the Hanwha X XNP-9300RW WiseNet network surveillance camera offers advanced features and exceptional performance, making it a top choice for any security installation.

Datasheet

Download

Hanwha XNP-9300RW PTZ network surveillance camera. Designed for tough environments offers advanced features for precise monitoring Datasheet.

Manual

Download

Hanwha XNP-9300RW PTZ network surveillance camera. Designed for tough environments offers advanced features for precise monitoring Manual.

Quick Guide

Download

Hanwha XNP-9300RW PTZ network surveillance camera. Designed for tough environments offers advanced features for precise monitoring Quick Guide.

Video
Imaging Device1/2.8” CMOS
Resolution3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960,
1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360,
320×240
Maximum Frame rateH.265/H.264: Maximum 30fps
MJPEG: Maximum 30fps
Minimum IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Lens
Focal Length (Zoom Ratio)5~150mm(30x) zoom
Maximum Aperture RatioF1.6(Wide) – F4.56(Tele)
Angular Field of ViewH: 57.42˚(Wide)~2.19˚(Tele) / V: 33.54˚(Wide)~1.25˚(Tele)
Minimum Object Distance3m(9.84ft)
Focus ControlOne-shot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360˚ Endless
Pan SpeedMaximum 500˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range110˚(-20˚~90˚) -20˚ tilt look-up capability to see above the horizon.
Tilt SpeedMaximum 350˚/sec, Manual: 0.024˚/sec~250˚/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule±0.1˚,
Preset AccuracyPan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day and NightAuto(ICR)/Color/BW/Schedule
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport (built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, rectangular Support
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
Analytics
Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
* Audio detection, Sound classification (with NW I/O Box)
Alarm TriggersAnalytics, Network disconnect
* Alarm input (with NW I/O Box)
Alarm EventsFile upload via FTP and e-mail Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset
Handover
* Alarm output (with NW I/O Box)
IR Viewable Length200m(656.17ft), Wise IR
Water RemovalSupport (with wiper and lens heater)
Auto-TrackingObject auto-tracking (Person/Vehicle), Target lock tracking
Network
EthernetMetal shielded RJ-45 (10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast (20 users) / Multicast (128 user) Multiple streaming (Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication
IP Address Filtering User access log
802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI (HTTP API)
Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 2 slots 1TB total maximum capacity
Memory4GB RAM, 512MB Flash
Environmental and Electrical
Operating Temperature / HumidityNormal : -40 °F (-40 °C) ~ 131 °F (55 °C)) / Intermittent : -40 °F (-40 °C) ~ 140 °F (60 °C)) Maximum Temperature based on NEMA-TS 2(2.2.7) : 165 °F (73.89 °C) Less than 95% RH(Non-condensing)
Storage Temperature / Humidity-58 °F (-50 °C)~ +140°F / Less than 95% RH(Non-condensing)
CertificationIP66, IK10(Camera body only), NEMA4X, UL CAP, NEMA TS-2 2.2.8 (Vibration) and 2.2.9 (Shock)
Input VoltageHPoE(IEEE802.3bt, Class6, Type3, Injector included)
Power ConsumptionHPoE (Camera only): Maximum 42W, typical 20W
Mechanical
Color / MaterialWhite, Black / Aluminum+Polycarbonate
RAL CodeWhite: RAL9003 / Black: RAL9005

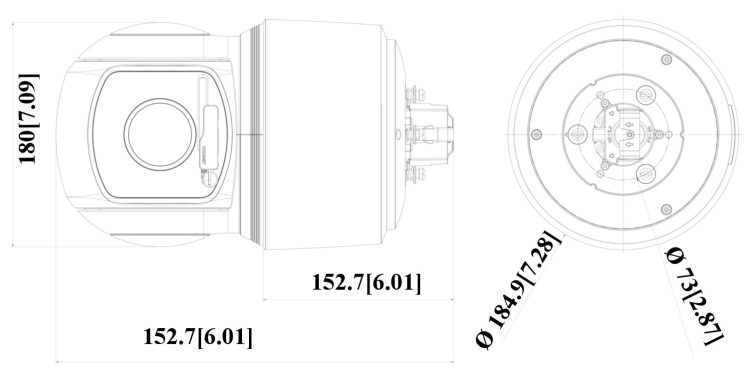

Product dimensionsØ  7.28 inches (18.49 cm) x 12.55 inch (31.88 cm)
Weight11.90lb (5.4 kg)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 398.7ft (121.52 m)) / Tele: 11424.9ft (3.48 km)
Observe (63PPM/ 19PPF)Wide: 159.5ft (48.62 m) / Tele: 4570.0ft (1.39 kilometers)
Recognize (125PPM/ 38PPF)Wide: 79.7ft (24.29 m) / Tele: 2285.0ft (0.7 kilometers)
Identify (250PPM/ 76PPF)Wide: 39.8ft (12.13 m) / Tele: 1142.5ft (348.23 m)
