EMNT-5432-4K1
Price range: $633.95 through $1,943.95

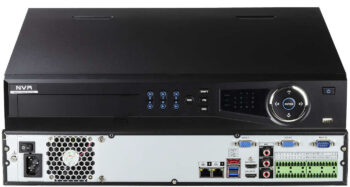

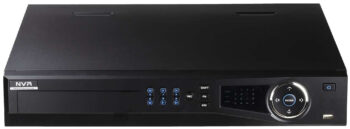

Eyemax EMNT-5432-4K1 32 Channel NVR System, up to 12MP Resolution IPC, AI Functions by Cameras
- 32-channel IP video access
- Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch · Max 320 Mbps incoming bandwidth
- Up to 12MP resolution for live view and playback
- 1-channel fisheye dewarping (AI by NVR)
- Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
- Description
- Product Documents
- Spicifications
- Additional information
- Collsam Brands
Description
Upgrade your surveillance system with the Eyemax EMNT-5432-4K1 32-channel Network Video Recorder (NVR). This NVR system was specifically made for IP video surveillance applications. It provides cutting-edge features that will give you the best quality video and increased security. With support for 4K resolution processing and various AI functions when used with compatible cameras, you can trust this NVR to capture every detail with stunning clarity.
Experience crystal-clear live view and playback with the Eyemax EMNT-5432-4K1. This NVR supports up to 12MP resolution, ensuring that you never miss a single detail. With a max 320 Mbps incoming bandwidth, it can handle high-resolution footage without any lag or buffering. This means that you can monitor your premises in real-time without any delay, enhancing your overall security.

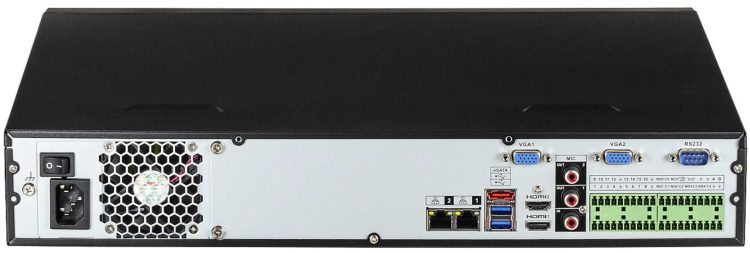

Featuring two HDMI ports (one supporting up to 4K resolution) and two VGA ports output, the Eyemax EMNT-5432-4K1 offers versatile connectivity options. You can easily connect multiple display devices such as monitors or TVs. This provides you with a comprehensive view of your entire property. This NVR also uses Smart H.265+/H.265/H.264 video compression. As a result, you can save on storage space without compromising on video quality.
The Eyemax EMNT-5432-4K1 offers ample storage capacity with 4 SATA III ports, each supporting up to 10 TB for a single HDD, and one eSATA port. This means you can store a large amount of footage without worrying about running out of storage space. Equipped with two RJ-45 (1 Gbps) self-adaptive Ethernet ports, this NVR ensures fast and stable network connectivity. Therefore, it is ideal for large-scale surveillance applications.
With advanced security features such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR (Automatic Number Plate Recognition), people counting, and heat maps, the Eyemax EMNT-5432-4K1 takes your surveillance to the next level. These features allow you to customize your security settings. You can also receive alerts for any suspicious activity, ensuring the safety of your property and assets.
Furthermore, the Eyemax EMNT-5432-4K1 features an open architecture compatible with the ONVIF 2.4 protocol. This allows for interoperability with various third-party cameras. You have the flexibility to choose the cameras that best suit your needs. Don’t compromise on the security of your property, upgrade to the Eyemax EMNT-5432-4K1 NVR system today and experience the ultimate surveillance solution.
| System | |
|---|---|
| Main Processor | Industrial embedded micro-processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| Perimeter Protection by Camera | |
| Performance | 20 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Recognition by Camera | |
| Performance | 14 channels |
| Face Attributes | 6 attributes: Gender; age; glasses; expression; mouth mask, and beard |
| AI Search | Search for pictures by channel, time and face attributes |
| SMD Plus by Camera | |
| Performance | 32 channels |
| AI Search | Search by target classification (human, vehicle) |
| Video Metadata by Camera | |
| Performance | 16 channels |
| Human Body | Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella |
| Vehicle | Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region |
| Non-motor Vehicle | Type; color; number of passengers; helmet |
| AI Search | Supports searching for target video by metadata |
| ANPR by Camera | |
| Performance | 4 channels |
| Stereo Analysis by Camera | |
| Performance | 16 channels |
| AI Search | Search by target classification (fall detection, people approach detection, people No. exception detection, people staying detection, or violence detection) |
| Video | |
| Access Channel | 32 |
| Network Bandwidth | 320 Mbps for access 320 Mbps for storage 320 Mbps for forwarding |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
| Decoding Capability | 16-channel@1080P (30 fps) |
| Video Output | HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720 HDMI2/VGA2: 1920 × 1080 VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/ HDMI2 support heterogeneous output |
| Multi-screen Display | 1st Screen: 1 / 4 / 8 / 9 / 16 / 25 / 36 2nd screen: 1 / 4 / 8 / 9 / 16 |
| Third-Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
| Compression | |
| Video | Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
| Audio | PCM; G.711A; G.711U; G.726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, and more.); P2P |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | 1 / 4 / 9 / 16 |
| Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS) |
| Storage Method | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off. |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
| Intelligent Alarm | Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
| External Port | |
| Audio Input | 1 channel, RCA connector |
| Audio Output | 2 channels, RCA connector, which supports voice intercom output |
| HDD | 4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environmental temperature. |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| eSATA | 1 eSATA |
| RS-232 | 1 channel, used to debug and pass through serial data |
| RS-485 | 1 channel, used to control PTZ, and it supports multiple protocols |
| USB | 1 front USB 2.0 port, 2 rear USB 3.0 ports |
| HDMI | 2 |
| VGA | 2 |
| Network | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| General Parameter | |
| Power Supply | Single, 100V–240V AC, 50 Hz–60 Hz |
| Power Consumption | <16.7W (without HDD) |
| Net Weight | 9.5 lb (4.31 kg) (without HDD) |
| Gross Weight | 15.4 lb (6.99 kg) (without HDD) |
| Product Dimensions | 17.3 inches (43.94 cm) × 16.2 inches (41.15 cm) × 3.0 inches (7.62 cm) |
| Package Dimensions | 20.6 inches (52.32 cm) × 19.4 inches (49.28 cm) × 7.9 inches (20.07 cm) |
| Operating Temperature | 14 °F (-10 °C) to 131 °F (55 °C) |
| Storage Temperature | 32 °F (0°C) to 104 °F (40°C) |
| Operating Humidity | 10%–93% (RH) |
| Storage Humidity | 30%–85% (RH) |
| Operating Altitude | 9,843 ft (3 km) |
| Certifications | CE: EN55032; EN55024; EN50130 ~ 4; EN60950 ~ 1 FCC: Part 15 Subpart B; ANSI C63.4 ~ 2014 UL: UL 60950 ~ 1 |
Additional information
| Weight | 17 lbs |
|---|---|
| Dimensions | 20 × 18 × 5 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 24 TB Hard Drive, 36 TB Hard Drive, 48 TB Hard Drive |
