NVR504-32B
Original price was: $1,359.00.$832.00Current price is: $832.00.

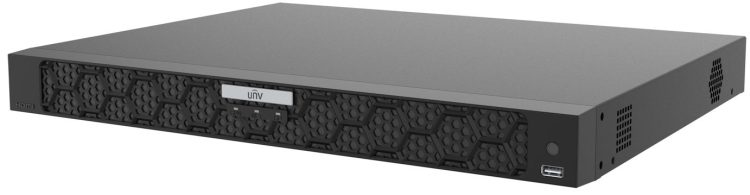

Uniview NVR504-32B 32 Channel NVR, High Mbps, High Decoding, PoE, NDAA
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
Uniview NVR504-32B. It is perfect for enterprise-level IP surveillance systems. With its exceptional high-decoding performance, this NVR can support camera resolutions of up to 16 Megapixels. Therefore, it is ideal for large-scale surveillance operations. Each video clip is securely stored because of its enormous internal storage capacity. In addition, it is easily accessible for future reference.
This top-notch NVR is designed to survive the rigors of high-bandwidth, round-the-clock environments. Thus, it is the go-to choice for organizations that require reliable and top-performing surveillance solutions. It can support up to 32 IP camera channels with an incoming bandwidth of 320 Mbps. Additionally, it offers an outgoing bandwidth of 160 Mbps. This guarantees the smooth capture and recording of every video stream. There are no disruptions during recording.
One of the standout features of the Uniview NVR504-32B is its compatibility with Ultra 265, H.265, and H.264 formats. With this compatibility, it allows for heavy optimization and reduction of storage footprint.
As a result, it is a great option for businesses that need to store a lot of video footage for a long time. The NVR can smoothly decode up to 4 channels at 4K @ 30 fps. Alternatively, it can handle 2 channels at 16 MP @ 30 fps. This guarantees that all the video is recorded in high definition.
In terms of storage capacity, the Uniview NVR504-32B offers impressive flexibility. It features 4 SATA interfaces. Each interface supports up to 16 TB per hard drive, for a maximum total capacity of 64 TB. Hardware redundant storage can help to further expand this. Options for RAID 1 and RAID 5 configurations are also available. Consequently, every video clip is safely saved and available when required.
Moreover, the Uniview NVR504-32B has numerous cutting-edge features. These features make it a versatile and powerful surveillance solution.
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR504‑16B: Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP (4800×2688) @30, 2 x 12MP @30, 2 × 4K @30, 4 x 5MP @30, 6 x 4MP @30, 8 x 3MP @30, 14 × 1080P @30, 16 × 720P @30, NVR504‑32B: Ultra 265/H.265: 2 x 16MP @30, 2 x 12MP @30, 4 × 4K @30, 6 x 5MP @30, 8 x 4MP @30, 10 x 3MP @30, 16 × 1080P @30, 32 × 960P @25 H.264: 2 x 16MP (4800×2688) @30, 2 x 12MP @30, 2 × 4K @30, 4 x 5MP @30, 6 x 4MP @30, 8 x 3MP @30, 14 × 1080P @30, 30 × 720P @30, 32 x D1 |
| AudioCompression | G.711A, G.711U |
| Network | |
| IncomingBandwidth | 320Mbps |
| OutgoingBandwidth | 160Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6 |
| Browser(Plugin) | Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
| Video/AudioInput | |
| IPVideoInput | NVR504‑16B: 16‑ch NVR504‑32B: 32‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI: 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGAOutput | VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR504‑16B: 1/4/6/8/9/16 NVR504‑32B: 1/4/6/8/9/16/25/32 |
| CorridorModeScreen | NVR504‑16B: 3/4/5/7/9/10/12/16 NVR504‑32B: 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-wayAudio | 1‑ch, RCA (using the audio input and output) |
| Snapshot | |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | |
| RecordingResolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | 16‑ch |
| Smart | |
| VCADetectionbyIPC | Face Detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| VCASearch | Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| SmartbyIPC | All channels (up to 8 images/s in total): face detection, vehicle detection, temperature detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | |
| GeneralAlarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| AlertAlarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
| GUILanguage | |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16TB for each HDD (the maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 1, 5 |

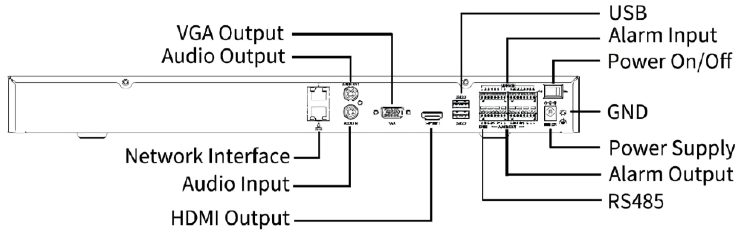

| ExternalInterface | |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front: 1 x USB 2.0; rear panel: 1 x USB 2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| AlarmIn | 16‑ch |
| AlarmOut | 4‑ch |
| PowerSupply | DC 12V/5A |
| PowerSwitch | Support |
| WorkingEnvironment | |
| WorkingTemperature | 14°F (-10°C) ~ 131°F (55°C) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 20W |
| Dimensions | |
| Weight(withoutHDD) | 7.50 lb (3.4 kg) |

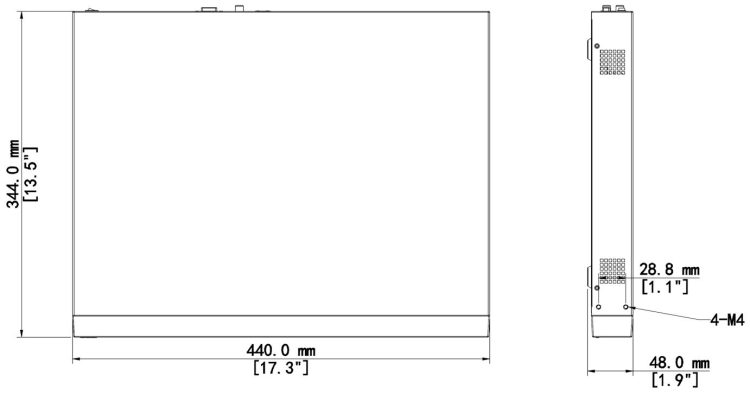

| Dimensions | 17.3 inches (43.94 cm) × 13.5 inches (34.29 cm) × 1.9 inches (4.83 cm) |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part 15, Subpart B |
