CN-FB1606Z
Original price was: $0.99.$0.20Current price is: $0.20.

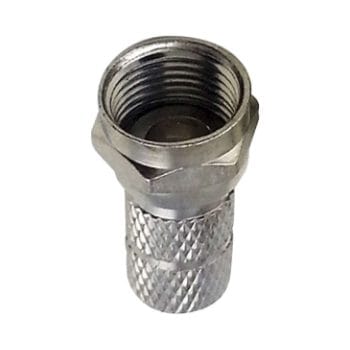

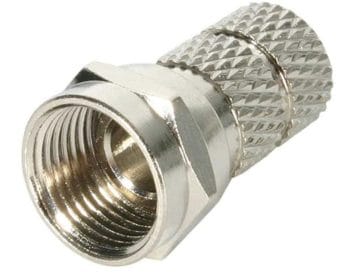

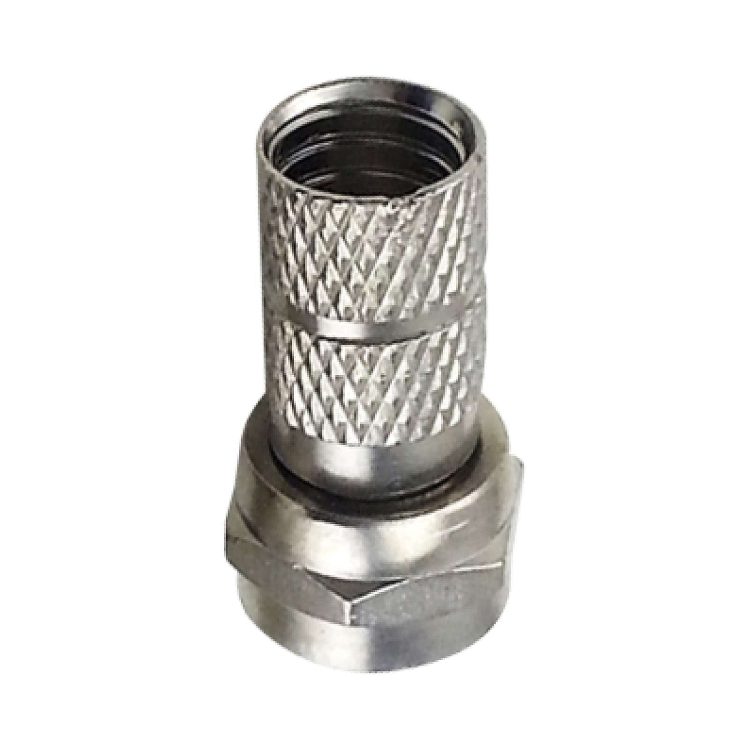

CN-FB1606Z RG6 Male F-connector Zinc Alloy Plated Twist-on type
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
Description
CN-FB1606Z F-Type RG6 Twist-on RG-6U Coaxial Coax Connector for RG-6 RG6 RG 6 Zinc Alloy
The CN-FB1606Z F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set-top boxes and cable modems.
CN-FB1606Z is a 75 Ω connector featuring 30 dB return loss at 1GHz. Additionally, these connectors accept .022-.042 in. diameter conductors and comply with a 3/8-32 thread specification.
The F-Type connector is a threaded alternative to the slide-on G-Type connector.
CN-FB1606Z Features and Benefits
CN-FB1606Z contact design provides truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics
30 dB return loss at 1GHz ensures high performance specification that outperforms competition
Applications
- CCTV Equipment
- Head End Equipment
- Set-Top Boxes
- CATV
- High Speed Cable Modems
- CIM’s
- Hybrid Fiber Coax Networks
Features and Benefits
- Easy twist on installation to any dual-shield RG6 coaxial cable
- HIgh performance F-type connector capable of a bandwidth of up to 3 GHz
- Bandwidth: 0 MHz to 3 GHz
- Impedance: 75 Ohms
TECHNICAL CHARACTERISTICS
- Temp. range……………… …-40 ℃～ +60 ℃
- Impedance……………….. …75 Ω
- Frequency Range…………..DC～1GHz
- Working Voltage…………. ..170V max
- Withstand Voltage……… ….500V RMS
- Center Contact……………….≤10 m Ω
- Outer Contact…………………≤5 mm Ω
- Insulation resistance ………..≥1000 m Ω
- VSWR Straight……………….≤1.20
- Right angle?…………………..≤1.30
- Durability(mating)…………….500 (cycles)
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 1 × .15 × .15 in |
