CN-FB1616

Description

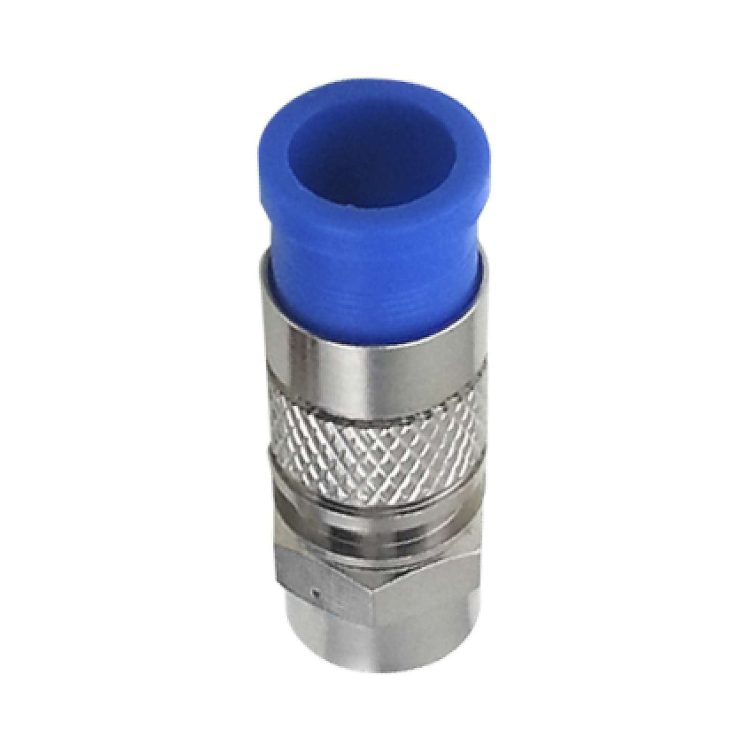

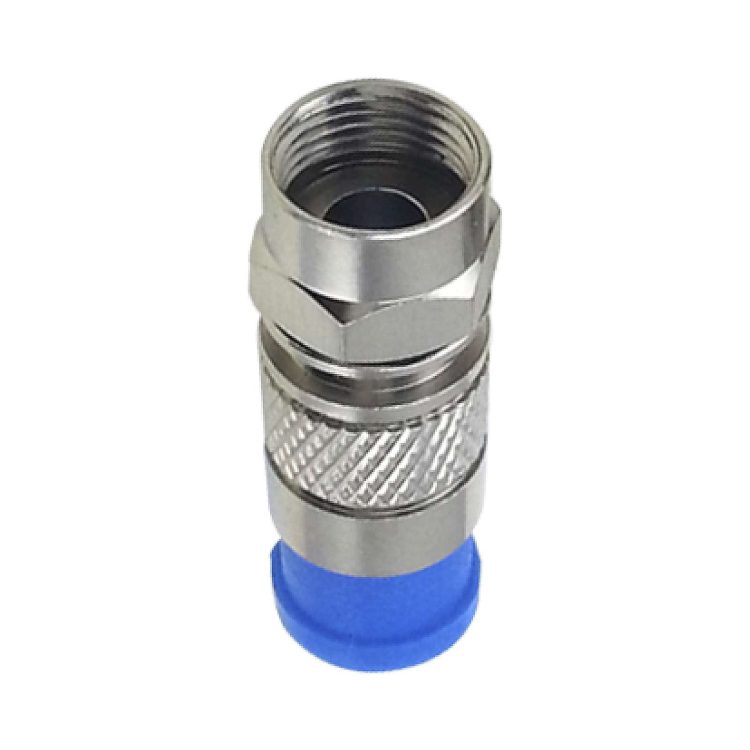

CN-FB1616 RG6 Male F-connector Compression type

CN-FB1616 F Connector RG6 Male Type Connector

We at Collsam offers, a full range of cable mount BNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Appliance of the CN-FB1616 :

• Consumer Electronics: Satellite Boxes, DTH set-top boxes and Antennas
• Telecommunications: CATV, CATV Networks.

CN-FB1616’s Features and Specifications:

CN-FB1616 Features:

• F Connector,Straight/180°, Male Plug, Compression RG6 Cable,75ohm,Brass plating nickel
• Compact Design for less installation space required;
• Easy quick connect and disconnect coupling;

CN-FB1616 Specifications:

• Impedance：75 ohm
• Frequency Range: 0~3Ghz
• VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
• Withstanding Voltage: 500 V RMS
• Working Voltage: 170 V RMS
• Center Contact Resistance ≦ 10 m Ω
• Outer Contact Resistance ≦ 5 m Ω
• Insulation Resistance ≧ 1000 m Ω
• RF Leakage -100dB min @1GHz

Mechanical Characteristics

• Coupling: 3/8-32 thread
• Cable Retention: 20 lbs min.
• Durability (mating) ≧ 500 cycles

Environmental Characteristics

• Temperature Range: -40 °C ~ +60 °C
