CN-TB601
Original price was: $15.99.$9.19Current price is: $9.19.

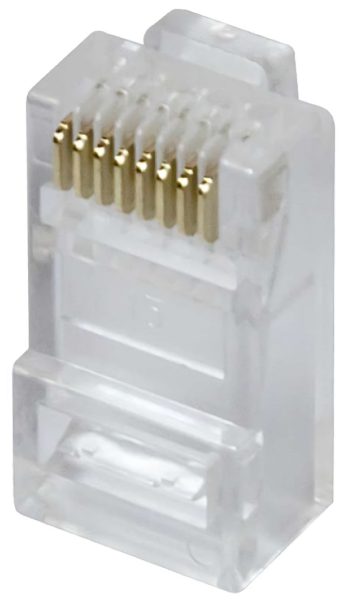

High-Speed CAT6 RJ45 Connector UNL CN-TB601 Pack of 100
- RJ45 CAT6 connector, 8 position, 8 contact, for 100 Ω balanced twisted pair 250 MHz cables
- 50 micro-inch gold plating on contact mating area for long-term reliability in connectivity, even after hundreds of mating cycles
- For use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041” diameter.
- Max cable jacket has an outer diameter of .290”
- Comply with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports
- Designed to work seamlessly with any industry standard modular plug crimping tools
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors
- UL Listed
- PoE and PoE++ compatible
- Description
- Product Documents
- Collsam Brands
- Reviews (0)
Description
The UNL CN-TB601 is a state-of-the-art RJ45 CAT6 connector that is employed to terminate CAT6 network cables. This connector is an essential component for creating a reliable and efficient network connection. With its sturdy construction and gold-plated contacts, it ensures a secure and stable connection for your Ethernet network.
RJ45 is the industry standard for network connectors, and the UNL CN-TB601 is no exception. It is specifically designed for CAT6 cables, which are known for their high-speed data transmission capabilities. This makes it the ideal choice for networks that require high bandwidth and fast data transfer, such as large office networks or data centers.

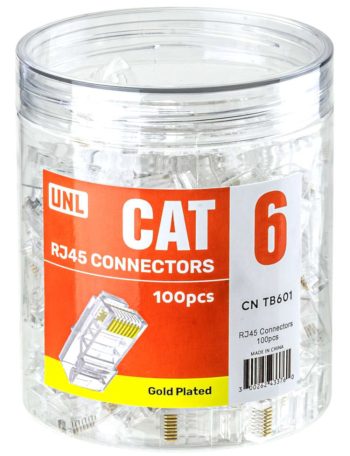

Each pack of the UNL CN-TB601 contains 100 connectors, making it a cost-effective solution for large-scale network installations. This also makes it convenient for professionals who need to make multiple connections regularly. With its compact size and easy installation process, it is suitable for both commercial and residential applications.
One of the key features of the UNL CN-TB601 is its gold-plated contacts. This added layer of protection enhances the durability of the connector and improves its signal transmission capabilities. The gold plating ensures that there is minimal interference and signal loss, resulting in a strong and reliable network connection.
The UNL CN-TB601 is not limited to just computer networks. It is also commonly used in CCTV (Closed-Circuit Television) and access control applications. In CCTV systems, these connectors help to transmit surveillance footage from cameras to a central monitoring station.
In access control systems, they link things like keypads and card readers to a network. This versatility makes the UNL CN-TB601 a valuable component for various security systems.
Brand
UNL
UNL CCTV Power and Network Accessories
UNL provides practical power and network products for professional CCTV and low-voltage installations. The available selection focuses on centralized camera power, high-capacity PoE networking, and CAT6 cable termination.CCTV Power Distribution Boxes
The UNL power-box selection includes 8-, 16-, and 18-channel models. These metal enclosures centralize 12V DC power for compatible surveillance cameras.Individual protected outputs help prevent one output fault from affecting every connected device. Lockable enclosures also protect the internal terminals and power components.Available models include:- TR-CU12VDC08P16A: Professional 8-channel, 12V DC power supply for compatible high-resolution cameras.
- TR-CU12VDC16P32A: Professional 16-channel, 12V DC, 20A power supply with protected outputs.
- TR-C12VDC18P20A: 18-channel, 12V DC, 20A multi-channel power supply.
52-Port Gigabit PoE Switch
The HA-UPW-3D448UG is an unmanaged network switch for high-capacity surveillance networks. It provides 48 Gigabit PoE ports and four 10G SFP uplink ports.Ports 1 through 4 support higher-power PoE devices. Ports 5 through 48 support standard PoE and PoE+ equipment. The switch includes a built-in power supply with a total PoE capacity of up to 750 watts.This model can connect compatible IP cameras, wireless access points, intercoms, and other powered network devices. Confirm each device’s PoE standard and power demand before connection.CAT6 RJ45 Connectors
The CN-TB601 package contains 100 CAT6 RJ45 connectors with gold-plated contacts. Installers can use them to terminate compatible solid or stranded network cable.Use the correct crimping tool and wiring standard. Test every completed connection before placing the cable into service.Installation Planning
Select each UNL product according to the complete system design. Consider the number of cameras, total current demand, PoE power budget, network bandwidth, cable category, and installation environment.Collsam Security supplies UNL CCTV power and network accessories for compatible security installations.Only logged in customers who have purchased this product may leave a review.
