AU-1U1602H2B5

0 out of 5

( There are no reviews yet. )

Original price was: $211.99.Current price is: $125.95.

Paige® AU-1U1602H2B5 16/2 OFC Audio and Security Cable

16 AWG, two-conductor cable

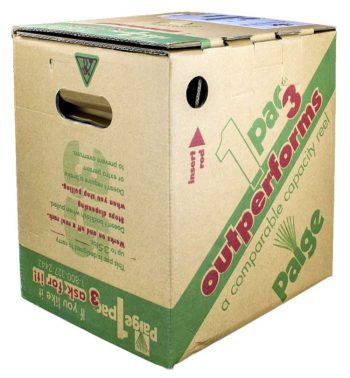

500-foot pull box
99% oxygen-free copper
Flexible 65/34 stranded conductors
Flame-retardant PVC insulation and jacket
Integrated ripcord
CM rated and RoHS compliant
Suitable for audio and security wiring

SKU: AU-1U1602H2B5 Categories: Accessories, Alarm Cables, Cables and Accessories, Power Cables Tags: 16 AWG audio cable, 2 conductor stranded cable, 500 ft cable, audio and security wiring, bare copper cable, flame-retardant PVC cable, OFC security cable, oxygen-free copper cable, Paige AU-1U1602H2B5, premium audio cable, RoHS compliant cable, unshielded low-voltage cable

Description
Product Resources
Additional Information
Collsam Brands
Reviews

Description

The Paige® Cable AU-1U1602H2B5 delivers reliable performance for professional audio and low-voltage security installations. It includes two stranded 16 AWG conductors and comes in a convenient 500-foot pull box for larger projects.

The conductors use 99% oxygen-free copper to support strong conductivity and clear, stable signal transmission. In addition, the 65/34 stranding provides flexibility for easier pulling, routing, and termination.

Red and black FR-PVC insulation makes each conductor easy to identify during installation. A flexible white FR-PVC outer jacket protects the conductors, while the built-in ripcord makes jacket removal faster and easier.

The cable has a nominal outside diameter of 0.212 inches (5.38 mm) and a jacket wall thickness of 0.026 inches (0.66 mm). Its CM rating supports general-purpose communications installations. It is also RoHS compliant and rated for temperatures up to 60°C.

Paige® Cable AU-1U1602H2B5 provides the flexibility, durability, and signal quality needed for residential and commercial audio or security wiring.

Datasheet

Download

Technical datasheet for the Paige CB-AU-1U1602H2B5 audio cable, including conductor construction, cable length, jacket information, electrical specifications, ratings, dimensions, and approved applications.

Additional information

Weight	43 lbs
Dimensions	14 × 8 × 12 in
