Platinum Tools ezEX44 RJ45 Connector: for Cat6 and Cat6A Cables

Brand New For You

Upgrade your network with ease using the Platinum Tools ezEX44 Pass-Through RJ45 Connector. Designed for Cat6 cabling, these high-performance modular plugs accommodate various insulation diameters and support up to 10 gigabits. Easily verify color sequence and minimize near-end crosstalk for optimal data transmission. Requires matching crimp frame and die set. Fully certified for peace of mind.

ezEX44

0 out of 5

( There are no reviews yet. )

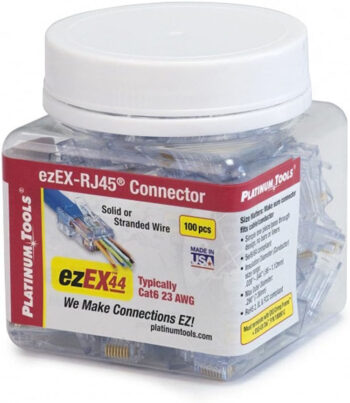

Platinum Tools 202044J ezEX44 Cat6 Connector. 100-count jar

Hi-Lo stagger to isolate each conductor
Simple one-piece/pass-through design, no bars or liners
Insulation Diameter (Conductor) Size range: .033” – .038” (0.84 –0.97mm)
Max Outer Diameter: .290” (7.36mm)
50-micron gold-plated contacts
5e/6/6A compliant
Solid or Stranded 24-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat5e (Sm. 6)
Shielded (STP) Internal Ground available
Made in the USA
US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.

SKU: 202044J EZEX44 UPC: 849160008514 Categories: Accessories, Cable Connectors, Cables And Accessories, RJ45 CAT6 connector Tags: CAT6, NDAA Compliant;

Description
Product Documents
Additional information
Reviews (0)

Description

The Platinum Tools ezEX44 Pass-Through RJ45 Connector is a must-have for any professional network installer. In fact, many installers prefer the ezEX44 for its outstanding performance. This high-performance modular plug is designed specifically for terminating larger diameter twisted-pair network cables. Therefore, it is the perfect choice for Cat6 cabling.

However, it is also backward and forward compliant with Cat5e and Cat6A data applications. This provides versatility and convenience for various network setups.

These connectors come in a 100-piece jar, making it easy to stock up and have plenty on hand for your networking projects. Furthermore, they are designed to fit insulation diameters ranging from 0.039 inches (0.99 mm) to 0.044 inches (1.12 mm).

They can also accommodate 22-to-24 AWG solid or stranded conductors. With a maximum cable jacket OD of 0.290 inches (7.36 mm), these connectors are suitable for a wide range of cable sizes. For larger projects, having ezEX44 connectors in your toolkit ensures you can tackle different cable sizes seamlessly.

Featuring an unshielded (UTP) configuration, these connectors boast 50-micron gold-plated contacts for optimum data transmission and corrosion resistance. For reliable PoE setups, choosing the ezEX44 model delivers consistent results. This makes them ideal for high-speed data networks up to 10 gigabits. They are recommended for use with PoE/PoE+ systems.

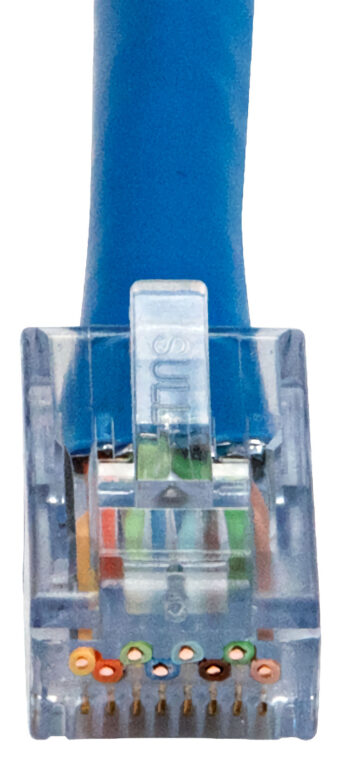

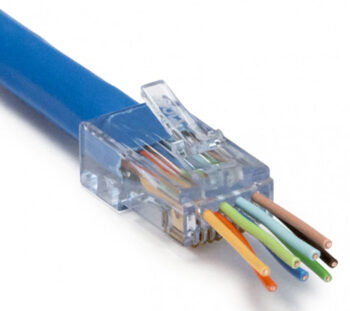

The contacts are also designed to easily pass out the front end of the connector. This allows you to verify the proper T568A or T568B color sequence before crimping and cutting flush in one motion.

The Platinum Tools ezEX44 Pass-Through RJ45 Connector employs a staggered inner load-bar alignment, which helps to isolate adjacent conductors. For professionals seeking minimized crosstalk, the design of ezEX44 stands out. This innovative design minimizes near-end crosstalk (NEXT) while accommodating larger wire insulation. Therefore, it ensures maximum performance and signal integrity.

For proper termination and an even flush-cut, these connectors require the use of the matching Platinum Tools EXO Crimp Frame and EXO-EX Die Set (part number 100061C).

These connectors have been fully certified under TIA, TAA, RoHS, UL, and FCC standards, giving you peace of mind in knowing that you are using a high-quality and reliable product. When only the ezEX44 connector will do, you can trust its superior quality. With its superior performance and compatibility, the Platinum Tools ezEX44 Pass-Through RJ45 Connector is an essential tool for any network installation professional.
