CB-C5E-CD-BK

0 out of 5

( There are no reviews yet. )

Original price was: $278.99.Current price is: $159.95.

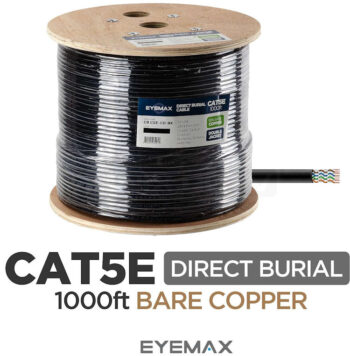

Eyemax B-C5E-CD-BK Cat5e UTP Direct Burial 1000ft (0.3 kilometers) Dry-type, Double Jacket

ETL Listed (UL 444 Standard)
CAT5E
1000 ft (0.3 km)
99% Bare Copper
Direct Burial
Jelly Filled
24AWG / 4 Pair
Double Jacket

SKU: CB-C5E-CD-BK Category: Ethernet Cables Tags: 24 AWG UTP, Bare Copper, Bulk Ethernet Cable, CAT5e UTP Cable, Direct Burial, Ethernet (PoE) cables, Ethernet 99% Copper, ETL Listed, Gigabit Ethernet Cable, UL Listed Ethernet Cable

Description

The Eyemax CB-C5E-CD-BK Cat5e UTP Direct Burial Ethernet Cable is the perfect solution for outdoor and underground networking installations. It comes with a large spool of 1,000 feet (304.8 m). Fast and dependable connectivity is the goal of this bulk network cable’s design. Even in the most difficult settings, it exhibits remarkable performance.

This cable works well for connecting outdoor IP security cameras. Additionally, it is good for network infrastructure between buildings and gate control systems back to the main building network.

One of the standout features of this Ethernet cable is its rugged construction. CB-C5E-CD-BK is designed specifically for outdoor use. In the absence of a conduit, the cable might be buried underground. As a result, this makes it ideal for installations in areas with harsh weather conditions. It is also ideal where there is a risk of damage from heavy machinery or vehicles.

Weather resistance is another feature of the cable’s double jacket. It provides long-lasting protection against moisture, UV rays, and other environmental factors.

There are four pairs of the Eyemax CB-C5E-CD-BK Cat5e UTP cables. To reduce interference and crosstalk, each pair is wound around the other. As a result, this leads to a more stable and efficient data transfer. Therefore, it allows for high-speed transmission of up to 1000 Mbps.

The cable also features a gel-filled dry-type core variant that handles water blockage. This ensures maximum performance and longevity even in wet or humid conditions.

This Cat5e Ethernet cable boasts a solid bare copper construction. Each wire is made up of 24 AWG of solid bare copper. This indicates that the cable is composed of 99% pure copper, a material that is dependable and highly conductive for data transmission. The use of pure copper also ensures that the cable meets ETL standards. Furthermore, it conforms to UL 444 standards. This guarantees its quality and reliability.

Datasheet

Download

Datasheet Eyemax CB-C5E-CD-BK Cat5e UTP Direct Burial Ethernet Cable. Durable, water-resistant, and ETL listed for reliable performance. Perfect for connecting buildings, IP cameras, and gate control systems. Order now for 1,000 feet (0.3 km) of high-quality Cat5e cable!

PHYSICAL SPECIFICATIONS
Cable Construction	24 AWG UTP * 4P 0.50 mm ±0.01
Conductor Material	Solid Bare Copper
Insulation Material	HDPE
Insulation Thickness	Min 0.15mm
Insulation Diameter	0.89 mm ± 0.03 mm
Filler Material	No Filler
Number of Insulation	4 Pair
Pair Colors
P1	Blue/White-Blue
P2	Green/White-Green
P3	Orange/White-Orange
P4	Brown/White-Brown
Jacket-1
Material	PVC
Thickness	Min 0.4mm
Diameter	4.80mm+-0.2mm
Jacket-2
Material	PE
Thickness	Min 0.55mm
Diameter	6.0mm+-0.2mm
Rip Cord	Nylon
ELECTRICAL CHARACTERISTICS
Temperature Range	-4°F (-20°C) ~ 197°F (75°C)
Voltage Rating	≤300V
DC Resistance	≤9.38Ω /100m
DC Resistance Unbalance	≤5%
Delay Skew	45nS /100m
Pair-to-Ground Capacitance Unbalance	≤330pF/100m
Insulation Resistance	≥5000MΩ·km
Spark Test	2.5 KV DC
Dielectric Strength	1.5 KV AC for 2s
Cold Bend	-4°F (-20°C) for 4 hr
Min. Bending Radius.	≥4 times of O.D.
Max. Pulling Tension.	≤110N
APPLICABLE STANDARD
Standards	ANSI/TIA-568.2-D ISO/IEC 11801-1 IEC 61156-5 UL 444 CSA 22.2 No.214
COMPLIANCE & CERTIFICATIONS
Certifications	c(ETL)us Listed RoHS Compliant CE
FEATURE
Features	Footage Markers on Cable Jacket 500ft or 1000 ft (304.8 m) in Box or Spool Color: Per Request of Clients Test : Fluke

Additional information

Weight	25 lbs
Dimensions	14 × 14 × 19 in
