CJB-E137

Protect your security camera's cables from the elements and vandalism with Eyemax CJB-E137 junction box.

CJB-E137

Original price was: $14.99.Current price is: $8.95.

In stock

Original price was: $14.99.Current price is: $8.95.

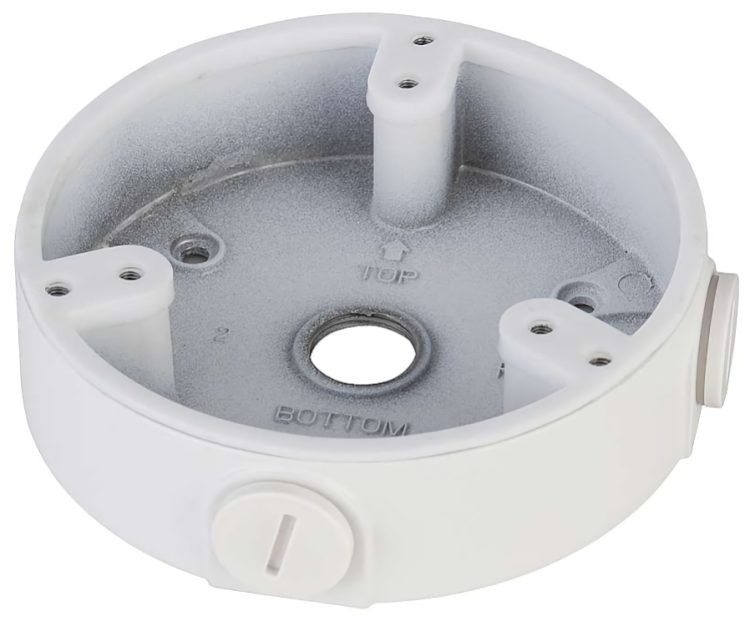

EYEMAX CJB-E137 Junction Box for series E camera support.

  • Made from Aluminum Material
  • Junction Box
  • Neat and Integrated design
  • Polished finished
  •  White Color
Availability: In stockEyemax Logo SKU: CJB-E137 UPC: 745559987937 Categories: , Tags: ,

Compare

Description

This is where Eyemax CJB-E137, a security camera junction box, comes in. The CJB-E137 security camera junction box is where your camera’s cable connections will reside. This provides protection for your camera’s cables from not only the elements, but potential vandalism as well. Continue reading to learn what the advantages are of using security camera junction boxes.
Most people opt for cameras with an IP67 rating when erecting security cameras outdoors. This ensures that the camera can stand up to rain and temperature fluctuations. Although this safeguards the camera’s physical durability, it fails to safeguard its cable connections.

Prevent corrosion and electrical shorts with CJB-E137, while our cameras come with a water-resistant connector. This does not mean they are waterproof. Moisture can still creep in and corrode the Ethernet or coaxial connection and ultimately short out your camera.

When the connections are exposed to the elements and in areas with heavy rainfall, this is especially true. Buying and installing a waterproof junction box will prevent this problem because your connections will be safe inside the box.

Use CJB-E137 to stop theft. If you leave your cables exposed, someone can easily cut them. When the connection stops, the camera won’t record and the criminals can do their work without worrying. They have to take the camera out of the box to reach the cables when they install a metal box.

Another useful feature of junction boxes is the ability to run metal conduit directly into the junction box. This is great when you need to run your cables on the outside of a building. You can pull your cable through a metal conduit and connect the conduit directly to the junction box. This way, none of your cables are exposed, further reducing the possibility of someone cutting your camera’s cable.

Datasheet

Download

Protect your security camera's cables from the elements and vandalism with Eyemax CJB-E137 junction box Datasheet.

Additional information

Weight1 lbs
Dimensions6 × 6 × 3 in
MaterialAluminum
DimensionΦ 4.8031 inches (12.2 cm) × 1.36 inch (3.45 cm)
Inch ThreadM20(G1/2″)
Operating Temperature-40 °F (-40 °C) ~ 140 °F (60 °C)
Humidity0 ~ 90% RH
Load Bearing2.20 lb (1 kg)
Weight0.53 lb (0.24 kg)
ColorWhite
