SBP-900CMW
Original price was: $220.00.$147.95Current price is: $147.95.
Hanwha SBP-900CMW Pendant Mount
- White aluminum ceiling mount
- 900 mm pipe; 958.5 mm overall height
- 1.5-inch female pipe thread
- 3/4-inch conduit access holes
- 20 kg maximum load
- NDAA compliant
- Description
- Product Documents
- Specification
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Hanwha SBP-900CMW pendant mount provides a long ceiling drop for compatible camera mounting systems. Its white aluminum body combines a round ceiling base with a straight pipe. Also, the RAL9003 finish suits matching white accessories. This mount supports planned camera positions below the ceiling while leaving room for the required hanging adapter.

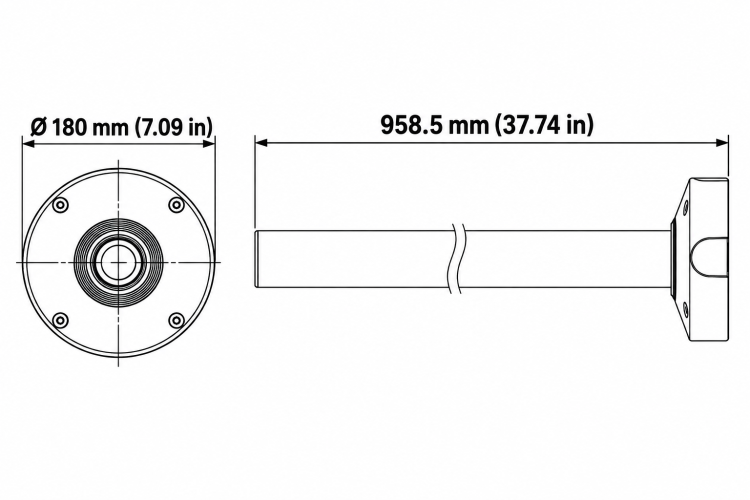

The SBP-900CMW pendant mount has a 900 mm pipe and an overall height of 958.5 mm. Its ceiling base measures 180 mm across. Moreover, the complete mount weighs 2.7 kg before packaging. The female pipe thread measures one and a half inches for connection to supported mounting parts.
Hanwha rates the maximum load at 20 kg. However, installers must consider the combined weight of the camera, adapter and mount when checking the ceiling structure. The installation manual calls for suitable M10 anchor bolts, which are not included. Next, follow the manufacturer’s fixing requirements for the installation surface.
The SBP-900CMW pendant mount includes conduit access holes for cable entry. Hanwha specifies these as 19.1 mm, or three quarters of an inch, with an M25 designation. In addition, the mount screw specification is TR30. Also, plan the cable route and service access before securing the assembly.

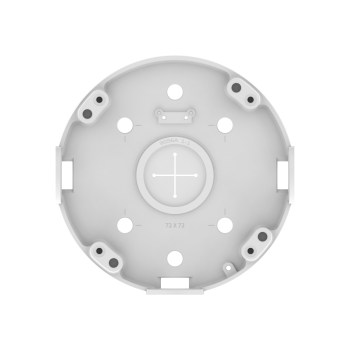

The Specification tab lists the supported hanging adapters, pipe coupler and extension pipes. However, camera fit depends on the chosen adapter and complete mounting combination. Therefore, confirm the exact parts before ordering. The product gallery shows the full mount, ceiling base detail and clear dimensional views for planning.
Finally, compare the SBP-900CMW pendant mount measurements with your available clearance. The official datasheet is attached in Product Documents for convenient download. Moreover, review these details alongside your camera requirements. Contact Collsam Security for help choosing compatible accessories for your installation.
| Manufacturer | Hanwha Vision |
|---|---|
| Model / MPN | SBP-900CMW |
| Product type | Ceiling pendant mount |
| Material | Aluminum |
| Color | White, RAL9003 |
| Pipe length | 900 mm (35.43 in) |
| Overall dimensions | Ø180 × 958.5 mm (Ø7.09 × 37.74 in) |
| Weight | 2,700 g (approximately 5.95 lb) |
| Maximum load | 20 kg (44.09 lb) |
| Pipe thread | 1.5-inch female |
| Mount screw specification | TR30 |
| Conduit access | 19.1 mm (3/4 inch), M25 designation |
| Supported hanging adapters | SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1 |
| Supported coupler and extension pipes | SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP |

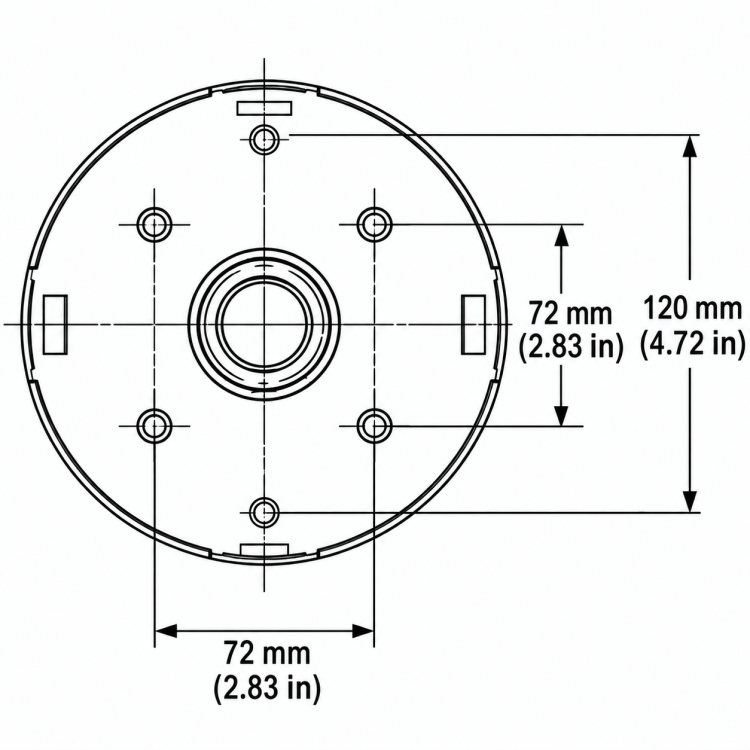

| Mounting plate spacing | 72 × 72 mm square fixing pattern; additional centerline hole spacing 120 mm |
| Installation note | M10 anchor bolts are not included. Verify ceiling support and follow the manufacturer installation instructions. Pipe coupler and extension pipes are optional. |
| Camera compatibility | Depends on the selected hanging adapter and complete mounting combination; do not infer direct fit from thread size alone. |
| Compliance | NDAA compliant |
| GTIN | 8801089220530 |
