ST16000VE002
Original price was: $1,333.99.$687.95Current price is: $687.95.Ea

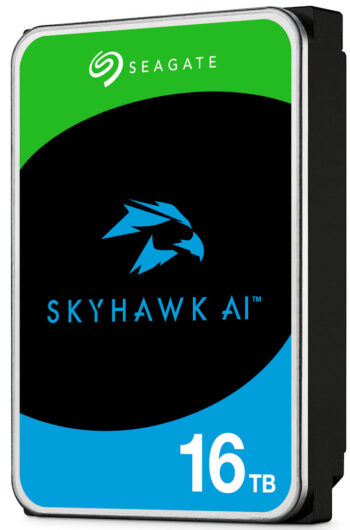

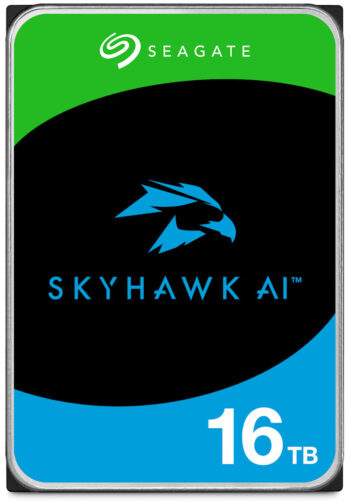

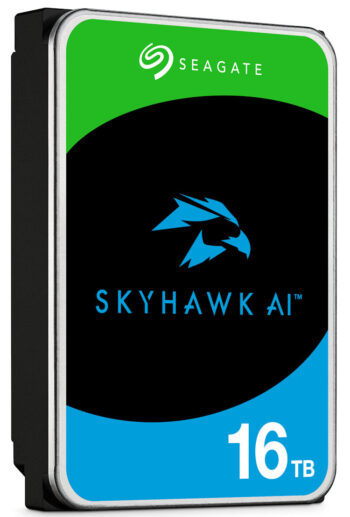

Title: Seagate SkyHawk AI ST16000VE002 16TB Surveillance Hard Drive
- 16TB capacity for AI-enabled surveillance storage
- SATA 6Gb/s interface with CMR recording technology
- Helium-sealed design with 256MB cache
- Supports up to 64 HD cameras and 32 AI streams
- Designed for 24/7 DVR, NVR, and video-surveillance systems
- Supports 16+ drive bays with rotational-vibration sensors
- Includes ImagePerfect AI firmware and a 5-year limited warranty
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
This high-capacity surveillance hard drive, the Seagate SkyHawk ST16000VE002, was created especially for use in surveillance settings around the clock. It offers a massive storage capacity of 16 TB. This hard drive is perfect for storing large amounts of high-resolution footage from multiple cameras. Whether for commercial or personal use, the SkyHawk ST16000VE002 is the ideal solution for those who require frequent and reliable access to their surveillance footage.
Featuring a 7200 RPM rotational speed and a 256 MB cache, the SkyHawk ST16000VE002 is capable of handling heavy workloads and ensuring smooth playback of footage. It utilizes a SATA 6Gb/s interface. This allows for fast data transfer speeds and seamless integration into existing systems. The Conventional Magnetic Recording (CMR) technology comes pre-installed on the 3.5-inch internal drive. As a result, it ensures reliable and consistent recording of footage.
One of the outstanding features of the SkyHawk ST16000VE002 is its ImagePerfect™ AI Firmware. This specific firmware can simultaneously support up to 64 HD cameras and 32 AI streams. Therefore, it is ideal for surveillance systems that utilize AI video analytics. With this firmware, users can expect zero dropped frames. This ensures that their video does not lose any pivotal moments.
Built to withstand the rigorous 24/7 workload of surveillance environments, the SkyHawk ST16000VE002 has a Mean Time Between Failures (MTBF) of 2 million hours and a Workload Rate Limit (WRL) of 550 TB annually. The drive’s condition is continuously checked. Moreover, there is a focus on prevention, intervention, and recovery options to ensure the safety and security of your footage.
Additionally, it often comes with a 3-year Rescue Data Recovery Service plan. Users can relax knowing that their data is protected from potential loss.
| Capacity | 16TB |
| Interface | SATA 6 Gb / s |
| Recording Technology | CMR |
| Drive Design | Helium |
| Features and Performance | |
|---|---|
| Drive Bays Supported | 16+ |
| AI Channels | 32 |
| AI Real-Time Capture Events / Sec1,2 | Up to 120 |
| AI Real-Time Compare Events / Sec1,2 | Up to 96 |
| HD Cameras Supported3 | Up to 64 |
| RV Sensors | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 250MB / s |
| Cache (MB) | 256 |
| Reliability / Data Integrity | |
| Tarnish Resistant | Yes |
| Load / Unload Cycles | 300000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL)4 | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2,000,000 hr |
| Warranty, Limited (years)5 | 3 |
| Rescue Data Recovery Services (years)6 | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 6.71 W |
| Idling Average (W) | 5.1 W |
| Standby Mode / Sleep Mode, Typical (W) | 1.05 / 1.05 |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Environmental / Temperature | |
| Operating (ambient, min °C) | 5 |
| Operating (drive case, max °C)7 | 70 |
| Non-operating (ambient, min °C) | −40 |
| Physical | |
| Height (mm/in, max) | 1.028 inches (2.61 cm) |
| Width (mm/in, max) | 4.01 inches (10.19 cm) |
| Depth (mm/in, max) | 5.787 inches (14.7 cm) |
| Weight (g/lb, typical) | 1.477 lb (669.96 g) |
1 Events can be human, vehicle, or object capture.
2 Tested and verified using embedded AI NVR – 64-ch HD recording, 16-ch PB. Average picture size ~250 KB
3 1080P, H.265, 25 fps
4 SkyHawk AI surveillance drives are designed for always-on workloads of 550 TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
5 Extended warranty options available. Consult your distributor for details.
6 From May 1, 2020, a 3-year Rescue Data Recovery Services plan may be offered in addition to the standard warranty. This is offered for selected regions only. Check with the reseller on availability.
7 Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce the useful life of the product.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
Brand
Seagate
Seagate SkyHawk Video Storage
Seagate SkyHawk hard drives provide dedicated storage for compatible video-surveillance systems. They are engineered for continuous recording workloads commonly found in DVRs, NVRs, and network video security installations.Unlike standard desktop drives, surveillance hard drives are designed to manage multiple video streams and extended recording periods. This makes them suitable for security systems that continuously capture and retain footage.Storage for DVR and NVR Systems
SkyHawk surveillance hard drives can be installed in compatible digital video recorders and network video recorders. Available capacities allow installers to select storage based on the number of cameras, recording resolution, frame rate, compression settings, and required retention time.A higher-capacity drive can retain more recorded footage before the recorder begins overwriting older video. Actual retention depends on the complete system configuration and recording schedule.Continuous Video Recording
Security recorders may operate around the clock, creating storage demands that differ from ordinary computer use. SkyHawk drives are optimized for continuous surveillance recording and the sustained handling of video data.Supported workloads and features vary by drive model. Always confirm the recorder’s maximum supported capacity, drive-bay requirements, interface, firmware compatibility, and recommended hard-drive list before installation.Choosing a SkyHawk Drive
Consider the following factors when selecting a drive:- DVR or NVR compatibility
- Required storage capacity
- Number of connected cameras
- Camera recording resolution
- Continuous or motion-based recording
- Desired footage-retention period
- Available drive bays
- Supported SATA interface and form factor
