A1101
Price range: $595.95 through $687.95
DoorBird A1101 IP Video Indoor Station for Door Communication
- Designed for single-family residences and apartment buildings
- Connectivity includes Wi-Fi, Ethernet, and Power over Ethernet
- Features SIP and PBX support
- Door opener and elevator control
- 4” True Color Touch Display
- Support for multiple DoorBird IP Video Door Stations
- Conveniently monitor and communicate with people at the door
- Easily check visitors without leaving the premises
- Control access to your home or business
- High-quality audio and video for better communication
- Ability to control multiple door stations for larger areas
- Enhanced security with two-way communication
- Easy installation and setup
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
Talk to family, friends, and guests inside and outside your home safely with the DoorBird A1101 IP Video Indoor Station. In both single-family homes and apartment buildings, it can connect to IP video and audio doors. With its Wi-Fi, Ethernet, and PoE SIP and PBX support, this station allows for fast and secure access control.
The 4″ touch screen on the DoorBird A1101 IP Video Indoor Station lets people talk, watch, and control their door. Integrated with numerous DoorBird IP video door stations, this station facilitates effortless access control. It is also possible to access door openers and elevator control via the station.
The DoorBird A1101 IP Video Indoor Station comes with numerous useful features that make it easy to use. There are motion detectors and a camera in the station so that people can check the door before they open it.
The station also features two-way audio, allowing for real-time conversations from inside and outside the home. You can watch and control the lights, gates, and other parts of the door access system from the station.
When designing the DoorBird A1101 IP Video Indoor Station, security was the primary factor. It has high-tech encryption built in that helps keep the conversation between the user and the station safe. For local video storage, the station also has an SD card slot with secure hardware encryption. The station also features an FTPS server for secure access to stored data.
Linking the DoorBird A1101 IP Video Indoor Station to other smart home systems will make your entire house smarter. The station can be easily integrated with existing doorbell, alarm, and other home monitoring systems. The station can also be integrated with existing video doorbells for enhanced security. The advanced features of this station make it the best choice for safe door-to-door communication in single-family homes and apartment buildings.
| General | |
|---|---|

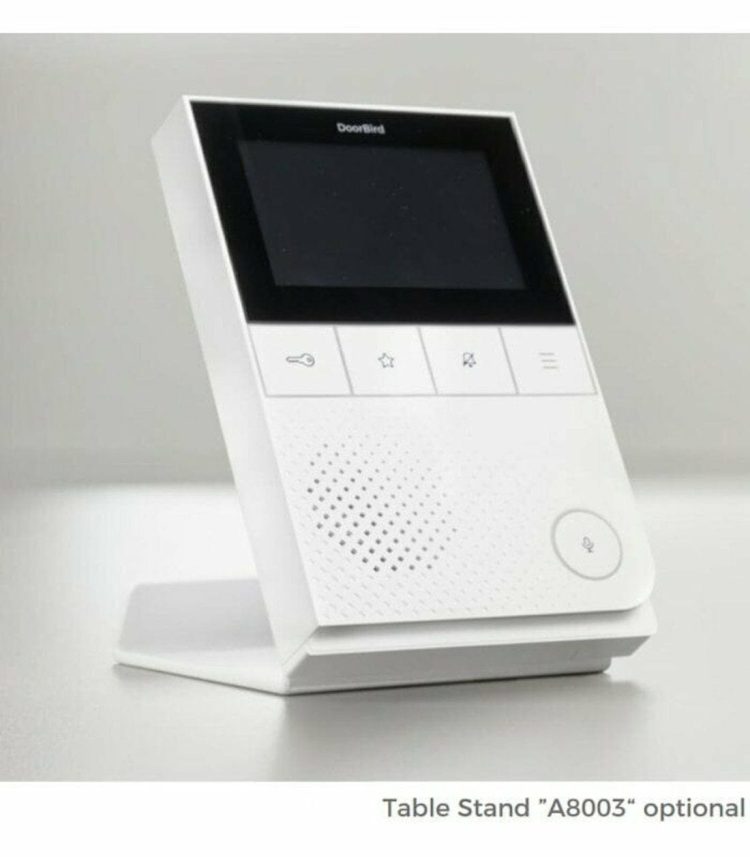

| Mounting type | Surface-mounted table stand “A8003” sold separately |
| Power supply | 15–48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 336 g |
| Connectors | LAN/PoE (T+, T-, R+, R-) Digital input (0 V, 0 A (NO)) #1, e.g., for a story-call button Digital input (0 V, 0 A (NO)) #2, e.g., for second storey-call button Bi-stable latching relay #1, max. 24 V DC/AC, 1 ampere, e.g., for electric door opener or elevator Bi-stable latching relay #2, max. 24 V DC/AC, 1 Ampere, e.g., for electric door opener or elevator Bi-stable latching relay #3, max. 24 V DC/AC, 1 Ampere, e.g., for electric door opener or elevator 15–48 V DC input (+, -), max. 15 W |
| Power consumptions | 5 W |
| Approvals | CE, FCC, IC, RoHS, IP50 |

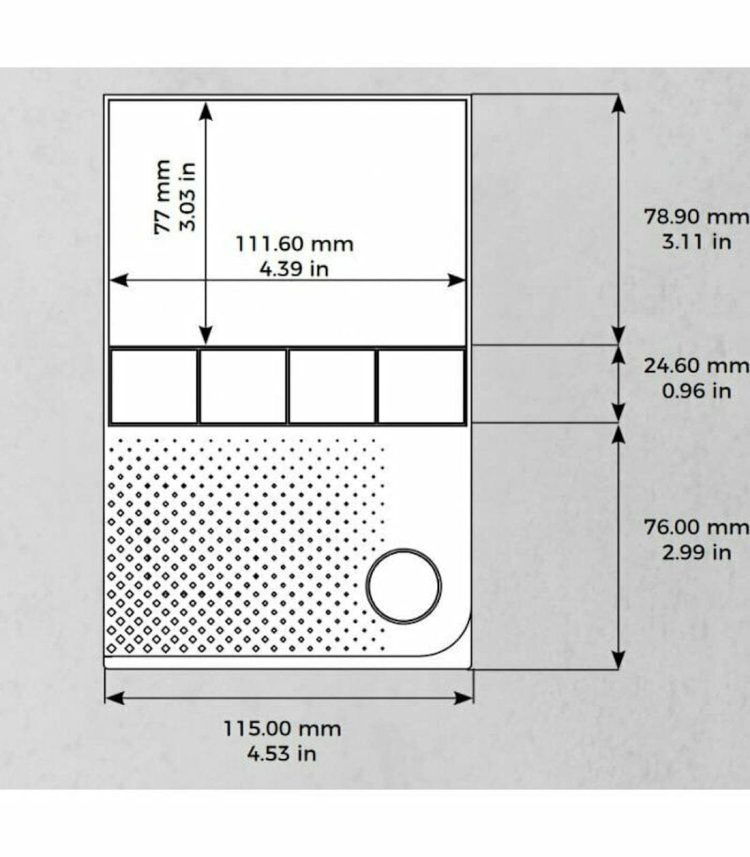

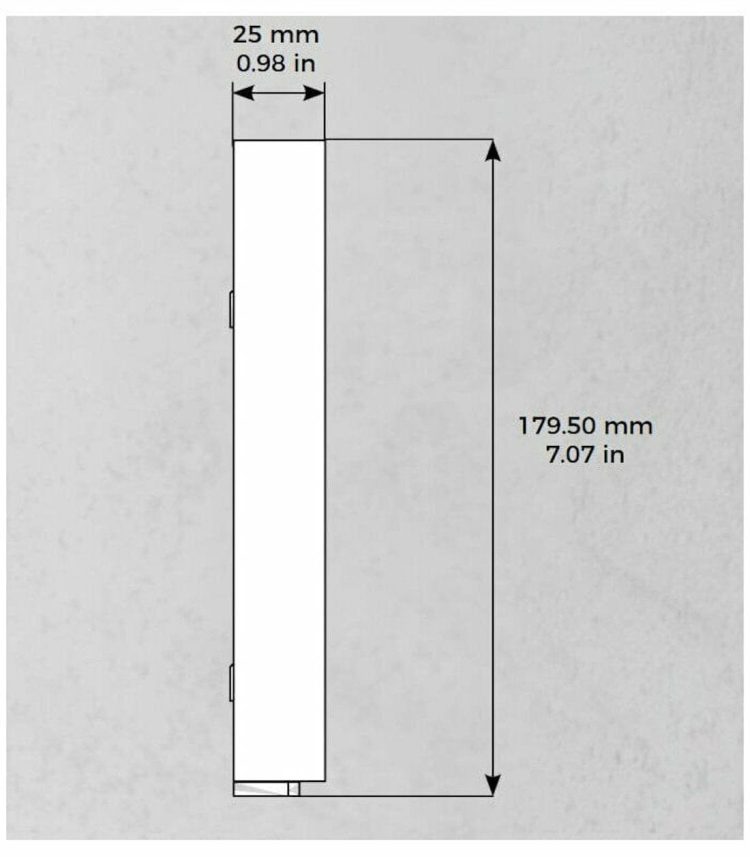

| Dimensions (H × W × D) | 7.07 inches (17.96 cm) × 4.53 inches (11.51 cm) × 0.98 inches (2.49 cm) |
| Operating conditions | 32°F (0°C) to 131 °F (55 °C) Humidity 0% to 85% (non-condensing) |
| Scope of delivery | 1 x IP Video Indoor Station 1 x Mounting bracket 1 x power supply unit (main adaptor) with four country-specific adaptors (110–240 V AC to 15 V DC) 1x Quick-start guide with Digital Passport 1 x Installation manual 1 x Small parts |
| EAN | 4260423860902 |
| Current System Requirements | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, the newest Android on Smartphone/Tablet Internet: High-speed landline broadband Internet connection, DSL, cable, or fiber optic; no socks or proxy server Network: Ethernet Network, with DHCP |
| Supported door stations | Any DoorBird IP Video Door Station |
| DISPLAY | |
| Dimensions | 4 inches (10.16 cm) True Color LCD |
| Touch | Yes, capacitive |
| Resolution | 800 × 480 px |
| IPS | Yes |
| Audio | |
| Audio components | Speaker and microphone, echo and noise cancellation (AEC, ANR) |
| Audio streaming | Two-way |
| Network | |
| Ethernet | PoE 802.3af Mode-A |
| Wi-Fi | 802.11 b/g/n 2.4 GHz |
| INTEGRATED WIRELESS MODULES | |
| Wi-Fi | 802.11 b/g/n 2.4 GHz |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
| Color | Black, White |
