TRADAR-500F

EXACQVISION TRADAR-500F 360 Bundle of Radar System, Cable, all Bracket, Mass Base License Perimeter Surveillance 500M RANGE, 5.8GHZ Sensor, 1.2m Resolution

TRADAR-500F

Original price was: $15,400.00.Current price is: $12,812.95.

In stock

Original price was: $15,400.00.Current price is: $12,812.95.

The EXACQVISION TRADAR-500F 360 bundle comprises of the Radar System, Cable, All Bracket, Mass Base License, Perimeter Surveillance 500M RANGE, 5.8GHZ Sensor, and 1.2m Resolution.

  • 360 Bundle of Radar System
  • Cable and all Bracket all included
  • Mass Base License Perimeter Surveillance 500M RANGE
  • 5.8GHZ Sensor, 1.2m Resolution
  • Auto PTZ slew-to-cue
  • Low false alarm rate
  • Power efficiency at less than 4w
  • Easy installation with less hardware and more overall site coverage
  • All weather and lighting conditions
  • Onboard signaling and processing
  • Simple multi-sensor integration
  • FCC, UL listed
  • NDAA TAA Complaint
Exacq video management and surveillance solutions at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The TRADAR-500F perimeter surveillance radar 360 Bundle of Radar System, Cable, all Bracket, Mass Base License Perimeter Surveillance 500M RANGE, 5.8GHZ Sensor, 1.2m Resolution

is excellent and can see things well. This system can detect moving objects in all weather conditions, including rain and fog, all day and night. It works well at airports, factories, military bases, and places where people live or work.

One of the key features of the TRADAR-500F is its range and target behavior analysis algorithms. These programs check different kinds of websites. Users can trust the system because it is very accurate and has a low chance of false alarms.

The TRADAR-500F is not only a powerful radar system, but it also seamlessly integrates with exacqVision VMS software. This shows users a complete and exact picture of the area being watched. The addition of video analytics makes it a truly versatile and adaptable solution.

In today’s world, cybersecurity is a top priority for any surveillance system. That’s why EXACQVISION has designed the TRADAR-500F to be resilient against cyber-threats. The Tyco products in the TRADAR-500F are expected to meet or exceed Johnson Controls Cyber Solutions Product Security Program requirements. This provides peace of mind to customers, knowing that their system is secure and protected from cyber-attacks.

Overall, the TRADAR-500F perimeter surveillance radar system is a top-of-the-line solution that offers outstanding performance and reliability. It uses advanced radar technology to look at things far away and how they move. It also works well with exacqVision VMS software to keep an eye on areas around buildings. And with its strong focus on cybersecurity, customers can trust that their security is in safe hands with the TRADAR-500F .

Datasheet

Download

EXACQVISION TRADAR-500F 360 Bundle of Radar System, Cable, all Bracket, Mass Base License Perimeter Surveillance 500M RANGE, 5.8GHZ Sensor, 1.2m Resolution Datasheet

Brochure

Download

EXACQVISION TRADAR-500F 360 Bundle of Radar System, Cable, all Bracket, Mass Base License Perimeter Surveillance 500M RANGE, 5.8GHZ Sensor, 1.2m Resolution Brochure

Additional information

Weight4 lbs
Dimensions12 × 7 × 5 in

Brand

Exacq

Exacq provides professional video surveillance and management solutions for businesses, enterprises, schools, healthcare facilities, retail environments, and other security applications. Its portfolio includes video management software, network video recorders, video storage solutions, and enterprise video surveillance technology.Video management software provides centralized tools for viewing, recording, searching, and managing surveillance video. Network video recorders combine recording hardware with exacqVision software for professional IP camera installations.Video storage solutions support applications that require reliable access to recorded surveillance footage. Enterprise video surveillance technology can support larger installations with multiple cameras, recorders, users, and locations. Exacq solutions are available from Collsam Security for professional security applications.
Exacq video management and surveillance solutions at Collsam Security

Exacq Video Surveillance Solutions

Exacq develops scalable video surveillance technology for security environments ranging from individual locations to large enterprise installations. The exacqVision platform combines video recording, management, storage, remote viewing, and system integration within a flexible surveillance environment.

exacqVision Video Management System

exacqVision provides a centralized platform for managing live and recorded surveillance video. Available software options support different system sizes, operational requirements, and security applications.The platform gives security professionals tools for viewing cameras, searching recorded video, managing events, and administering surveillance systems. In addition, scalable deployment options allow organizations to expand their systems as requirements change.

exacqVision Network Video Recorders

Exacq offers several recorder families for different surveillance requirements. Current options include X-Series, A-Series, Q-Series, and G-Series network video recorders.Available configurations support installations ranging from smaller surveillance systems to demanding enterprise environments. Therefore, system designers can select recording hardware according to camera count, storage capacity, performance, and scalability requirements.

Video Storage Solutions

Large surveillance installations can require substantial storage capacity and reliable access to recorded video. Exacq provides storage technologies designed to expand recording capacity and support longer video retention periods.Furthermore, centralized storage can help organizations manage recorded surveillance footage across larger security environments.

Enterprise Video Surveillance

Enterprise environments often require centralized administration across multiple surveillance servers and locations. Exacq provides technologies designed to simplify the management of larger video security deployments.These scalable solutions can support organizations with numerous cameras, users, recording servers, and geographically distributed locations.

Integrated Access Control

Video surveillance can also work with compatible access control technologies. Integration allows security personnel to associate video with access events and improve situational awareness around controlled entrances.As a result, operators can investigate security events using both surveillance video and relevant access information.

Remote Video Monitoring

Compatible systems can provide remote access to live and recorded surveillance video from computers, web browsers, and mobile devices. This flexibility allows authorized users to monitor security operations while away from the primary workstation.Remote capabilities can also help security teams respond more efficiently when monitoring multiple locations.

Exacq Solutions at Collsam Security

Collsam Security offers Exacq solutions for professional video surveillance applications. Customers can select video management, recording, storage, monitoring, and related technologies according to their security requirements.

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.
NDAA-compliant security products at Collsam Security
NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

Sensor typeHigh resolution MIMO digital beam-forming radar
FrequencyC-Band
Detection rangeUp to 100m Drone


400m Human


600m Vehicle/Boat

No moving partsMTBF of 50,000 hours
Built-in trackerExtremely low required bandwidth (<1kbps)
Scan rate2 scans per second
Azimuth coverage120°
Elevation coverage30°
High Range accuracy<1.0m
Azimuth accuracy
Target detection speed0.3 – 30m/sec
Power48v, 3.5W
System interfaceEthernet, POE – IEEE 802.3at Type 1 (802.3af) and Type 2

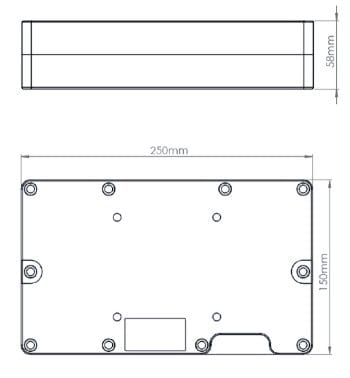

Dimensions (W × H × D)9.8 inches (24.89 cm) x 5.8 inch (14.73 cm) x 2.3 inch (5.84 cm)
Weight3.3 lb (1.5 kg)
EnvironmentalFull outdoor functionality, IP67, FCC & CE Compliant
ApprovalsFCC, UL
Operating temperature-49 °F (-45 °C) to 185 °F (85 °C)
