AVST-AT1004
Original price was: $129.95.$57.60Current price is: $57.60.

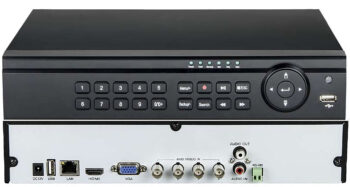

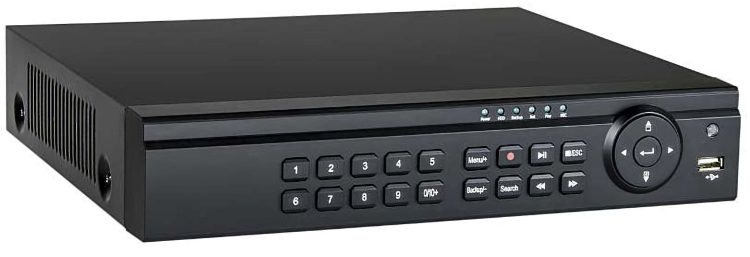

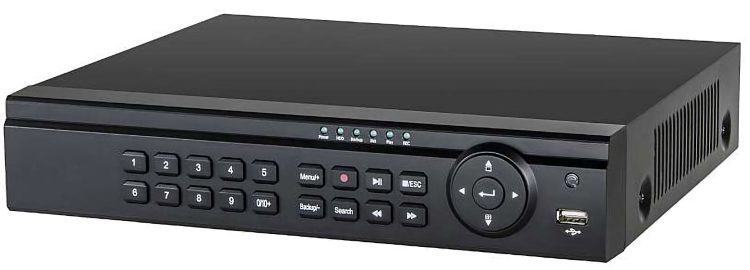

Eyemax AVST-At1004 4 Channel At Series 720p A-HD Standalone DVR System
- 4 CH A-HD Video-Input, 720P / 960H / D1 Real-Time Recording
- Adopt the standard H.264 high-profile compression format to get high-quality video at a much lower rate
- Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback: 4 CH simultaneous playback
- Search: time / calendar, events (motion)
- Express and flexible backup via USB, network
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse, and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ, and configuration
- Dual stream technology to encode the recording stream and network stream respectively.
- Users can adjust the network stream to fit bandwidth without changing recording quality.
- Multi-user online simultaneously
- Authorization management, log review, and device status review
- HDMI 1080P output, true high-resolution display
- Support PTZ preset and auto-cruise, up to 128 presets and 8 cruises
- Powerful smartphone surveillance supporting iPhone, Android
- Support NAT function, support QR code scanning by mobile phone
- Complete SDK software available, easy to integrate with other applications
SKU: AA
Categories: Analog Coaxial, Analog Coaxial Cameras
Tags: 4 Channel DVR, AHD DVR, H.264, H.264 High Profile, HDMI 1080P output, Home Security, Security Cameras- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Eyemax AVST-AT1004 is a top-of-the-line 4-channel AHD standalone Digital Video Recorder (DVR) that is perfect for all your security needs. With its sleek and modern design, this DVR can easily blend in with any home or office setting. It is important for people, financial institutions, commercial establishments, enterprises, transportation, and government agencies to improve their security measures.
This Eyemax AVST-AT1004 DVR offers excellent video quality with its 4 channels of AHD/Analog/960H video input. It boasts a real-time recording resolution of 720P on all channels, allowing you to monitor your property in high definition. The standard H.264 high-profile compression format ensures efficient storage of your footage without compromising on quality.
One of the standout features of the Eyemax AVST-AT1004 is its Pentaplex operation, which allows you to perform multiple tasks simultaneously. You can easily preview, record, playback, back up, and remotely access the DVR, all at the same time. This feature is perfect for busy environments where several tasks need to be carried out simultaneously.
The DVR also offers convenient remote viewing options with its iPhone and Android apps. With these apps, you can easily access the footage from your DVR from anywhere at any time. This is a great feature for people who want peace of mind about the security of their property.
The Eyemax AVST-AT1004’s user-friendly GUI makes it easy for users of all technical levels to use and operate the DVR. Dual-stream technology allows for efficient streaming of videos, and with multi-user access, multiple users can access the DVR simultaneously. It also supports PTZ control, enabling you to control the movement of your cameras remotely.
This DVR also comes equipped with motion detection, ensuring that you are notified of any suspicious activity in real-time. It also offers flexible backup options via USB and network, making it easy to access your footage when needed. With its various network protocols, including DHCP, DDNS, and PPPoE, the Eyemax AVST-AT1004 offers seamless connectivity options.
| System | Compression | Standard H.264 High Profile |
| OS | Embedded Linux | |
| CPU | Cortex A9 | |

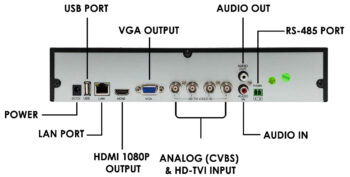

| Video | Input | BNC × 4 Chanel Support 720P@30fps,960H,D1 input |
| Output | VGA × 1 Channel: 1080P (1920 × 1080) HDMI × 1 Channel: 1080P (1920 × 1080) | |
| Audio | Input | RCA × 1Chanel |
| Output | RCA × 1Chanel | |
| 2-way Audio | Take up 1 Chanel audio input | |
| Record | Resolution | 720P (1280 × 720), 960H,D1 |
| Frame Rate | 120fps@720P/960H | |
| Bit Rate | 256Kbps ~ 4 Mbps | |
| Encode | VBR / CBR | |
| Quality | 6 levels | |
| Mode | Manual, Timer, Motion | |
| File Management | Lock, Unlock, Reserving Time | |
| Playback | Playback | 4 Chanel |
| SearChanel Smart SearChanel | Time/calendar sear Chanel, event (motion) highlighted date and time to display the channel record. | |
| Function | Play, Pause, FF, FB, Digital zoom | |
| Alarm | Mode | Motion, Video Loss |
| Input | No | |
| Output | No | |
| Triggering | Record, PTZ move, E-mail, etc | |
| Network | Interface | RJ45 |
| Protocol | TCP/IP.UDP, DHCP.DNS, PPoE, DDNS | |
| User | 10 users online, dual stream | |
| Cellphone | OS | iPhone, Android |
| Function | Multiscreen surveillance (for certain models), record, snapshot, PTZ control, save the device list | |
| I/O | HDD | SATA × 1 |
| RS485 | RS485 × 1 (for PTZ or Keyboard) | |
| USB | USB 2.0 × 2 (for mouse and USB backup device) | |
| IR controller | Optional | |
| Others | Dimension W × L × H | 10.0394 inches (25.5 cm) x 8.2677 inches (21 cm) x 1.6535 inches (4.2 cm) |
| Power Supply | DC 12V | |
| Working Environment | 10% ~ 90% (Humidity),14 °F (-10°C) ~ 122°F (50°C) |
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 18 × 12 × 6 in |
Brand
Eyemax
