UIR-2362V-B
Original price was: $438.99.$262.95Current price is: $262.95.
Eyemax UIR-2362V-B Camera
- 2MP EX-SDI and HD-SDI outdoor bullet camera
- 12 COB IR LEDs with up to 50 m range
- 6-50mm auto-iris varifocal lens
- IP68 housing with true day and night operation
- NDAA compliant and made in Korea
- Currently out of stock
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description

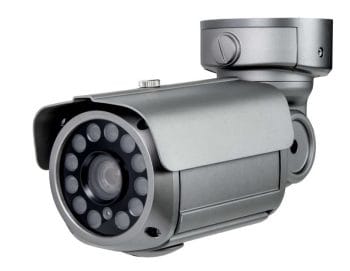

The Eyemax UIR-2362V-B is a 2MP COB IR bullet camera for HD coaxial security systems. This UIR-2362V-B EX-SDI camera also works as an HD-SDI outdoor security camera. The 6-50mm varifocal bullet camera helps installers match the view to compatible recorders and coaxial cable runs at each site.
The UIR-2362V-B EX-SDI camera uses a 1/2.9-inch Sony CMOS sensor. It also includes digital noise reduction, automatic white balance, SENS-UP, backlight control, and smart IR adjustment. Therefore, these controls help maintain useful detail when lighting conditions change.
For nighttime coverage, the 2MP COB IR bullet camera uses 12 COB infrared LEDs. The infrared system supports viewing distances up to 50 meters under suitable conditions. In addition, the mechanical ICR filter switches between day and night modes for accurate daytime color and improved low-light performance.
The UIR-2362V-B 6-50mm varifocal bullet camera provides a flexible field of view. Installers can use the auto-iris lens to frame wide areas or focus on more distant points. As a result, the camera works well for entrances, parking areas, building perimeters, and other outdoor locations.
The HD-SDI outdoor security camera has an IP68-rated enclosure for weather resistance. Furthermore, it supports 12 VDC power, and its coaxial output works with compatible baluns. Moreover, EX-SDI can extend transmission distance when the cable, recorder, and installation conditions support it.

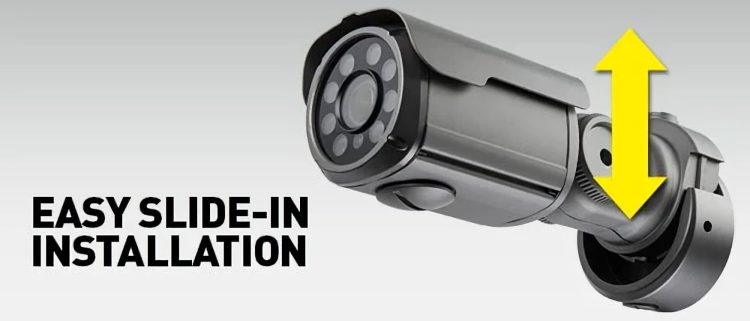

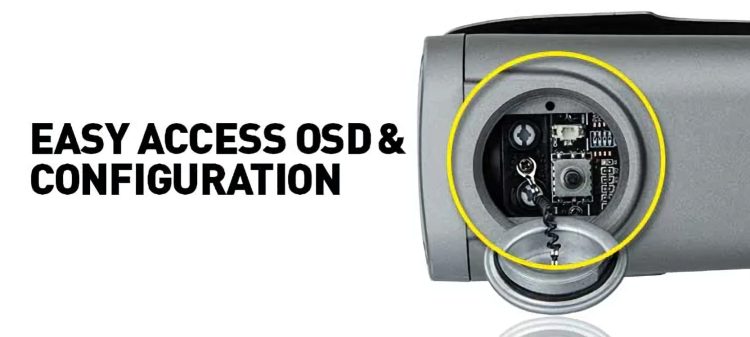

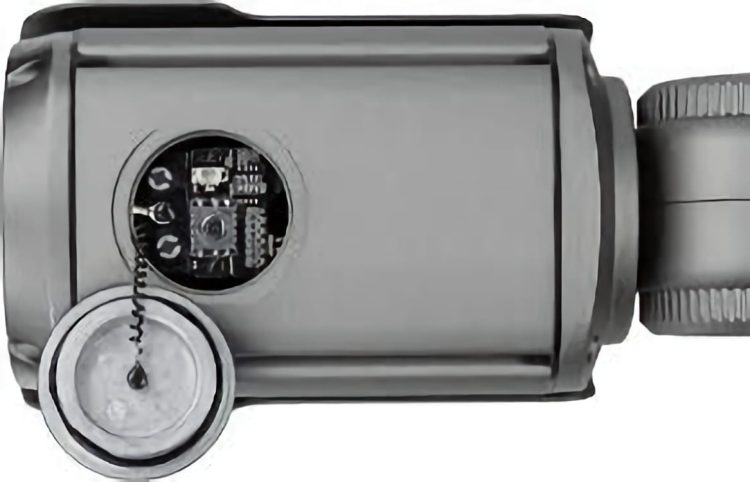

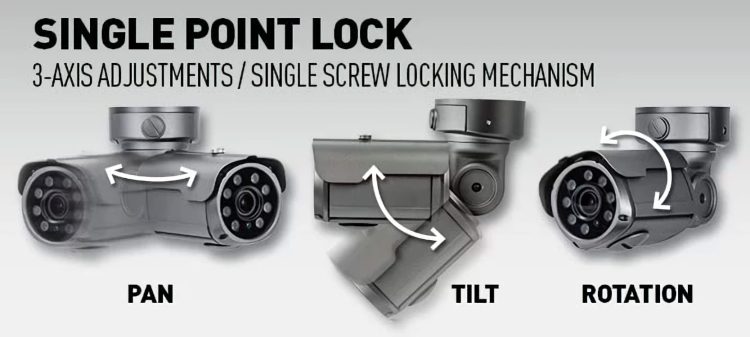

The Eyemax UIR-2362V-B is made in Korea and is listed as NDAA compliant. Its metal bullet housing, adjustable mounting base, and on-screen controls simplify installation and setup. Choose this camera when a site needs 1080p video, long-range infrared illumination, and a versatile zoom lens in one outdoor unit.
Before ordering, confirm recorder compatibility, required transmission distance, power supply, and lens coverage. This model is currently out of stock.
| Resolution | 1080P, 720P, 720P CROP |
| Sensor | 1/2.9-inch SONY CMOS (IMX-222 / IM × 322) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| ACE | OFF / LOW / MIDDLE / HIGH |
| Day & Night | AUTO (Day <–> Night TIME Change), COLOR, Black White, EXTERN, |
| Privacy | OFF / ON |
| Motion | OFF / SET |
| D.ZOOM | x1.0 ~ × 16.0 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature / Humidity | 14°F (-10 °C) ~ 122°F (50°C) / 30% ~ 80% RH |
| Storage Temperature / Humidity | -4 °F (-20 °C) ~ 140°F (60°C)/ 20% ~ 90% RH |
| Power | 24VAC 12VDC Dual Power (option) |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 18 × 8 × 8 in |
