BU-6001
Original price was: $18.99.$12.95Current price is: $12.95.

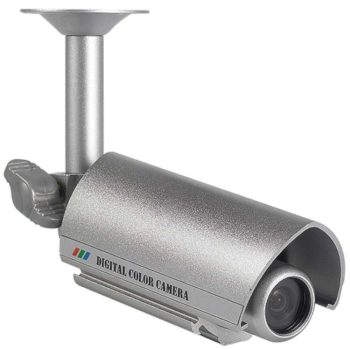

Telpix BU-6001 CCTV Bullet Camera with Sony Super HAD II CCD Sensor
- 1/3” Sony Super HAD CCD II
- Lens 4.3mm Fixed Lens
- High Resolution (620TVL)
- 0.1Lux at F1.2(Color) / 0.01Lux(Black and White)
- Easy Installation
- Day and Night Function
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
Introducing the Telpix BU-6001 CCTV bullet camera: the perfect surveillance solution for your home or business. The Sony Super HAD II CCD sensor makes clear images and videos with a resolution of 620 TV lines. With its high-quality and reliable performance, you can trust this camera to keep your property safe and protected.
The Telpix BU-6001 has a 4.3mm fixed lens, so no detail is missed in its field of vision. Whether you’re monitoring a large area or focusing on a specific spot, this camera has you covered. This camera will give clear and detailed images even in low light conditions.
One of the standout features of the Telpix BU-6001 is its Day/Night function. This camera can automatically switch between color and black-and-white mode, so you always have the best quality footage. This camera does all the work for you and gives you seamless surveillance day or night.
The Telpix BU-6001 offers excellent image quality and a CVBS video output of 1.0Vp-p / 75ohm. This camera has a 2:1 interlace scanning system, which is great for monitoring high-traffic areas like entrances and parking lots.
In addition to its impressive features, the Telpix BU-6001 is also built to last. With a more than 50dB (AGC off) TVL ratio, this camera exceeds industry standards for durability and performance. This means that you can count on this camera to provide reliable and high-quality surveillance for years to come.
Use the Telpix BU-6001 CCTV bullet camera for your surveillance needs.
| Resolution | 620 TV Line |
| Sensor | 1/3” SONY Super HAD II CCD |
| Total Pixels | 811(H) × 508(V) 410K pixels |
| Effective Pixels | 768(H) × 494(V) 380K pixels |
| Scanning System | 2:1 Interlace |
| S/N (Y signal) | More than 50dB (AGC off) |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0.1 Lux at F1.2 (Color) / 0.01 Lux(B/W) |
| White Balance | ATW |
| Electronic Shutter Speed | Auto (1/60 sec ~ 1/100,000 sec) |
| AGC (Auto Gain Control) | ON |
| Day & Night | Auto |
| Operation Temperature / Humidity | 14°F (-10°C) ~ 122°F (50°C) / 30% ~ 80% RH |
| Storage Temperature / Humidity | -4 °F (-20°C) ~ 140°F (60°C) / 20% ~ 90% RH |
| Power | DC 12V |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 4 × 4 in |
