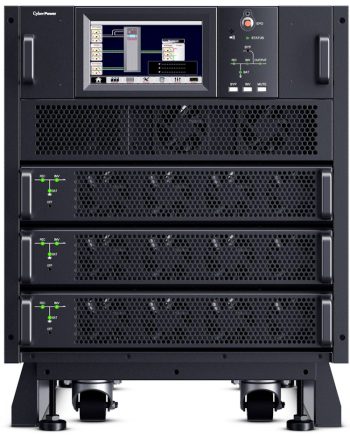

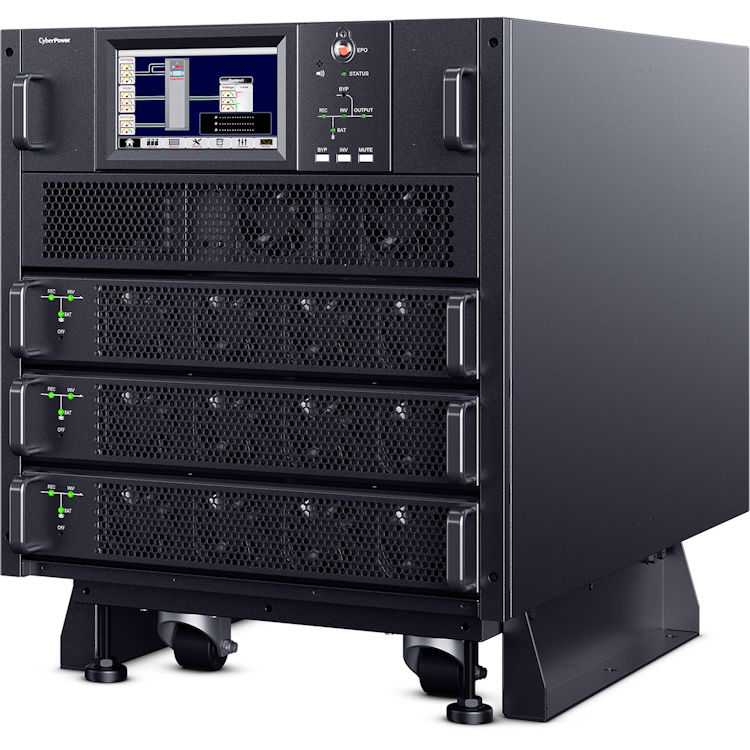

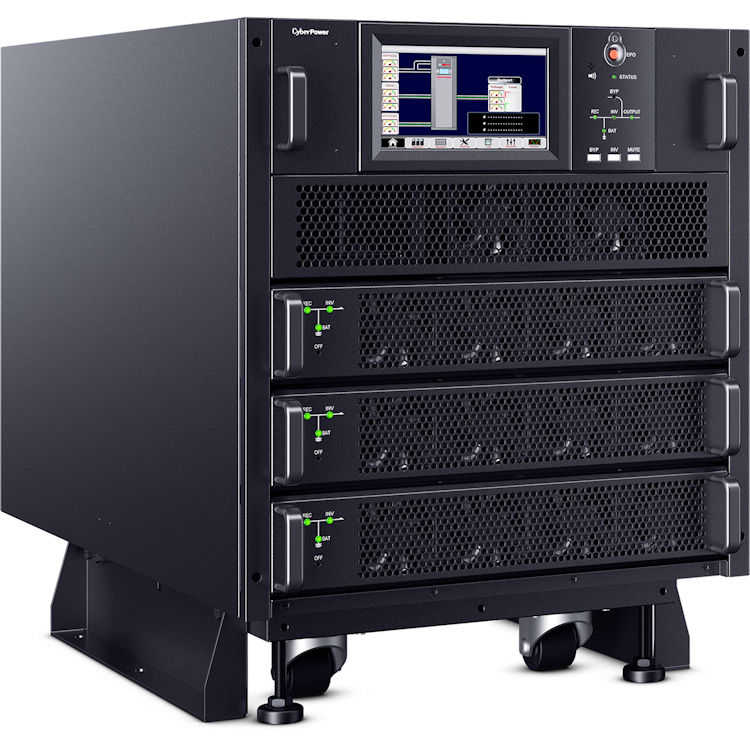

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System
- Capacity: 10-20 kVA / 10-20 kW
- Power Factor (PF): 1.0
- Waveform: Sine Wave
- Communication Ports: USB, Serial, Modbus, SNMP, EPO
- Energy Saving: ECO Mode Efficiency >97.5%
- Redundancy: (N+X)
- Topology: Double-Conversion
- Output: 208/120V or 220/127V VAC Configurable
- Management Software: PowerPanel® Business
- Warranty: 1 year
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS is built for environments where uptime is non-negotiable. It is designed for data centers, corporate server rooms, and advanced educational labs. Moreover, it delivers scalable, high-density power protection in a flexible modular format. With a capacity range of 10 to 20 kVA / 10 to 20 kW and a unified 1.0 power factor, it provides dependable performance for demanding mission-critical applications.
This double-conversion online UPS ensures true power continuity with 0 ns transfer time. It helps protect sensitive equipment from outages, surges, and electrical disturbances.

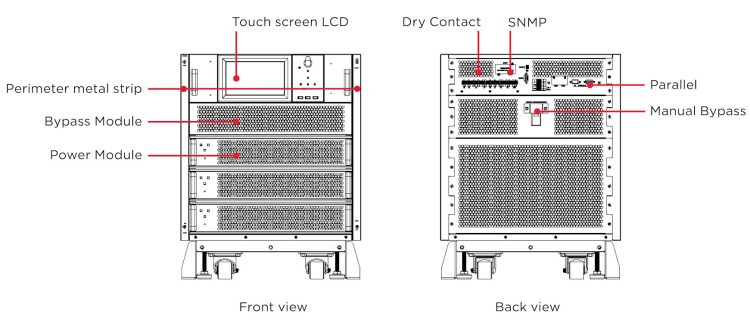

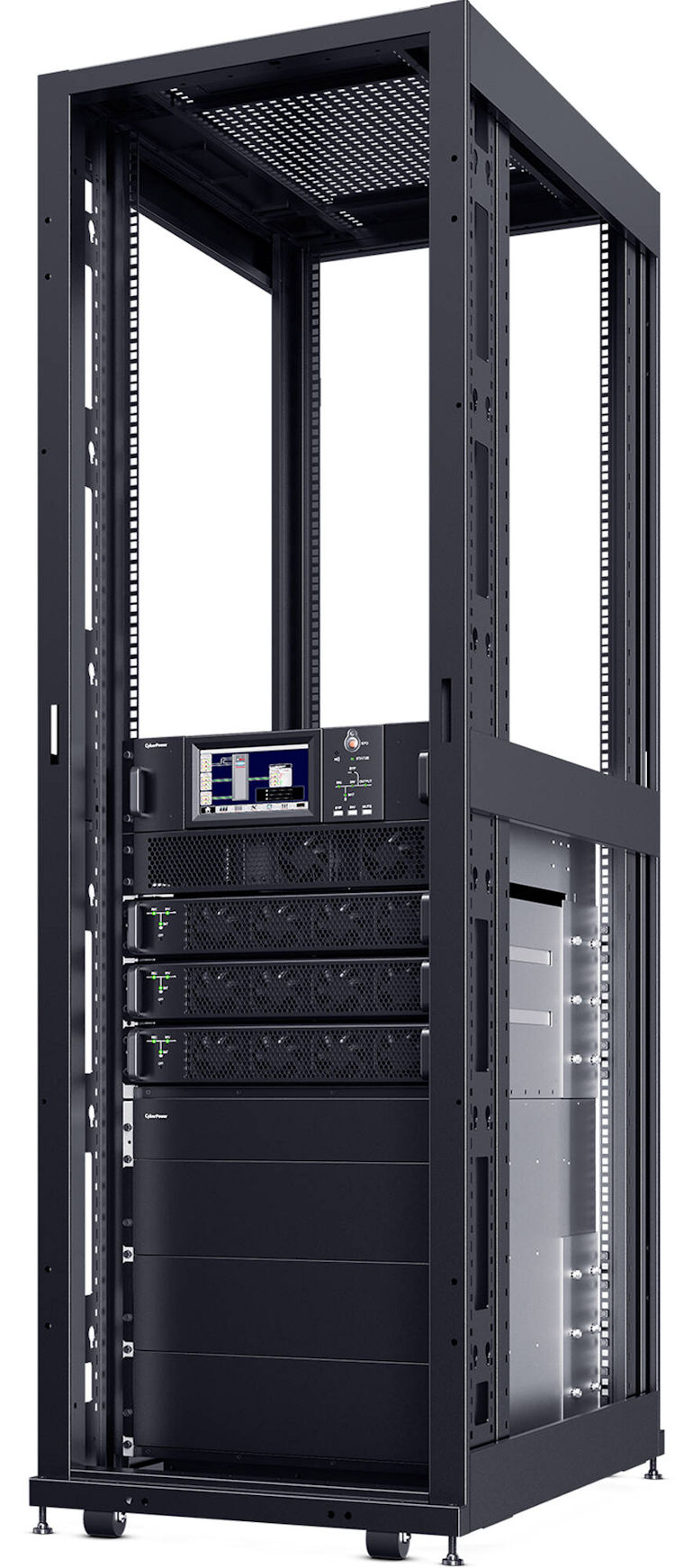

Furthermore, it can be configured for either 208/120V or 220/127V AC output, producing a clean sine wave that supports stable operation across a wide range of connected systems. Its 11U rack-mountable modular cabinet makes it a practical fit for modern infrastructure.
This is particularly useful for setups requiring both power density and efficient space utilization.

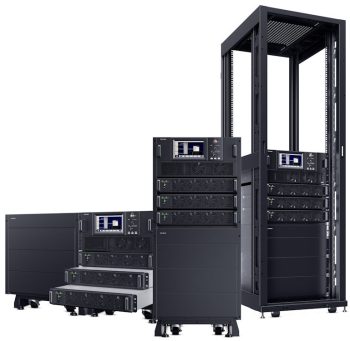

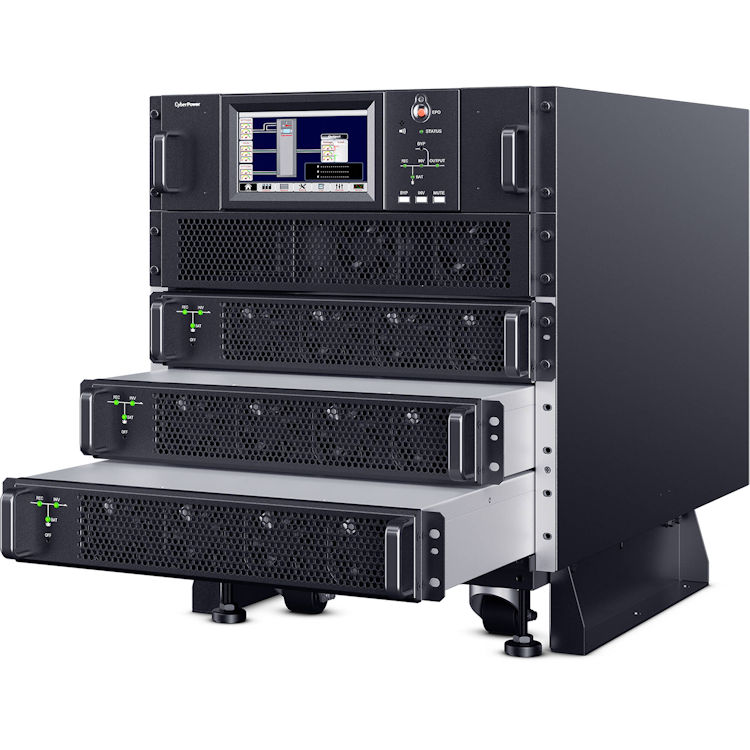

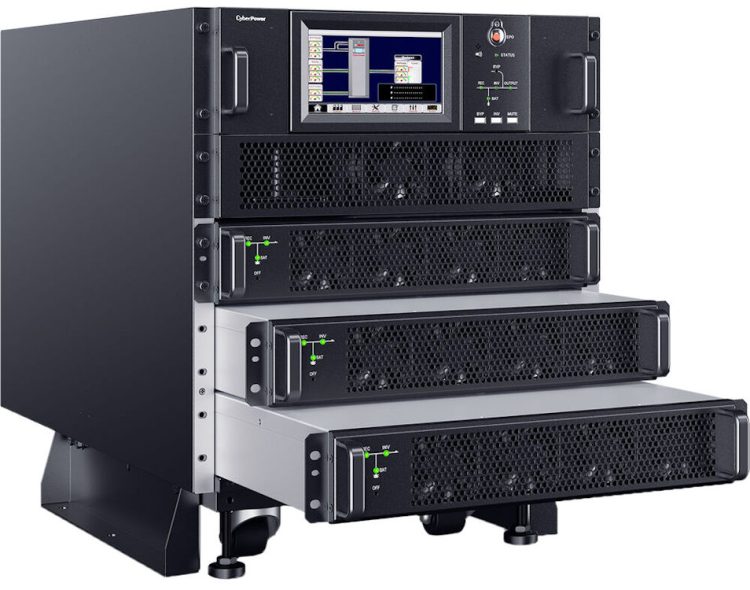

At the heart of the system are high-density 10kW power modules, each occupying just 2U of space. This compact modular design allows organizations the flexibility to scale capacity as needs grow.
Meanwhile, it helps maintain an organized and space-conscious installation. The system also supports highly configurable redundancy options, including N+1 power module redundancy or N+N total system redundancy.
These options help safeguard critical loads even in the event of a module failure.
The SM020KAMFA is engineered for maximum serviceability and minimal disruption. Hot-swappable power modules, batteries, and bypass architectures allow maintenance or hardware replacement without taking critical equipment offline. Consequently, this makes it an excellent choice for facilities that cannot afford downtime. It offers a UPS solution designed for continuous availability and rapid recovery.
Battery performance and longevity are further enhanced through a specialized 3-stage charging process and battery equalization technology. These features help reduce thermal stress and extend battery shelf life. As a result, they support long-term reliability and lower maintenance concerns. For administrators, the included pre-installed CyberPower RMCARD205 enables remote SNMP, HTTP, and Modbus monitoring. This makes it easy to manage and oversee the system from virtually anywhere.

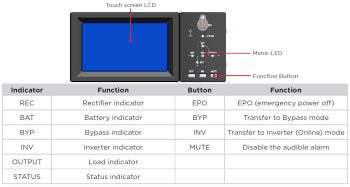

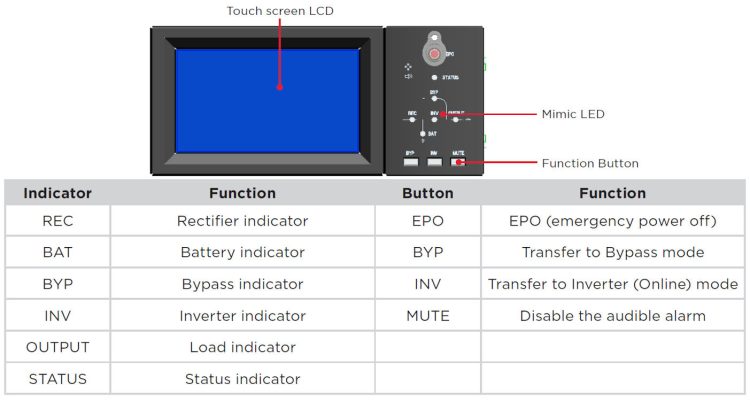

A tiltable 7-inch color LCD touch matrix display adds another layer of convenience. It offers real-time system alerts, event logs, and operational controls in a clear, intuitive interface. From installation to daily management, the CyberPower SM020KAMFA combines advanced modular architecture, intelligent monitoring, and robust redundancy. Therefore, it delivers premium power protection for the most demanding professional environments.
| General | |
| Dual Power Inputs | Yes |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| Hot Swappable Bypass Module | Yes – Qualified Personnel Only |
| Hot Swappable Power Module | Yes – Qualified Personnel Only |
| Module Maximum Capacity | 3 |
| Parallel Expansion (Max. Units) | 2 |
| Power Module Redundancy Capability | Yes |
| UPS Topology | Online Double Conversion |
| Battery | |
| Battery Bus Voltage | Nominal: ±120VDC, one-side range: 120VDC – 132VDC |
| Battery Cabinet | Modular External |
| Charger Voltage Tolerance | ≤1% Float |
| Extended Battery Module | BCT3L9N125 |
| Hot Swappable | Yes |
| Hot Swappable Battery Module | Yes – Qualified Personnel Only |
| Recharge Power | Default 10% x UPS Power |
| Recharge Power (Selectable) | 1 % – 20 % |
| Replacement Battery Cartridge Quantity | 6 |
| Ripple Current | ≤5% C10 |
| Ripple Voltage | ≤1% VDC Float |
| Temperature Compensation (Per Cell) | -3 mV/°C |
| Input | |
| Backfeed Protection | Yes |
| Bypass Input Voltage Range | -20 % – 15 % |
| Bypass Input Voltage Range (Selectable) | Lower limit: -10%, -20%, -30%, -40% Higher limit: +10%, +15%, +20%, +25% |
| Bypass Overload Protection | 110% – 130% Load for 5 Min 130% – 150% Load for 1 Min >150% Load for 300ms |
| Bypass Rated Current | 55.6A@ 208V |
| Bypass frequency tolerance (Default) | ±10% |
| Bypass frequency tolerance (Selectable) | ±2.5%, ±5%, ±10%, ±20% |
| Bypass to Inverter Switch Time | Synchronized switch: ≤1ms |
| Current rating of bypass neutral cable (A) | 1.7 x Input Rated Current |
| Input Connector | Hardwire (L1, L2, L3, N, G) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Power Factor | 0.99 |
| Input Voltage | 208/120V 220/127V |
| Input Voltage Range | 187 VAC – 260 VAC |
| Phase | 3 Phase |
| Synchronization Window | Rated frequency: ±2Hz |
| Synchronization Window (Selectable) | ±0.5Hz – ±5Hz |
| THDI | < 4% (Full Linear Load) |
| Output | |
| Automatic Voltage Regulation | ±1 (Balanced Load) ±1.5 (100% Unbalanced Load) |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Efficiency | 92.5% (Battery Mode) 93% (Normal Mode) |
| Harmonic Distortion | < 1.5% at Linear Load < 6% at Non-Linear Load |
| Maintenance Bypass | Yes |
| Max Change Rate of Synch Frequency | 1 Hz/s |
| Max Change Rate of Synch Frequency (Selectable) | 0.1–5 Hz/s |
| Maximum Capacity (VA) | 20000 VA |
| Maximum Watts Capacity | 20000 W |
| Neutral Current Capability | 170 % |
| Non-Linear Load Capability | 100 % |
| On AC WaveForm | Sine Wave |
| Outlet Type | 1 – Hardwire Terminal Block |
| Output Connector | Hardwire (L1, L2, L3, N, G) |
| Output Frequency | 50/60 Hz (auto-sensing/configurable) |
| Output Power Factor | 1 |
| Output Voltage | 208/120V 220/127V |
| Output Voltage Range | ±5% VAC |
| Overload Protection | 110% Load for 10 min 125% Load for 1 min 150% load for 30 sec >150% Load for 200 ms |
| Short Circuit Protection | 300% – 200ms |
| Synchronization Window (Rated ) | ±2Hz |
| Synchronization Window (Selectable) | ±1Hz – ±5Hz |
| Transient Voltage Response | ±5% |
| Typical Transfer Time | 0 ms |
| VA | 20000 VA |
| Watts | 20000 W |
| Management & Communications | |
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| LCD | Multifunction LCD Touch Screen Color |
| LED Indicators | Rectifier Battery Mode Bypass Mode Inverter Load Status |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | 1 RS232 1 RS485 |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Modular |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 11U |
| Dimensions | |

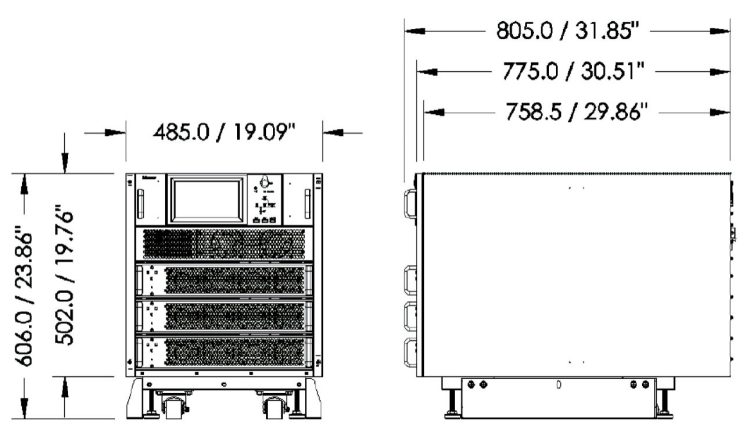

| Physical Dimensions – (WxHxD) (in) | 19.1 inches (0.49 m) x 23.9 inches (0.61 m) x 30.5 inches (0.77 m) |
| Physical Weight | 133.8 lb (60.69 kg) |
| Dimensions – Shipping | |
| Shipping – Weight | 202.75 lb (91.97 kg) |
| Shipping Dimensions – (WxHxD) (in) | 24.88 inches (0.63 m) x 31 inches (0.79 m) x 40.25 inches (1.02 m) |
| Dimensions – Power Module | |
| Power Module – Rack Units | 11U |
| Environmental | |
| Audible noise at 1 m from the surface of the unit | 56 dBA |
| Ingress Protection | IP20 |
| Maximum Air Exchange | 3.02 m³/min |
| Online Thermal Dissipation | 5732.16 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32°F (0°C)–104°F (40°C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 °F (-20 °C)– 158 °F (70 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cTUVus UL1778, CSA C22.2 No. 107.3-14 CFR 47 FCC Part 15, Subpart B, Class A IEC62040-2 |
Additional information
| Weight | 140 lbs |
|---|---|
| Dimensions | 27 × 34 × 43 in |
