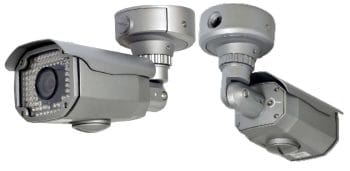

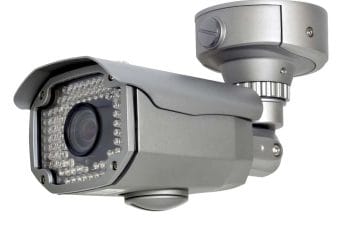

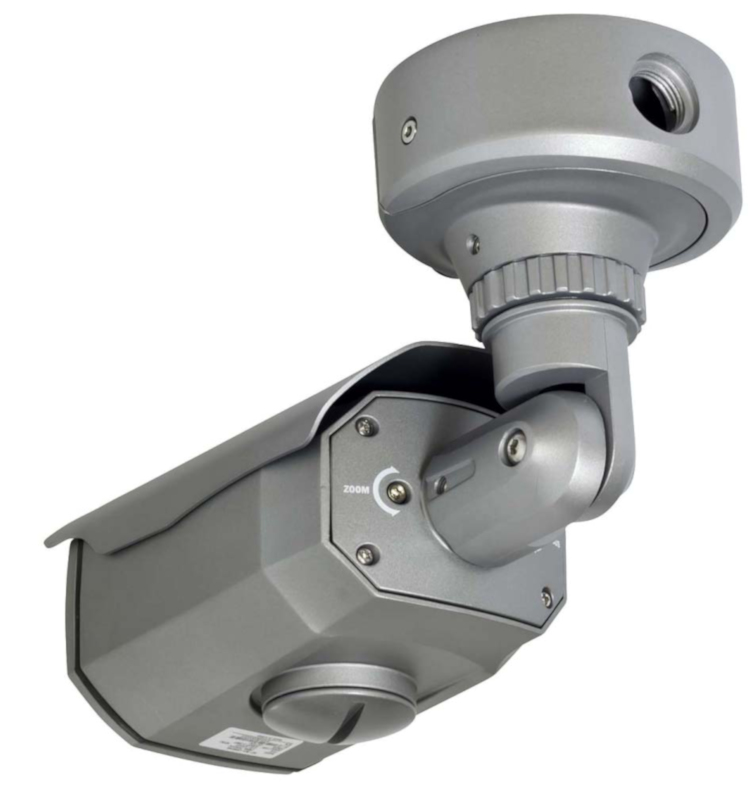

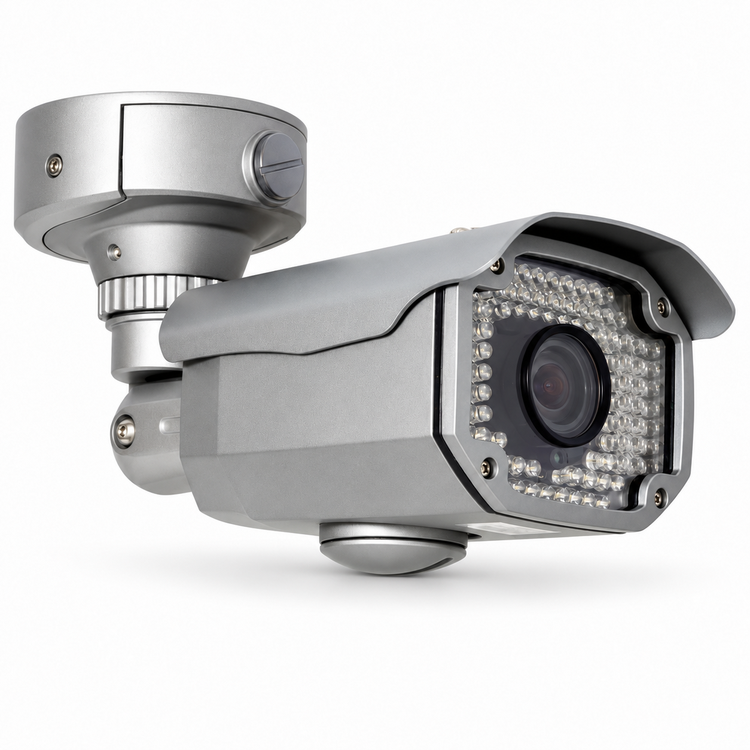

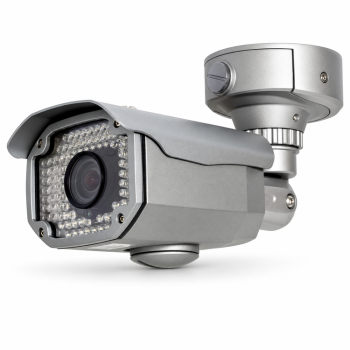

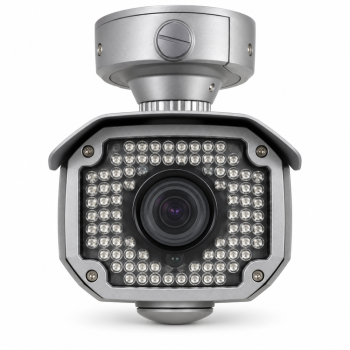

Eyemax UIR-2282V-S 2MP EX-SDI IR Bullet Camera
- 2MP 1080p Sony CMOS video
- Selectable EX-SDI and HD-SDI output
- 2.8–12 mm auto-iris varifocal lens
- 80 infrared LEDs and IP68 outdoor housing
- NDAA compliant and made in Korea
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Eyemax UIR-2282V-S is a 2MP IR bullet camera built as an HD-SDI outdoor security camera. This Eyemax outdoor bullet camera uses a 1/2.9-inch Sony CMOS sensor to record 1080p images. Furthermore, the 2.8–12 mm auto-iris varifocal lens gives installers control over the viewing angle. They can cover a wide area or focus on a smaller point of interest.
The UIR-2282V-S EX-SDI camera supports EX-SDI and HD-SDI video output. Therefore, installers can match it with a range of compatible coaxial systems. It fits installs as well as updates to systems. It works with a balun for video runs over long cable paths. In addition, dual-power support gives installers more choices when they plan the power layout.
For night viewing, the Eyemax UIR-2282V-S EX-SDI camera uses 80 infrared LEDs. It changes from color to black-and-white video as the light level falls. Meanwhile, digital noise reduction helps keep the picture clean. Automatic white balance helps keep colors natural. SENS-UP and Smart IR also help improve detail in dark scenes.
The HD-SDI outdoor security camera, the Eyemax UIR-2282V-S, has an IP68 rating. As a result, its case can handle outdoor sites and harsh weather. The camera is also NDAA compliant and made in Korea. Thus, it can support jobs that call for approved sourcing and build quality.
This Eyemax outdoor bullet camera combines 1080p video, an adjustable lens, infrared light, and coaxial support in one camera. For example, it can serve stores, warehouses, parking areas, gates, and building entrances. Its bullet-style case also makes aiming simple during setup.
Collsam Security supplies this 2MP IR bullet camera for professional security projects. However, the UIR-2282V-S is currently out of stock for new customer orders. Its product details remain available for project planning and compatible-system reference.
| Resolution | HD-SDI (1080P, 720P) / 1000 TV LINES OVER |
| Sensor | 1/ 3 INCH SONY CMOS |
| Total Pixels | 2010(H) × 1108(V) = 2,227,080 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/ N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (HD-SDI) / CVBS: 1.0Vp-p (75ohm) |
| Min.Illumination | 0 Lux at IR On |
| White Balance | AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic shutter speed | AUTO / Manual (1/ 30sec ~ 1/ 60,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2 / × 3 / × 4 |
| DNR | OFF / LOW / MIDDLE / HI |
| WDR/ BLC | OFF / WDR / BLC |
| HLM | OFF / SET |
| ACE | OFF / ON |
| Day & Night | AUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN, MDIR |
| Smart IR | OFF / ON |
| Privacy | OFF / ON (31 Zone) |
| Motion Detection | OFF / ON |
| D.ZOOM | 0 ~ × 127 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Image Conversion | OFF / ON |
| Language | ENGLISH |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| COMM. | RS-485(PELCO-D) |
| Operating Temperature/ Humidity | 14°F (-10 °C) ~ 122°F (50°C) / 30% ~ 80% RH |
| Storage Temperature/Humidity | -4 °F (-20 °C) ~ 140°F (60°C) / 20% ~ 90% RH |
| Power | DC12V Only |
| Signal | 328ft (99.97 m) ~ 492ft (149.96 m) (Max transmission range depends on the cable manufacturer and the installation environment.) |
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 18 × 8 × 8 in |
