-17%

UIR-M2344V-B

Upgrade your surveillance system with Eyemax UIR-M2342V-B EX-SDI IR Bullet camera. 2MP, 8 COB IR, 2.8-12mm lens, IP68 Ingress Protection, DNR, WDR, and more. Order now from Collsam Distribution.

UIR-M2344V-B

Original price was: $299.95.Current price is: $248.95.

In stock

Original price was: $299.95.Current price is: $248.95.

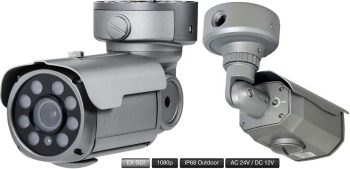

Eyemax UIR-M2344V-B 2Megapixel 1080p IR Bullet EX-SDI Camera 2.8-12 mm motorized, Auto-Iris, 30 Meter Infrared, 24v AC/12v DC, IP68, CVBS.

  • 1/2.9 inch SONY CMOS (IMX-222 • IMX-322)
  • Extended Serial Digital Interface
  • 0 Lux at IR On (IR LED 08pcs)
  • Upgraded Waterproof Housing (IP 68 rating)
  • DNR (Digital Noise Reduction)
  • Digital WDR (Wide Dynamic Range)
  • Day & Night (ICR Option)

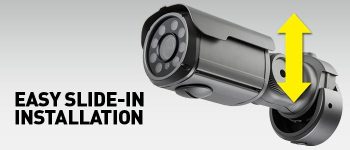

  • Easy Installation
  • ICR V/F lens
  • DC Auto IRIS V/F Lens
  • DC Auto IRIS & TDN V/F Lens
  • Auto Focus Motorized 2.8~12 mm Vari-focal Lens
Eyemax Logo

Description

Eyemax UIR-M2344V-B EX-SDI 1080p IR Bullet Camera With 8 COB IR Motorized AVF Lens Dual Power

The UIR-M2344V-B HD Over Coax camera now represents a cost-effective solution for transmitting HD video without the complexity of IP. EX-SDI can use existing RG59 coax, so you don’t have to buy new cable if you have an analog system.

Unlike IP, there is no extra training required, no complex networks to set up, and no bandwidth issues. All analog installers already know the fundamentals of installing a UIR-M2344V-B coax-based Camera. Get the same high-resolution benefit of an IP megapixel system, but without the headache.

Both HD-SDI and EX-SDI offer best in class image quality. They are pure digital signal formats, and there is no degradation of the video image over distance.

In addition to an EX-SDI/HD-SDI digital BNC output, UIR-M2344V-B EX-SDI cameras also come equipped with an analog BNC output, ideal for use with analog test monitors or existing analog DVRs. New for 2020, select Eyemax UIR-M2344V-B 2MP EX-SDI cameras now feature a selectable HD Analog output for additional system flexibility.

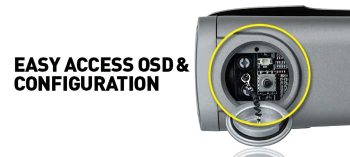

Up the Coax Control (UCC) allows the installer to make UIR-M2344V-B camera OSD menu changes remotely through the DVR via the UCC equipped DVR channel. UCC technology reduces site visits and extra trips up the ladder, making service calls a breeze!

Unlike HD Analog technology (HD-TVI, HD-CVI, and AHD), EX-SDI is a 100% digital signal, making it less susceptible to noise, interference, and image degradation over distance. Eye

Signal Transmission The distant difference occurs according to cable option and other circumstances.
Based on 5C-HFBT Cable: HD-SDI 656.17 ft (200 m)/ EX-SDI 1312.34 ft (400 m)

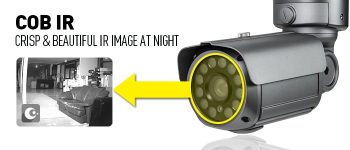

Chip on Board (COB) LEDs are basically multiple LED chips (typically nine or more) bonded directly to a substrate by the manufacturer to form a single module.





Datasheet

Download

Upgrade your surveillance system with Eyemax UIR-M2342V-B EX-SDI IR Bullet camera. 2MP, 8 COB IR, 2.8-12mm lens, IP68 Ingress Protection, DNR, WDR Datasheet, and more. Order now from Collsam Distribution.

Resolution1080P, 720P
Sensor1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemPROGRESSIVE
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) (TVI : OPTION)
Min. IlluminationIR PRODUCT : 0 Lux at IR On 1 Lux at F1.2 / 0.1 Lux (B/W)
White BalanceAUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speedAUTO / MANUAL (1/30sec ~ 1/30,000sec) / Flicker
SENS_UPOFF / × 2 / × 4 / × 8 / × 16 / × 32
DNROFF / LOW / MIDDLE / HIGH
BACKLIGHTOFF / WDR / BLC / HLC
ACEOFF / LOW / MIDDLE / HIGH
Day & NightAUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN
PRIVACY / FLIP / FREEZEOFF / ON
MOTION / DEFOGOFF / SET
D.ZOOMx1.0 ~ × 16.0
LanguageENG, CHN, CHN(S), JPN, KOR
Sharpness / BrightnessADJUSTABLE (Sharpness : 0 ~ 10 STEP / Brightness : 0 ~ 20 STEP)
COMM.RS-485(PELCO-D)
Temperature/HumidityOperating 14 °F (-10 °C) ~ 122 °F (50 °C)/ 30% ~ 80% RH)

Storage (-4 °F (-20 °C) ~ 140 °F (60 °C)/ 20% ~ 90% RH)

PowerAC24V / DC12V Dual Power
signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))

Additional information

Weight4 lbs

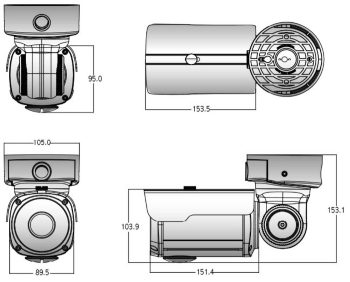

Dimensions14 × 6 × 8 in
