XDL-202V
Original price was: $109.99.$66.95Current price is: $66.95.

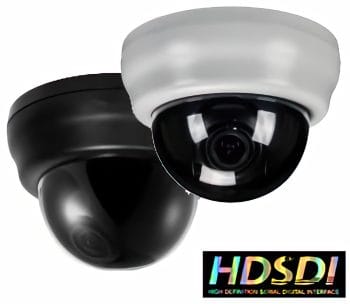

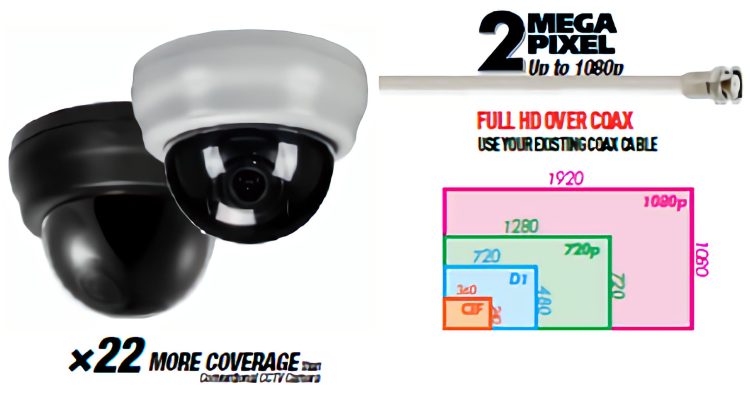

Eyemax XDL-202V HD-SDI (1080P, 720P), 2.8-12 mm Varifocal Lens Indoor Dome Camera
- 1-3 Inch SONY CMOS Sensor Progressive Scanning System to provide a crystal clear image
- Minimum Illumination 1 Lux at F1.2 and 0.1 Lux Black and White
- Day and Night AUTO (Day ≤≥ Night TIME Change), COLOR, Black and White Smart IR, Digital Zoom
- HD-SDI 1080P/720P video output
- Varifocal lens with 2.8-12 mm focal length
- Minimum illumination of 1 lux F1.2 and 0.1 lux black and white
- High-quality HD-SDI video output
- Great low-light performance with the minimum illumination of 1 lux F1.2 and 0.1 lux black and white
- Improved image clarity and color accuracy with DNR, WDR, BLC, HLM, ACE, and white balance
- Versatile day and night auto mode, color, black and white Smart IR, and digital zoom to suit different needs
- More reliable power supply with dual power capability DC12V ±10% and DC12V AC24V ±10%
- Description
- Product Documents
- SPECIFICATIONS
- Additional information
- Collsam Brands
- Reviews (0)
Description
Eyemax XDL-202V is the best indoor dome camera you can get. The Eyemax XDL-202V is top-notch and will do its job. 1080P HD-SDI, a Sony CMOS sensor, and a low brightness of 1 lux at F1.2 and 0.1 lux in black and white enable HD surveillance.
You can zoom in with the XDL-202V 2.8-12 mm varifocal lens and be sure that no details will be lost. This camera’s resolution of more than 1000 TV lines makes it great for people who need to see faces or important details from far away.
You won’t miss anything thanks to the Eyemax XDL-202V’s progressive scanning system, which guarantees quick and precise image capture. This camera also has numerous advanced features to help you get the most out of your surveillance system. With DNR, WDR, BLC, HLM, ACE, and white balance settings, you can get the best recording quality regardless of the lighting.
The Eyemax XDL-202V also features a day and night mode, so you can always capture clear images, no matter the time of day. For more options, the camera can be powered by both DC12V ±10% and AC24V ±10%. Smart IR and digital zoom features help you get even more out of your monitoring system.
This is the best indoor dome camera you can get. The Eyemax XDL-202V will not let you down. With a clear image, fast recording, and powerful features, this camera is sure to give you the protection you need.
| Resolution | HD-SDI(1080P, 720P) / 1000 TV LINE OVER |
| Sensor | 1/3 INCH SONY CMOS |
| Total Pixels | 2010(H) × 1108(V) = 2,227,080 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75 ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30 sec ~ 1/60,000 sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2 / × 3 / × 4 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| WDR/ BLC | OFF / WDR / BLC |
| HLM | Off or SET |
| ACE | OFF / ON |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/ W |
| Smart IR | OFF / ON |
| Privacy | OFF / ON (31 Zone) |
| Motion Detection | OFF / ON |
| D.ZOOM | 0 ~ × 127 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | ENGLISH |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| Image Conversion | OFF / ON |
| Operating Temperature/ Humidity | 14 °F (-10°C) ~ 122 °F (50 °C) / 30% ~ 80% RH |
| Storage Temperature/ Humidity | -4°F (-20°C) ~ 140 °F (60 °C) / 20% ~ 90% RH |
| Power | DC12V ±10% Only / DC12V AC24V ±10% DualPower (option) |
| Signal Transmission | 328 ft (99.97 m) ~ 492 ft (149.96 m)(Max transmission range is depends on the cable manufacturer and the installation environment.) |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Color | Black, White |
