UIB-B4322
Price range: $63.95 through $65.95

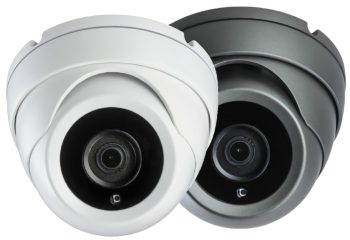

Eyemax UIB-B4322 4Megapixel EX-SDI Outdoor IR Eyeball Camera, Fixed Lens, 60ft (18.29 m) IR Range
- Advanced 4MP-1080P EX-SDI technology to ensure ultra-high resolution;
- Flexible analog output selectable for comprehensive surveillance solutions;
- 1/2.7″ CMOS Sensor for clear and detailed images;
- UCC Support to provide customers with comprehensive connection options;
- ICR for vivid images in color and black & white in any climate;
- 20~25m IR Distance for effective night vision;
- HU function for noise reduction and ensuring optimal exposure;
- 3D DNR feature for improved image clarity;
- SENS-UP to efficiently compensate for light conditions;
- DC 12V for reliable power supply;
- 2.8mm or 3.6mm Fixed lens for easy installation;
- IP66 rated weather-resistant for outdoor installation;
- Compact 0 3.7″Size for discreet surveillance;
- Gray Or White Color.
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Eyemax UIB-B4322. With its advanced features and robust design, this camera is perfect for ensuring the safety and security of your property.
This camera has a small sensor called a 1/2.7 CMOS that can take clear pictures and videos at 4 Megapixels. This makes it easier to identify people and objects if there is anything suspicious. The camera also comes with a 2.8mm megapixel fixed lens that covers a large area.
The Eyemax UIB-B4322 also features advanced technology such as UCC support, ICR, and IR cut filter. These features work together to enhance the camera’s performance in various lighting conditions, providing excellent image quality day or night. The camera is visible from 65 feet (19.81 meters) to 82 feet (24.99 meters) away, so it can be seen even in dark places.
This camera has True WDR support, which makes for better image quality in high-contrast lighting situations. Clear and accurate footage can be captured even in challenging lighting conditions, providing you with the most reliable surveillance possible.
The Eyemax UIB-B4322 also boasts a multitude of advantageous features, such as HLI, 3DDNR, Sense-Up, BLC, Mirror, FLIP, ACE, Privacy, and Motion Detection. These features provide customizable options for optimizing the camera’s performance and ensuring that you capture the most relevant footage. The IP66 water and dust resistance of this camera makes it suitable for use in both indoor and outdoor settings.
In summary, the Eyemax UIB-B4322 is an exceptional security camera designed to deliver top-notch performance and reliability. With its high-resolution sensor, advanced features, and durable design, this camera is an excellent investment for any security system. You can secure your home, office or commercial property with the Eyemax UIB-B4322.
| Image Sensor | 1/2.7” 6 Megapixel Sensor |
| Effective Pixels | 4.0 Megapixels |
| Built-in Lens | 2.8mm or 3.6mm 5Megapixel Lens |
| Signal System | PAL/NTSC |
| Horizontal Resolution | PAL:2560 × 1440P 25F/S |
| NTSC:2560 × 1440P 30F/S | |
| Sync. System | Internal Sync. |
| Sensor Area | 38mm × 38mm |
| Video Output | EX-SDI2.0 and CVBS Output, switch on HD-SDI and EX-SDI Output |
| S/N Ratio | More than 50dB (AGC OFF) |
| OSD Menu | Support |
| White Balance | Auto-Tracking White Balance |
| Shutter Speed | 1/25 ~ 50,000Sec. |
| LEDs | 2 white array LEDs |
| Working Temperature | 14 °F (-10 °C) ~ 122 °F (50 °C) |
| Storage Temperature | -4 °F (-20 °C) ~ 140 °F (60 °C) |
| Power Requirement | DC12V, Max Power consumption Less Than 3W (When the infrared lamps turn on) |
| Weight | 0.77 lb (0.35 kg) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Color | Gray, White |
| Focal Length: | 2.8 mm, 3.6 mm |
