UVL-P404V-WW
Original price was: $248.99.$144.95Current price is: $144.95.

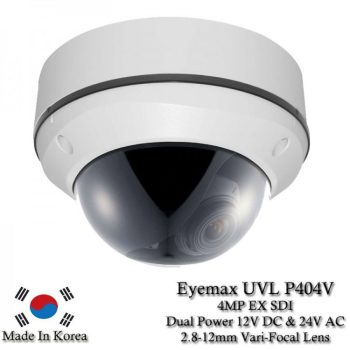

Eyemax UVL-P404V-WW 4 Megapixels EX-SDI/HD-SDI STORM® IR IP68 Vandal-Resistant Dome Camera with Varifocal Lens, Dual Power
- 1/2.9” SONY CMOS (IMX-326)
- Waterproof housing with an IP68 ingress protection rating
- High-Definition Serial Digital Interface
- 1 LUX at F1.2 and 0.1 LUX black and White minimum illumination
- True WDR (Wide Dynamic Range)
- DNR (Digital Noise Reduction)
- Day and Night (ICR Option)
- ICR varifocal lens
- DC Auto IRIS varifocal Lens
- DC Auto IRIS and TDN varifocal lens
- 2.8-12 mm varifocal lens
- Description
- Attachment
- Speciifications
- Additional information
Description
Eyemax UVL-P404V-WW Dome Camera, the ultimate solution for high-definition surveillance needs. Equipped with a powerful 4 megapixels, 1080p 1/2.9” SONY CMOS (IMX-326) sensor, this camera captures every detail with exceptional clarity. With HD-SDI (High-Definition Serial Interface) and EX-SDI technology, the camera guarantees quality-preserving transmission over a typical RG59 coaxial cable. This makes installation and maintenance hassle-free, saving both time and cost.
The 2.8-12 mm varifocal lens of the Eyemax UVL-P404V-WW provides unmatched versatility and convenience. You can easily adjust the field of view to monitor a specific area or cover a wider range. Thus, there are numerous indoor and outdoor uses for the camera.
It is made so that this Eyemax UVL-P404V-WW can stand up to the toughest conditions. Along with an outstanding IP68 ingress protection rating, its waterproof housing and vandal-resistant design ensure dependable performance in any weather. This means that there is no chance of damage when the camera is outside. This makes it suitable for use in high-risk areas where security is a top priority.
For instance, the Eyemax UVL-P404V-WW can take great pictures with only 1 Lux of light at F1.2 and 0.1 Lux of black and white light. The True WDR (Wide Dynamic Range) and DNR (Digital Noise Reduction) technologies make this possible. These technologies process images very well, giving them unmatched clarity and detail.
In addition, the camera features Day and Night capabilities, with IR capabilities to ensure clear footage in all lighting conditions.
The Eyemax UVL-P404V-WW is incredibly versatile and flexible in its power options. It features DC Auto IRIS and TDN Varifocal Lens Dual Power (AC 24V/DC 12V), making it suitable for a wide range of power sources. This allows for easy installation and integration into existing systems without the need for additional equipment.
| Resolution | 1440P, 1080P, 720P |
| Sensor | 1/2.9” SONY CMOS (IMX-326) |
| Total Pixels | 3096(H) × 2218(V) = 6.87M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE274M (EX-SDI, HD-SDI) |
| Min.Illumination | 1 LUX at F1.2 / 0.1 LUX Black and White |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / MOTION | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operating 14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH Storage -4 °F (-20 °C) ~ 140 °F (60 °C) / 20% ~ 90% RH |
| Power | AC24V / DC12V Dual Power |
| Signal Transmission | The distance difference occurred according to cableoptionsn and other circumstances. (based on 5C-HFBT : HD-SDI 100M / EX-SDI 1640.42 ft (500 m)) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
