UAC-D125-AF40M
Original price was: $189.00.$73.95Current price is: $73.95.

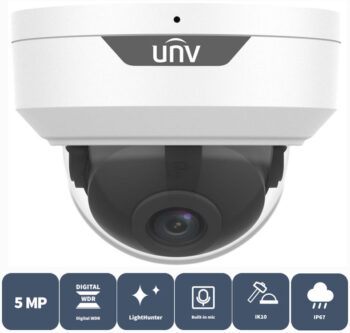

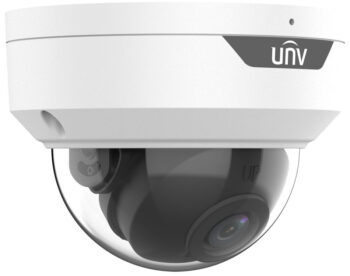

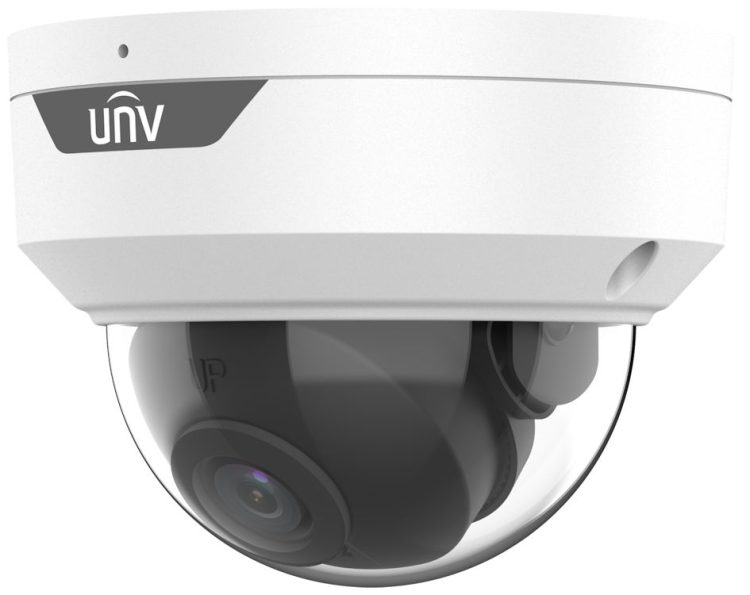

Uniview UAC-D125-AF40M 5MP IR Light Analog Dome 4.0mm
- High-quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Supports 180° horizontal/vertical flip
- OSD configuration menu, easy to operate
- Water- and dust-resistant (IP67) and vandal-resistant (IK10)
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
- Metal base and metal housing
- 3-Axis
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
Equipped with a high-sensitivity 1/2.7-inch CMOS sensor, this camera delivers stunning 5MP imaging with a maximum resolution of up to 2880×1620 pixels. This guarantees that your surveillance footage is clear and precise in capturing every detail.
The 4.0 mm fixed focal lens provides a diagonal field of view of 126.7°. It also offers a horizontal field of view of 109.1° and a vertical field of view of 60.9°. As a result, you get wider coverage and eliminate blind spots.
The Uniview UAC-D125-AF40M is universally adaptable across standard analog transmission standards. It supports TVI, AHD, CVI, and CVBS video formats. This means that you can easily upgrade your existing surveillance system without the need for additional hardware.
Additionally, the camera is equipped with LightHunter Technology, which optimizes image quality and clarity in ultra-low illumination environments. This is paired with an integrated infrared (IR) cut filter for clear day/night transitions. As a result, you have high-quality footage at all times.
In low-light environments, the UAC-D125-AF40M truly shines with its efficient IR illuminator, offering a low-light detection distance of up to 30 meters (approximately 100 feet (30.48 m)). This means that even in the darkest of areas, you can still have a clear and detailed view of your surroundings.
What’s more, this camera also comes with a built-in high-quality microphone. It supports synchronous audio and video transmission directly over standard coaxial cables.
The UAC-D125-AF40M is not only high-performing but also built to last. It is housed in a robust metal base and shell with standard 3-axis adjustment. This camera is fully dust- and water-resistant (IP67 rated) as well as vandal-resistant (IK10 rated). This makes it suitable for use in any environment, whether it’s indoor or outdoor.
With its durable construction and advanced features, the Uniview UAC-D125-AF40M is a reliable and long-lasting surveillance solution.
| Sensor | |
| Pixel | 5MP |
| Size | 1/2.7” |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Lens | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 91.3° V: 46.1° D: 109.6° |
| Illuminator | |
| Illuminator | One IR illuminator |
| Illumination distance | 30m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25 s-1/50000 s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | Four modes: Global (default), BLC, HLC, and DWDR |
| Day/Night | Three modes: Auto (default), Day, and Night |
| Noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -22°F to 140°F |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4 kV for power and video output interfaces |
| Ingress protection | IP67 |
| IK rating | IK10 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection, max 3.3W |
| Mount | Surface mount (default), optional tilted mounting bracket |

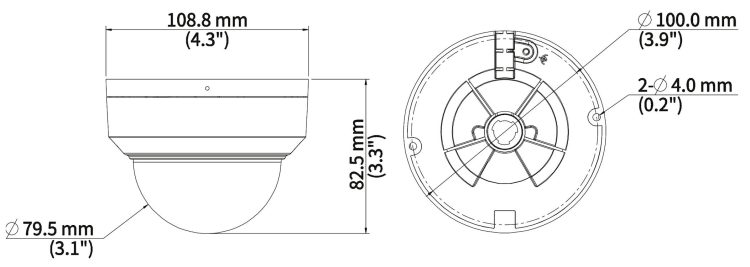

| Dimensions | Φ 4.3 inches (10.92 cm) x 3.3 inches (8.38 cm) (diameter x height) |
| Material | Metal |
| Weight | 0.82 lb |
| Certification | CB, CE, FCC, UL |
